VZV21L-UEMDKA (1988)
Toyota Camry (Jpp)

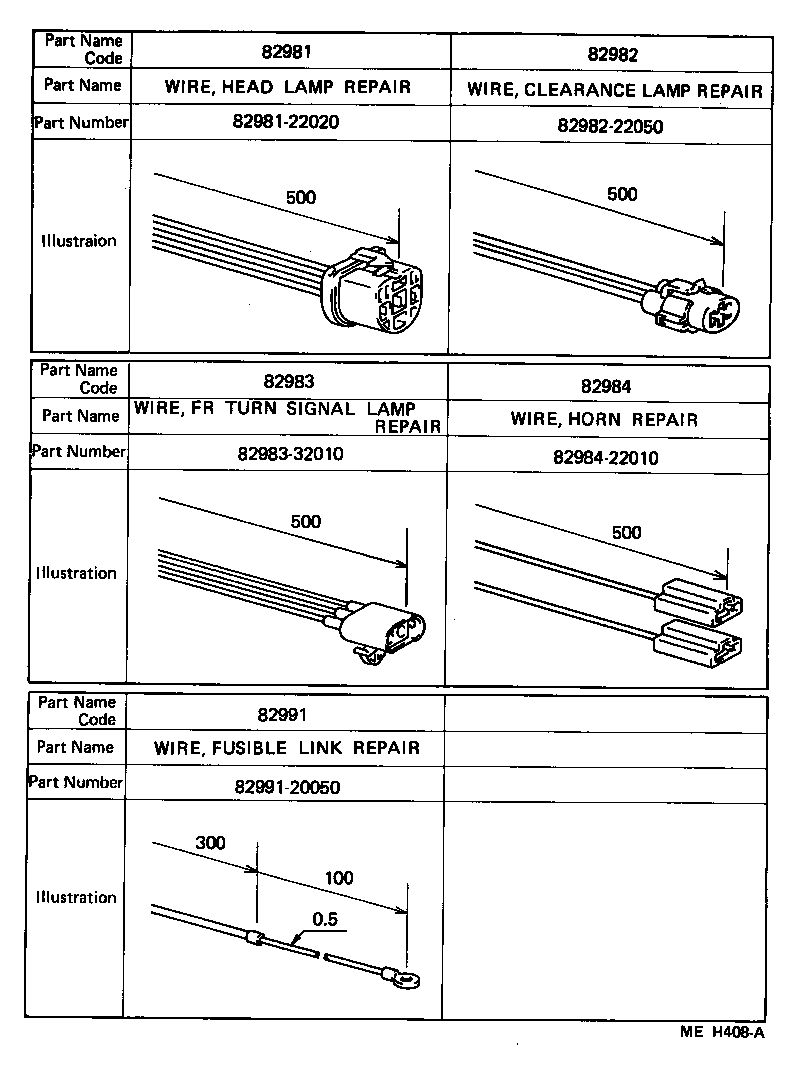

ILLUST NO. 4 OF 5(8808- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-22020 |
SV2#,VZV21 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22050 |
SV2#,VZV21 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-32010 |
SV2#,VZV21 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
SV2#,VZV21 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20050 |
SV2#,VZV21 |
1 | ||
| Common parts | ||||
| 82981-22020 | ||||
| 82982-22050 | ||||
| 82983-32010 | ||||
| 82984-22010 | ||||
| 82991-20050 | ||||

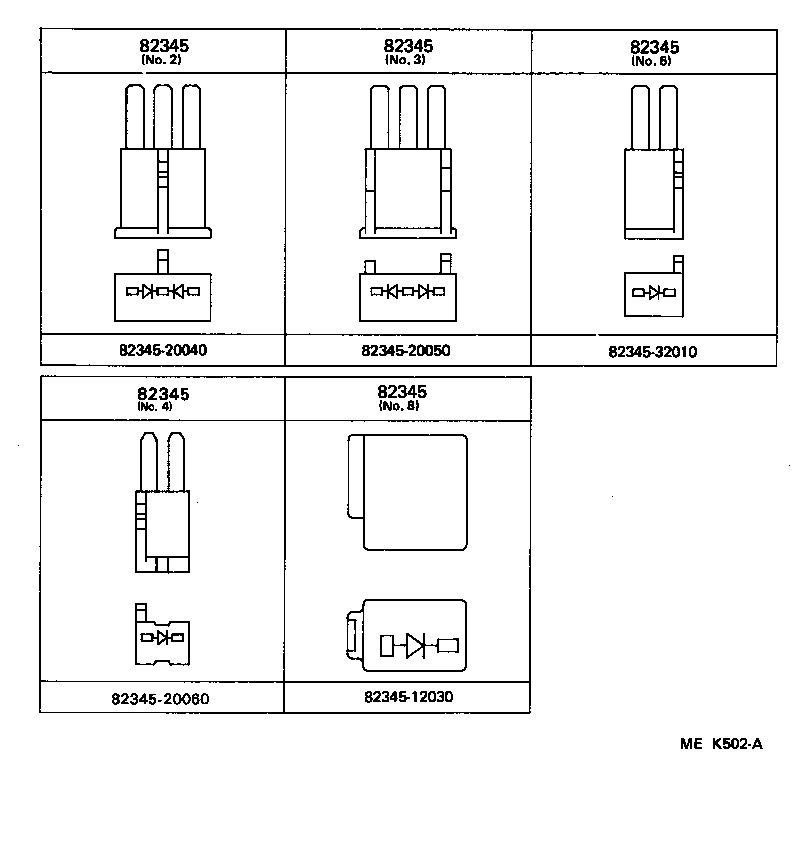

ILLUST NO. 5 OF 5(8808- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-20040 |
SV21..STD..USA;SV2#,VZV21..DX,LE COWL WIRE,NO.2 |
1 | ||
| 82345-12030 |
SV2#,VZV21..DX,LE COWL WIRE,NO.8 |
1 | ||
| 82345-20060 |
SV2#,VZV21..DX,LE COWL WIRE,NO.4 |
1 | ||
| 82345-32010 |
VZV21;SV25..LE;SV21..USA;SV21..LE..CND;SV25..DX..USA COWL WIRE,NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
SV21..STD..USA;SV2#,VZV21..DX,LE COWL WIRE,NO.2 |
1 | ||
| 82345-12030 |
SV2#,VZV21..DX,LE COWL WIRE,NO.8 |
1 | ||
| 82345-20060 |
SV2#,VZV21..DX,LE COWL WIRE,NO.4 |
1 | ||
| 82345-32010 |
VZV21;SV25..LE;SV21..USA;SV21..LE..CND;SV25..DX..USA COWL WIRE,NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
SV21..STD..USA;SV2#,VZV21..DX,LE COWL WIRE,NO.2 |
1 | ||
| 82345-12030 |
SV2#,VZV21..DX,LE COWL WIRE,NO.8 |
1 | ||
| 82345-20060 |
SV2#,VZV21..DX,LE COWL WIRE,NO.4 |
1 | ||
| 82345-32010 |
VZV21;SV25..LE;SV21..USA;SV21..LE..CND;SV25..DX..USA COWL WIRE,NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
SV21..STD..USA;SV2#,VZV21..DX,LE COWL WIRE,NO.2 |
1 | ||
| 82345-12030 |
SV2#,VZV21..DX,LE COWL WIRE,NO.8 |
1 | ||
| 82345-20060 |
SV2#,VZV21..DX,LE COWL WIRE,NO.4 |
1 | ||
| 82345-32010 |
VZV21;SV25..LE;SV21..USA;SV21..LE..CND;SV25..DX..USA COWL WIRE,NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
SV21..STD..USA;SV2#,VZV21..DX,LE COWL WIRE,NO.2 |
1 | ||
| 82345-12030 |
SV2#,VZV21..DX,LE COWL WIRE,NO.8 |
1 | ||
| 82345-20060 |
SV2#,VZV21..DX,LE COWL WIRE,NO.4 |
1 | ||
| 82345-32010 |
VZV21;SV25..LE;SV21..USA;SV21..LE..CND;SV25..DX..USA COWL WIRE,NO.6 |
1 | ||
| Common parts | ||||
| 82345-12030 | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-20060 | ||||
| 82345-32010 | ||||

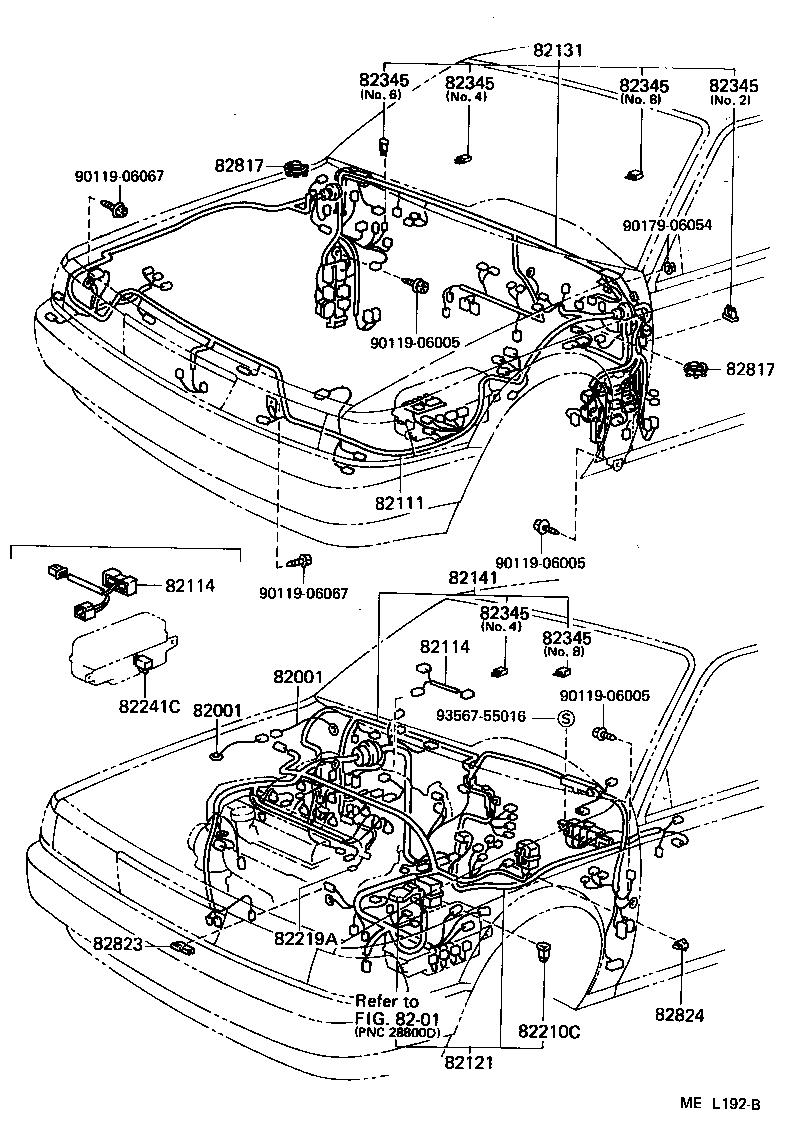

ILLUST NO. 1 OF 5(8808- )VZV21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07287 |
SV2#,VZV21 SUSPENSION TOWER |
1 | ||
| 90980-07270 |
VZV21 ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07287 |
SV2#,VZV21 SUSPENSION TOWER |
1 | ||
| 90980-07270 |
VZV21 ENGINE |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-32310 |
SV2#,VZV21..SED W(CRUISE CONTROL) |
1 | ||
| 82111-32311 |
SV2#,VZV21..SED..USA W(CRUISE CONTROL) |
1 | ||
| 82111-32301 |
SV2#,VZV21..SED..USA |
1 | ||
| 82111-32300 |
SV2#,VZV21..SED |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32080 |
VZV21 |
1 | ||
| 82114-32081 |
VZV21..DX E/G ROOM J/B NO.2 |
1 | ||
| 82114-32070 |
VZV21..DX HEATER |
1 | ||
| 82114-32081 |
VZV21..USA E/G ROOM J/B NO.2 |
1 | ||
| 82114-32080 |
VZV21..DX E/G ROOM J/B NO.2 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-32080 |
VZV21 |
1 | ||
| 82114-32081 |
VZV21..DX E/G ROOM J/B NO.2 |
1 | ||
| 82114-32070 |
VZV21..DX HEATER |
1 | ||
| 82114-32081 |
VZV21..USA E/G ROOM J/B NO.2 |
1 | ||
| 82114-32080 |
VZV21..DX E/G ROOM J/B NO.2 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-3H160 |
VZV21..5F |
1 | ||
| 82121-3H163 |
VZV21..5F |
1 | ||
| 82121-3H164 |
VZV21..5F |
1 | ||
| 82121-3H162 |
VZV21..5F |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-3H540 |
SV2#,VZV21..DX..USA |
1 | ||
| 82131-3H550 |
SV2#,VZV21..DX..USA W(POWER WINDOW) OR W(MOON ROOF) |
1 | ||
| 82131-3H541 |
SV2#,VZV21..DX..USA |
1 | ||
| 82131-3H551 |
SV2#,VZV21..DX..USA W(POWER WINDOW) OR W(MOON ROOF) |
1 | ||
| 82131-3H543 |
SV2#,VZV21..DX..USA |
1 | ||
| 82131-3H553 |
SV2#,VZV21..DX..USA W(POWER WINDOW) OR W(MOON ROOF) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-32270 |
SV2#,VZV21..SED..5F..DX..USA |
1 | ||
| 82141-32272 |
SV2#,VZV21..5F..DX..USA |
1 | ||
| 82141-32271 |
SV2#,VZV21..5F..DX..USA |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
SV2#,VZV21 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08188 |
SV2#,VZV21 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08253 |
SV2#,VZV21 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08203 |
SV2#,VZV21 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08189 |
SV2#,VZV21 40A,TERM.:FEMALE,GRN |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-32060 |
VZV21 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-32020 |
SV2#;VZV21..DX |
1 | ||
| 82241-32020 |
SV2#..USA;VZV21..DX |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
SV21..STD..USA;SV2#,VZV21..DX,LE COWL WIRE,NO.2 |
1 | ||
| 82345-12030 |
SV2#,VZV21..DX,LE COWL WIRE,NO.8 |
1 | ||
| 82345-20060 |
SV2#,VZV21..DX,LE COWL WIRE,NO.4 |
1 | ||
| 82345-32010 |
VZV21;SV25..LE;SV21..USA;SV21..LE..CND;SV25..DX..USA COWL WIRE,NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
SV21..STD..USA;SV2#,VZV21..DX,LE COWL WIRE,NO.2 |
1 | ||
| 82345-12030 |
SV2#,VZV21..DX,LE COWL WIRE,NO.8 |
1 | ||
| 82345-20060 |
SV2#,VZV21..DX,LE COWL WIRE,NO.4 |
1 | ||
| 82345-32010 |
VZV21;SV25..LE;SV21..USA;SV21..LE..CND;SV25..DX..USA COWL WIRE,NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
SV21..STD..USA;SV2#,VZV21..DX,LE COWL WIRE,NO.2 |
1 | ||
| 82345-12030 |
SV2#,VZV21..DX,LE COWL WIRE,NO.8 |
1 | ||
| 82345-20060 |
SV2#,VZV21..DX,LE COWL WIRE,NO.4 |
1 | ||
| 82345-32010 |
VZV21;SV25..LE;SV21..USA;SV21..LE..CND;SV25..DX..USA COWL WIRE,NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
SV21..STD..USA;SV2#,VZV21..DX,LE COWL WIRE,NO.2 |
1 | ||
| 82345-12030 |
SV2#,VZV21..DX,LE COWL WIRE,NO.8 |
1 | ||
| 82345-20060 |
SV2#,VZV21..DX,LE COWL WIRE,NO.4 |
1 | ||
| 82345-32010 |
VZV21;SV25..LE;SV21..USA;SV21..LE..CND;SV25..DX..USA COWL WIRE,NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
SV21..STD..USA;SV2#,VZV21..DX,LE COWL WIRE,NO.2 |
1 | ||
| 82345-12030 |
SV2#,VZV21..DX,LE COWL WIRE,NO.8 |
1 | ||
| 82345-20060 |
SV2#,VZV21..DX,LE COWL WIRE,NO.4 |
1 | ||
| 82345-32010 |
VZV21;SV25..LE;SV21..USA;SV21..LE..CND;SV25..DX..USA COWL WIRE,NO.6 |
1 | ||
| 82345 - DIODE | ||||
| 82345-20040 |
SV21..STD..USA;SV2#,VZV21..DX,LE COWL WIRE,NO.2 |
1 | ||
| 82345-12030 |
SV2#,VZV21..DX,LE COWL WIRE,NO.8 |
1 | ||
| 82345-20060 |
SV2#,VZV21..DX,LE COWL WIRE,NO.4 |
1 | ||
| 82345-32010 |
VZV21;SV25..LE;SV21..USA;SV21..LE..CND;SV25..DX..USA COWL WIRE,NO.6 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
SV2#,VZV21 |
2 | ||
| 82817-32420 |
SV2#,VZV21 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32420 |
SV2#,VZV21 |
2 | ||
| 82817-32420 |
SV2#,VZV21 |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
SV2#,VZV21 |
1 | ||
| 82823-22060 |
VZV21..SED |
1 | ||
| 82823-20030 |
VZV21 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
SV2#,VZV21 |
1 | ||
| 82824-32030 |
SV25;SV21..USA;VZV21..DX |
1 | ||
| 82824-32030 |
SV2#;VZV21..DX |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90179-06054 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8201 | ||||

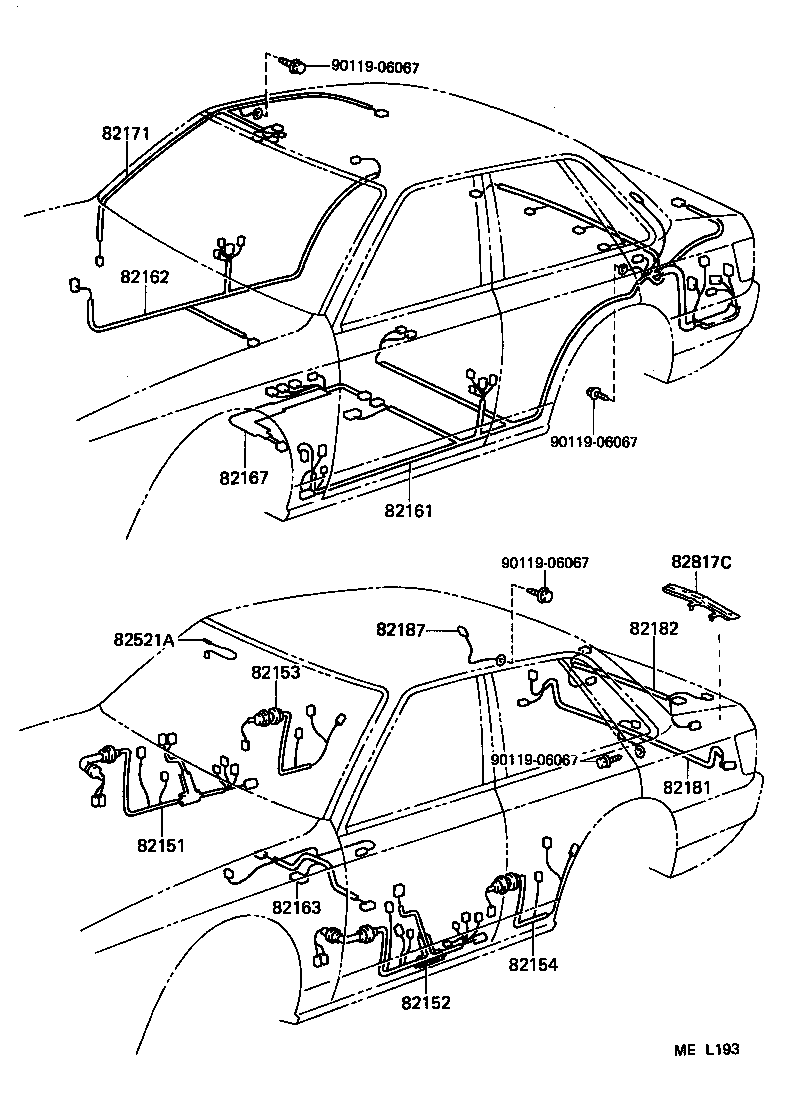

ILLUST NO. 2 OF 5(8808- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-32470 |
SV2#,VZV21..DX..USA W(POWER WINDOW) |
1 | ||
| 82151-32471 |
SV2#,VZV21..DX..USA W(POWER WINDOW) |
1 | ||
| 82151-32460 |
SV2#,VZV21..(DX,STD)..USA |
1 | ||
| 82151-32461 |
SV2#,VZV21..(DX,STD)..USA |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-32431 |
SV2#,VZV21..DX..USA W(POWER WINDOW) |
1 | ||
| 82152-32420 |
SV2#,VZV21..(DX,STD)..USA |
1 | ||
| 82152-32430 |
SV2#,VZV21..DX..USA W(POWER WINDOW) |
1 | ||
| 82152-32421 |
SV2#,VZV21..(DX,STD)..USA |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-32110 |
SV2#,VZV21..DX,LE |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-32110 |
SV2#,VZV21..DX,LE |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-32790 |
SV21,VZV21..SED..(DX,LE)..USA |
1 | ||
| 82161-32800 |
VZV21..SED..DX;SV21..SED..(DX,LE)..USA W(POWER WINDOW) |
1 | ||
| 82161-32791 |
SV21,VZV21..SED..(DX,LE)..USA |
1 | ||
| 82161-32801 |
VZV21..SED..DX;SV21..SED..(DX,LE)..USA W(POWER WINDOW) |
1 | ||
| 82161-32792 |
SV21,VZV21..SED..(DX,LE)..USA |
1 | ||
| 82161-32802 |
VZV21..SED..DX;SV21..SED..(DX,LE)..USA W(POWER WINDOW) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-32450 |
SV2#,VZV21..USA |
1 | ||
| 82162-32460 |
SV2#,VZV21..(DX,LE)..USA W(POWER WINDOW) |
1 | ||
| 82162-32461 |
SV2#,VZV21..(DX,LE)..USA W(POWER WINDOW) |
1 | ||
| 82162-32451 |
SV2#,VZV21..USA |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-32051 |
SV2#,VZV21..USA |
1 | ||
| 82163-32053 |
SV2#,VZV21..USA |
1 | ||
| 82163-32052 |
SV2#,VZV21..USA |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-32240 |
SV2#,VZV21..(DX,STD)..USA |
1 | ||
| 82171-32241 |
SV2#,VZV21..(DX,STD)..USA |
1 | ||
| 82171-32260 |
SV2#,VZV21..(DX,LE)..USA W(MOON ROOF) |
1 | ||
| 82171-32261 |
SV2#,VZV21..(DX,LE)..USA W(MOON ROOF) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-32251 |
SV21,VZV21..SED |
1 | ||
| 82181-32250 |
SV21,VZV21..SED |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-32062 |
SV2#,VZV21..SED |
1 | ||
| 82182-32061 |
SV2#,VZV21..SED |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-32020 |
SV2#,VZV21..SED |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||

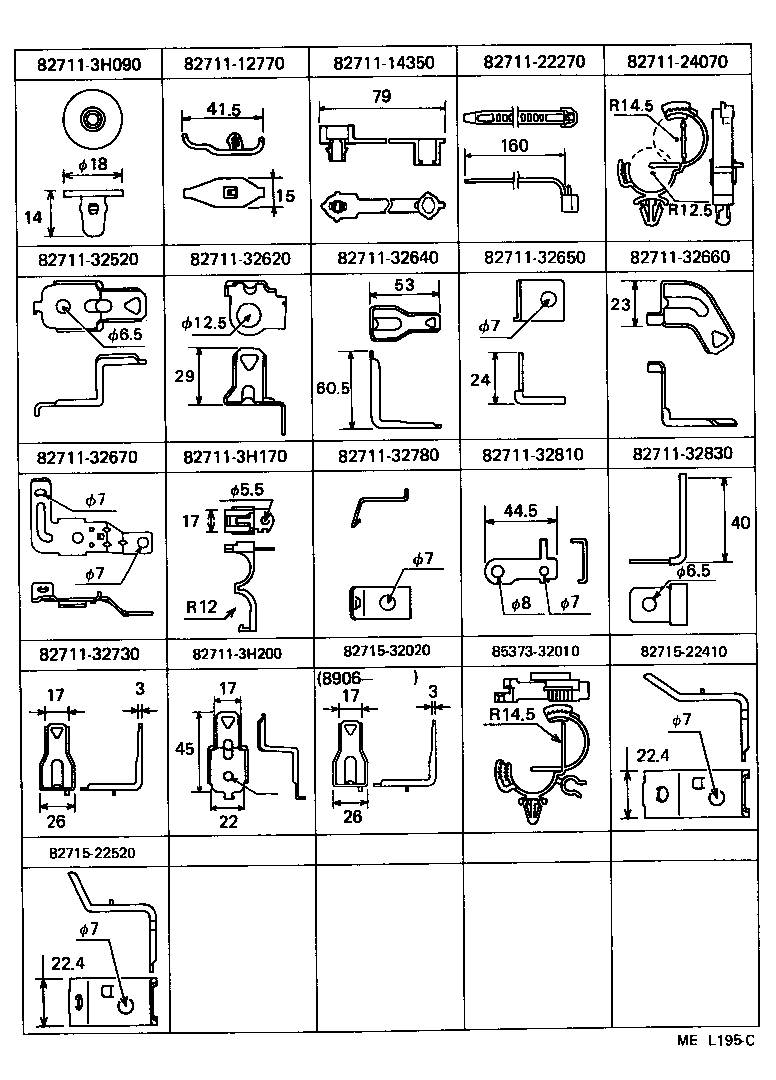

ILLUST NO. 3 OF 5(8808- )
CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-22270 | ||||
| 82711-24070 | ||||
| 82711-32520 | ||||
| 82711-32620 | ||||
| 82711-32640 | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32670 | ||||
| 82711-32730 | ||||
| 82711-32780 | ||||
| 82711-32810 | ||||
| 82711-32830 | ||||
| 82711-3H090 | ||||
| 82711-3H170 | ||||
| 82711-3H200 | ||||
| 82715-22410 | ||||
| 82715-22520 | ||||
| 82715-32020 | ||||
| 85373-32010 | ||||
