VZV21L-UEMDKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 2VZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

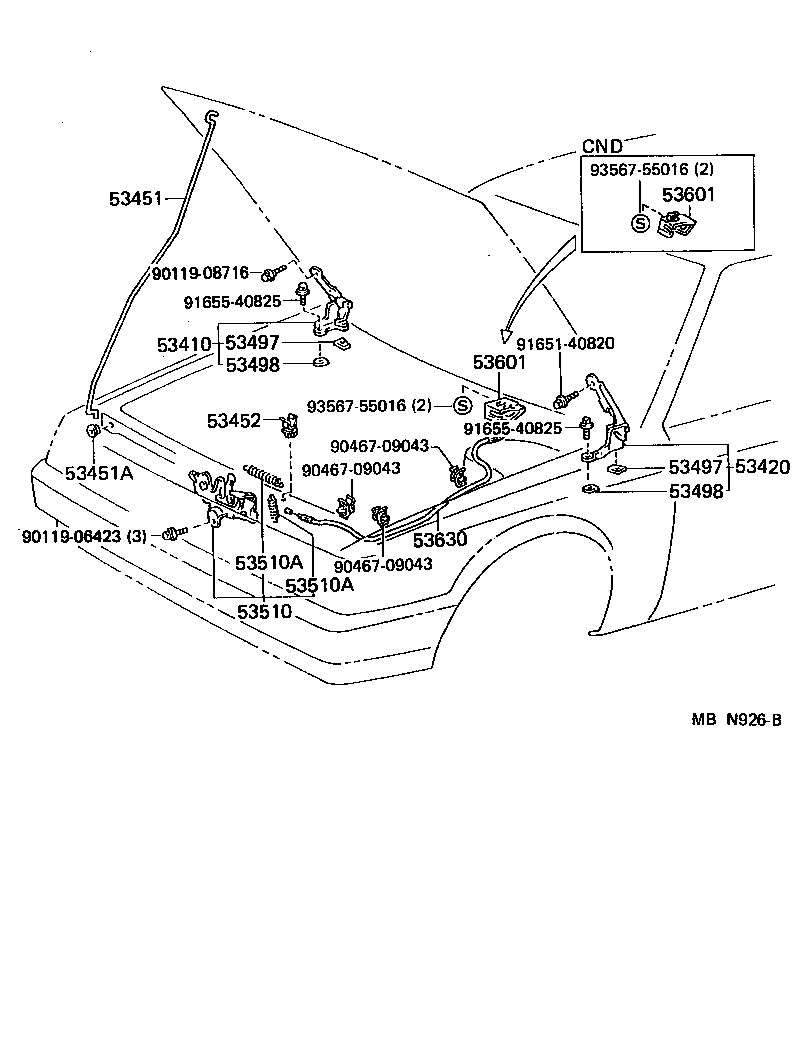

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53497 53497 53498 53498 53510 53510A 53510A 53601 53601 53630 9011906423 9011908716 9046709043 9046709043 9046709043 9165140820 9165540825 9165540825 9356755016 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-32031

SV2#,VZV21

 1
53420 - HINGE ASSY, HOOD, LH
53420-32031

SV2#,VZV21

 1
53451 - ROD, HOOD SUPPORT
53451-32030

SV2#,VZV21

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15011

SV2#,VZV21

 1
53452 - HOLDER, HOOD STAY
53452-32010

SV2#,VZV21

 1
53497 - PAD, HOOD HINGE, NO.1
53497-17011

SV2#,VZV21

 1
53497 - PAD, HOOD HINGE, NO.1
53497-17011

SV2#,VZV21

 1
53498 - PAD, HOOD HINGE, NO.2
53498-12011

SV2#,VZV21

 1
53498 - PAD, HOOD HINGE, NO.2
53498-12011

SV2#,VZV21

 1
53510 - LOCK ASSY, HOOD
53510-32050

SV2#,VZV21

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09029

SV2#,VZV21

WD=0.9,L=39.6,WD=9.0

 1
90506-20054

SV2#,VZV21

WD=2.0,CW=17,L=60,WD=14.5

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09029

SV2#,VZV21

WD=0.9,L=39.6,WD=9.0

 1
90506-20054

SV2#,VZV21

WD=2.0,CW=17,L=60,WD=14.5

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-32010E0

SV2#,VZV21..USA

BROWN,TRIM4#

 1
53601-32010D0

SV2#,VZV21..USA

MAROON,TRIM3#

 1
53601-32010D0

SV2#,VZV21..USA

MAROON,TRIM3#

 1
53601-32010J0

SV2#,VZV21..USA

DARK BLUE,TRIM8#

 1
53601-32010D0

SV2#,VZV21..(DX,LE)..USA

MAROON,TRIM3#

 1
53601-32010B0

SV2#,VZV21..USA

MEDIUM GRAY,TRIM1#

 1
53601-32010E0

SV2#,VZV21..USA

BROWN,TRIM4#

 1
53601-32010J0

SV2#,VZV21..USA

DARK BLUE,TRIM8#

 1
53601-32010E0

SV2#,VZV21..(DX,LE)..USA

BROWN,TRIM4#

 1
53601-32010B0

SV2#,VZV21..USA

MEDIUM GRAY,TRIM1#

 1
53601-32010B0

SV2#,VZV21..(DX,LE)..USA

MEDIUM GRAY,TRIM1#

 1
53601-32010J0

SV2#,VZV21..(DX,LE)..USA

DARK BLUE,TRIM8#

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-32010E0

SV2#,VZV21..USA

BROWN,TRIM4#

 1
53601-32010D0

SV2#,VZV21..USA

MAROON,TRIM3#

 1
53601-32010D0

SV2#,VZV21..USA

MAROON,TRIM3#

 1
53601-32010J0

SV2#,VZV21..USA

DARK BLUE,TRIM8#

 1
53601-32010D0

SV2#,VZV21..(DX,LE)..USA

MAROON,TRIM3#

 1
53601-32010B0

SV2#,VZV21..USA

MEDIUM GRAY,TRIM1#

 1
53601-32010E0

SV2#,VZV21..USA

BROWN,TRIM4#

 1
53601-32010J0

SV2#,VZV21..USA

DARK BLUE,TRIM8#

 1
53601-32010E0

SV2#,VZV21..(DX,LE)..USA

BROWN,TRIM4#

 1
53601-32010B0

SV2#,VZV21..USA

MEDIUM GRAY,TRIM1#

 1
53601-32010B0

SV2#,VZV21..(DX,LE)..USA

MEDIUM GRAY,TRIM1#

 1
53601-32010J0

SV2#,VZV21..(DX,LE)..USA

DARK BLUE,TRIM8#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-32060

SV2#,VZV21

 1
Common parts
90119-06423
90119-08716
90467-09043
91651-40820
91655-40825
93567-55016
