VZV21L-UEMDKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 2VZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SV25,VZV21..5F

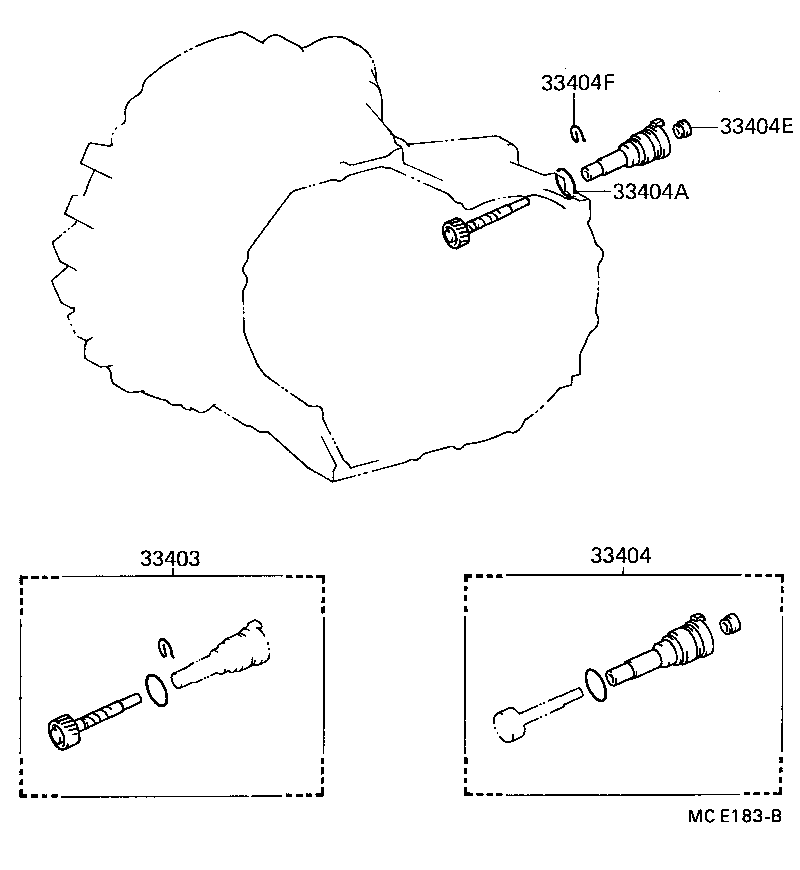

Click highlighted areas on diagram

E52,E56F2,E56F5

diagram 33403 33404 33404A 33404E 33404F
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-39216

VZV21..5F

N=29,MARK 29:35

 1
33403-39215

SV25,VZV21..5F

N=29,MARK 29:35

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-17010

SV25,VZV21..5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96721-24030

SV25,VZV21..5F

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09003

SV25,VZV21..5F

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

SV2#,VZV21..5F

 1
