SXV10L-AEMNKK (1991)

Toyota Camry (Jpp)

Production Jun 1991 - Aug 1992
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

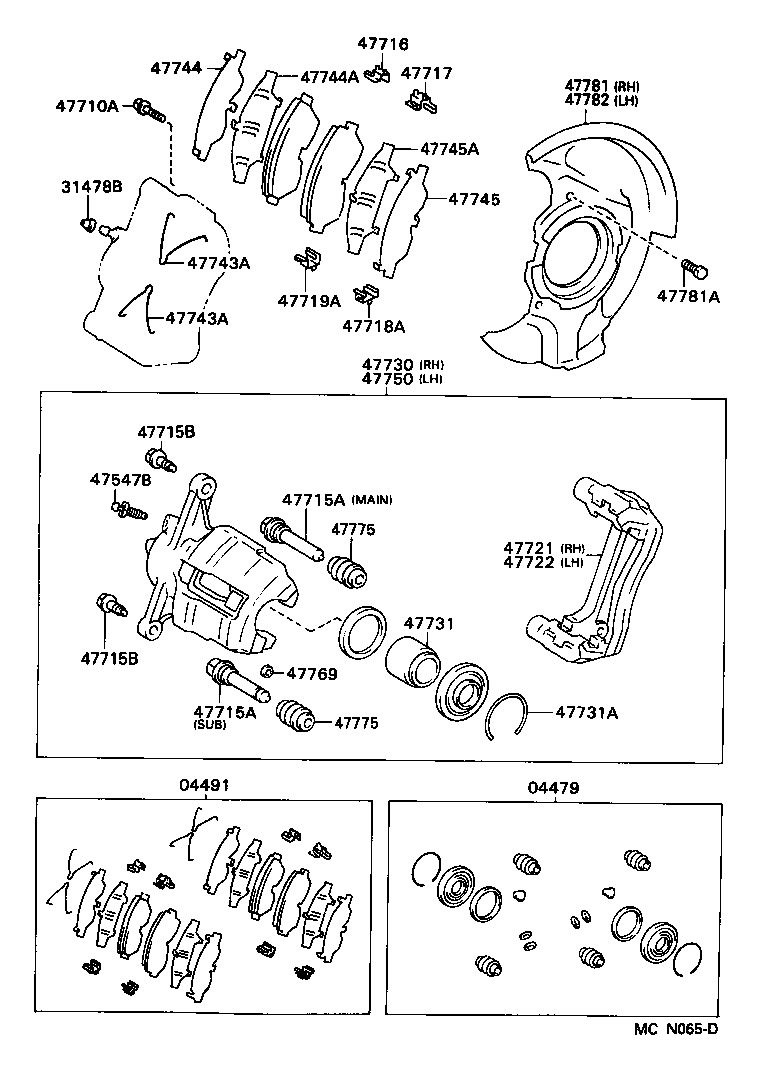

ILLUST NO. 1 OF 2(9106- )SXV10..JPP

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47710A 47715A 47715A 47715B 47715B 47716 47717 47718A 47719A 47721 47722 47730 47731 47731A 47743A 47743A 47744 47744A 47745 47745A 47750 47769 47775 47775 47781 47781A 47782
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-33010

SXV10,VCV10..JPP

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-33010

SXV10..JPP

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

MCV10,SXV10,VCV10..JPP

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

MCV10,SXV10,VCV10..JPP

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

MCV10,SXV10,VCV10..JPP

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-50010

SXV10,VCV10..JPP

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-50010

SXV10,VCV10..JPP

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

MCV10,SXV10,VCV10..JPP

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

MCV10,SXV10,VCV10..JPP

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-33010

SXV10..JPP

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47716-33020

SXV10..JPP

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47717-33010

SXV10..JPP

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47717-33020

SXV10..JPP

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-33010

SXV10..JPP

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-33010

SXV10..JPP

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-33030

SXV10..JPP

 1
47731 - PISTON, FRONT DISC BRAKE
47731-33010

SXV10,VCV10..JPP

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-66001

MCV10,SXV10,VCV10..JPP

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47745-33010

SXV10..JPP

 2
47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47744-33010

SXV10..JPP

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-33010

SXV10..JPP

 2
47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)
47744-33010

SXV10..JPP

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-33030

SXV10..JPP

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

MCV10,SXV10,VCV10..JPP

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-20080

SXV10..JPP

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-20080

SXV10..JPP

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-33010

SXV10..JPP

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

MCV10,SXV10,VCV10..JPP

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-33010

SXV10..JPP

 1

ILLUST NO. 2 OF 2(9106- )JPP

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-33020

SXV10..JPP

MARK AKEBONO PA533

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-33030

SXV10..JPP

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-33040

SXV10..JPP

 1

ILLUST NO. 1 OF 2(9106- )JPP

Click highlighted areas on diagram

W(ANTI-LOCK BRAKING SYSTEM)

diagram 04479 04491 31478B 47547B 47710A 47715A 47715A 47715B 47715B 47716 47717 47718A 47719A 47721 47722 47730 47731 47731 47731A 47731A 47743A 47743A 47744 47744A 47745 47745A 47750 47769 47771 47775 47775 47781 47781A 47782
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-33010

SXV10,VCV10..JPP

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-33010

SXV10..JPP

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

MCV10,SXV10,VCV10..JPP

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

MCV10,SXV10,VCV10..JPP

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

MCV10,SXV10,VCV10..JPP

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-50010

SXV10,VCV10..JPP

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-50010

SXV10,VCV10..JPP

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

MCV10,SXV10,VCV10..JPP

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

MCV10,SXV10,VCV10..JPP

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-33010

SXV10..JPP

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47716-33020

SXV10..JPP

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47717-33010

SXV10..JPP

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47717-33020

SXV10..JPP

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-33010

SXV10..JPP

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-33010

SXV10..JPP

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-33030

SXV10..JPP

 1
47731 - PISTON, FRONT DISC BRAKE
47731-33010

SXV10,VCV10..JPP

 2
47731 - PISTON, FRONT DISC BRAKE
47731-33010

SXV10,VCV10..JPP

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-66001

MCV10,SXV10,VCV10..JPP

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-66001

MCV10,SXV10,VCV10..JPP

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47745-33010

SXV10..JPP

 2
47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
47744-33010

SXV10..JPP

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-33010

SXV10..JPP

 2
47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)
47744-33010

SXV10..JPP

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-33030

SXV10..JPP

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

MCV10,SXV10,VCV10..JPP

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-20080

SXV10..JPP

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-20080

SXV10..JPP

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-33010

SXV10..JPP

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

MCV10,SXV10,VCV10..JPP

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-33010

SXV10..JPP

 1
