SXV10L-AEMNKK (1991)
Toyota Camry (Jpp)
Production
Jun 1991
-
Aug 1992
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9106- )5SFE..JPP..MTM

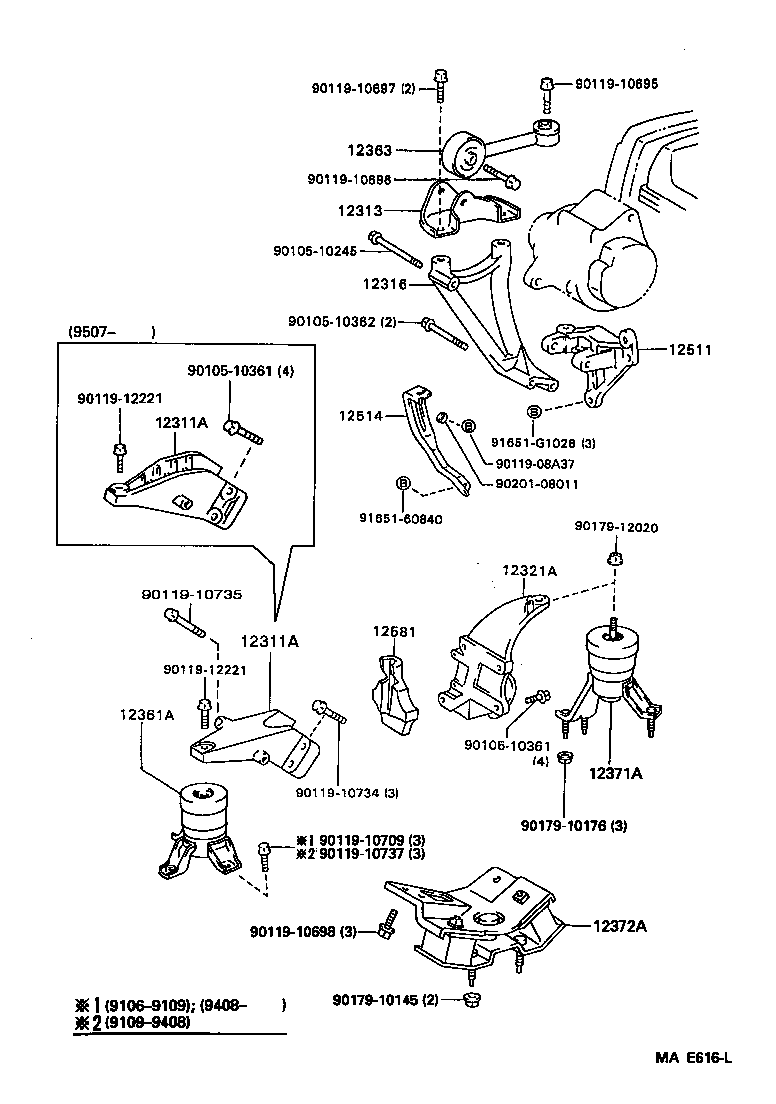

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74130 |
5SFE..SXV10..JPP |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-74130 |
5SFE..SXV10..JPP |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-74040 |
5SFE..SXV10..JPP |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-74030 |
5SFE..SXV10..JPP |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-74250 |
5SFE..SXV10..JPP |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-74241 |
5SFE..SXV10..JPP..MTM |
1 | ||
| 12363 - INSULATOR, ENGINE MOUNTING, CENTER | ||||
| 12363-74110 |
5SFE..SXV10..JPP..MTM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-74301 |
5SFE..SXV10..JPP..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-74370 |
5SFE..SXV10..JPP..MTM |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-74100 |
5SFE..SXV10..JPP |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-74011 |
5SFE..SXV10..JPP |
1 | ||
| Common parts | ||||
| 90105-10245 | ||||
| 90105-10361 | ||||
| 90105-10362 | ||||
| 90119-08A37 | ||||
| 90119-10695 | ||||
| 90119-10696 | ||||
| 90119-10697 | ||||
| 90119-10698 | ||||
| 90119-10709 | ||||
| 90119-10734 | ||||
| 90119-10735 | ||||
| 90119-10737 | ||||
| 90119-12221 | ||||
| 90179-10145 | ||||
| 90179-10176 | ||||
| 90179-12020 | ||||
| 90201-08011 | ||||
| 91651-60840 | ||||
| 91651-G1028 | ||||
