SXV10L-AEMDKK (1991)

Toyota Camry (Jpp)

Production Jun 1991 - Feb 1994
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )SXV10..JPP

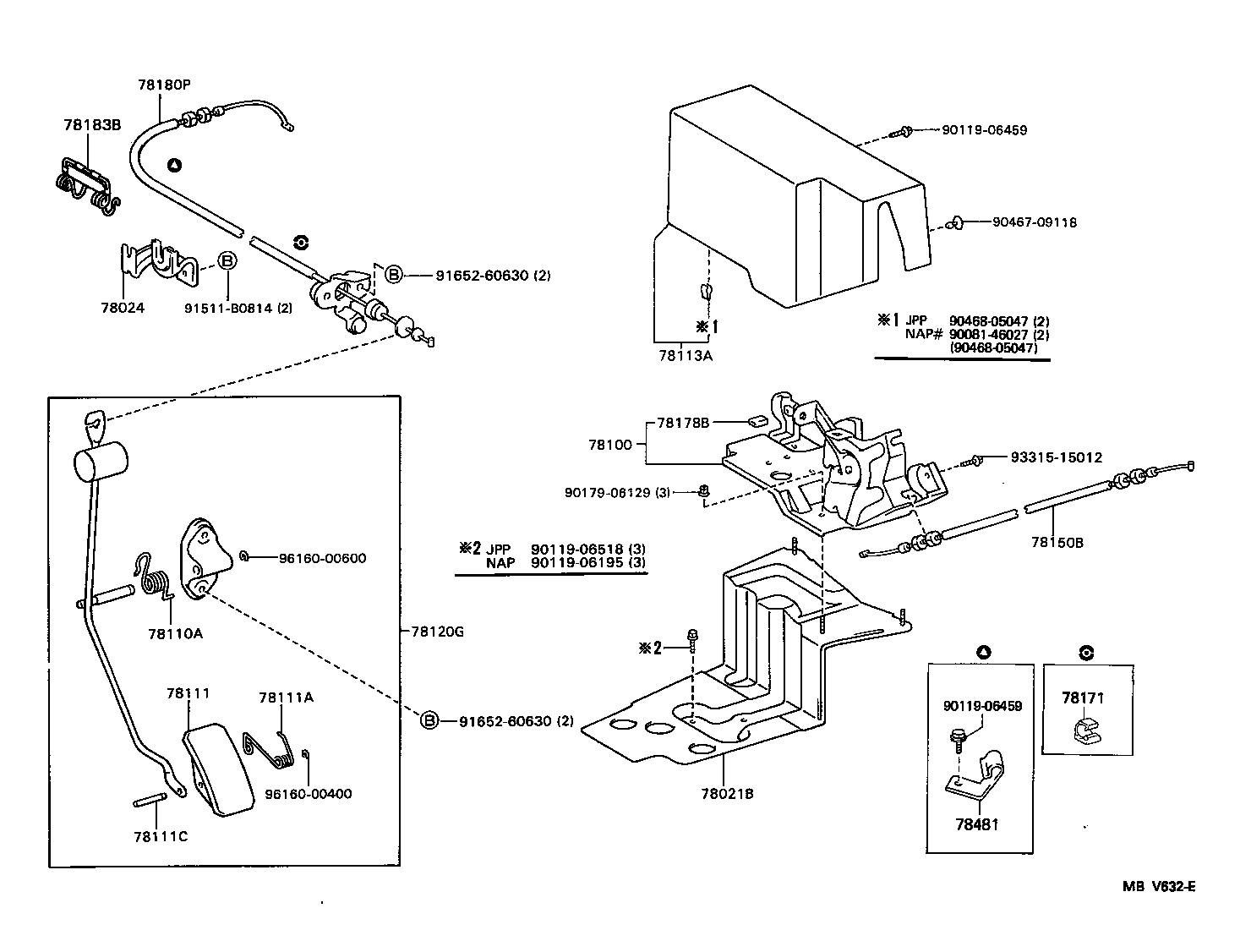

Click highlighted areas on diagram

diagram 78021B 78024 78100 78110A 78111 78111A 78111C 78113A 78120G 78150B 78171 78178B 78180P 78183B 78481 9008146027 9011906195 9011906459 9011906459 9011906518 9017906129 9046709118 9046805047 9046805047 91511B0814 9165260630 9165260630 9331515012 9616000400 9616000600
Part # Description Qty Price
78021B - BRACKET SUB-ASSY, ACCEL CONTROL BELLCRANK
78021-33010

MCV10,SXV10,VCV10..JPP

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-33020

SXV10..JPP

 1
78100 - LINK ASSY, ACCELERATOR
78100-33020

SXV10..JPP

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26062

SXV10,VCV10..JPP..MTM

 1
78111 - PEDAL, ACCELERATOR
78111-32010

MCV10,SXV10,VCV10..JPP

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18046

SXV10,VCV10..JPP

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

MCV10,SXV10,VCV10..JPP

 1
78113A - COVER, AUTO DRIVE ACCELERATOR LINK
78113-33020

SXV10..JPP

NIPPONDENSO-ACTUATOR

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-33020

SXV10,VCV10..JPP..MTM

 1
78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE
78150-33040

SXV10..JPP

 1
78178B - DAMPER, ACCEL CONTROL NO.4 ROD BRACKET
78178-14010

MCV10,SXV10,VCV10..JPP

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-33100

MCV10,SXV10,VCV10..JPP..(DX,SE)

W(*CRC)

 1
78180-33040

SXV10..JPP..DX

 1
78481 - CLAMP, THROTTLE WIRE
78481-33010

SXV10..JPP

 1
Common parts
90081-46027
90119-06195
90119-06459
90119-06518
90179-06129
90467-09118
90468-05047
91511-B0814
91652-60630
93315-15012
96160-00400
96160-00600
