SXV10L-AEMDKK (1991)

Toyota Camry (Jpp)

Production Jun 1991 - Feb 1994
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )SXV10..JPP..MTM

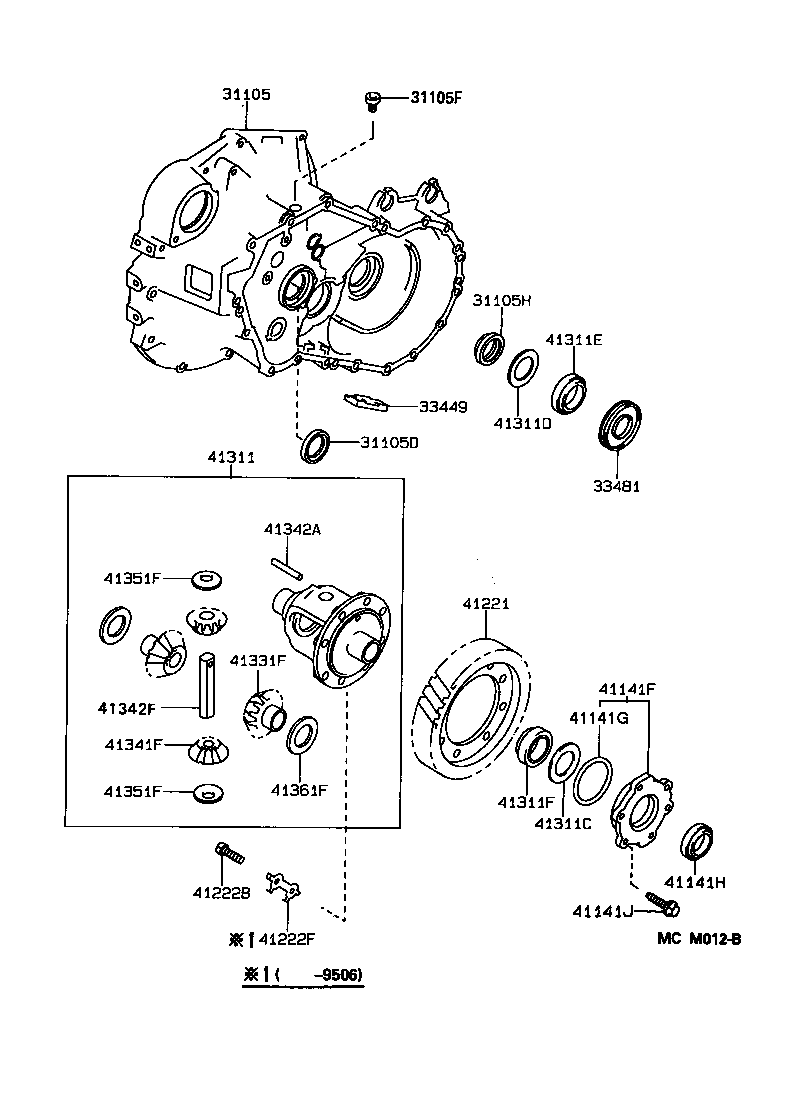

Click highlighted areas on diagram

diagram 31105 31105D 31105F 31105H 33449 33481 41141F 41141G 41141H 41141J 41221 41222B 41222F 41311 41311C 41311D 41311E 41311F 41331F 41341F 41342A 41342F 41351F 41351F 41361F
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-32062

SXV10..JPP..MTM

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30006

SXV10,VCV10..JPP..MTM

 1
31105F - PLUG(FOR TRANSAXLE CASE)
90341-10065

SXV10..JPP..MTM

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-35026

SXV10..JPP..MTM

 1
33449 - MAGNET, TRANSMISSION
33449-32020

SXV10..JPP..MTM

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-32070

SXV10..JPP..MTM

N=27

 1
41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING
41101-32010

SXV10..JPP..MTM

 1
41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90301-63004

SXV10..JPP..MTM

 1
41141H - SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
90311-35026

SXV10..JPP..MTM

 1
41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90105-08061

SXV10..JPP..MTM

*8-1.25PX26.5-23.5

 6
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-32090

SXV10..JPP

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003

SXV10..JPP

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-32010

SXV10..JPP

 4
41311 - CASE, FRONT DIFFERENTIAL
41301-32060

SXV10..JPP..MTM

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-45002

SXV10..JPP..MTM

T=1.95,MARK 02

 1
90564-45001

SXV10..JPP..MTM

T=1.90,MARK 01

 1
90564-45005

SXV10..JPP..MTM

T=2.10,MARK 05

 1
90564-45010

SXV10..JPP..MTM

T=2.35,MARK 10

 1
90564-45011

SXV10..JPP..MTM

T=2.40,MARK 11

 1
90564-45008

SXV10..JPP..MTM

T=2.25,MARK 08

 1
90564-45004

SXV10..JPP..MTM

T=2.05,MARK 04

 1
90564-45007

SXV10..JPP..MTM

T=2.20,MARK 07

 1
90564-45012

SXV10..JPP..MTM

T=2.45,MARK 12

 1
90564-45003

SXV10..JPP..MTM

T=2.00,MARK 03

 1
90564-45009

SXV10..JPP..MTM

T=2.30,MARK 09

 1
90564-45014

SXV10..JPP..MTM

T=2.55,MARK 14

 1
90564-45016

SXV10..JPP..MTM

T=2.65,MARK 16

 1
90564-45006

SXV10..JPP..MTM

T=2.15,MARK 06

 1
90564-45015

SXV10..JPP..MTM

T=2.60,MARK 15

 1
90564-45018

SXV10..JPP..MTM

T=2.75,MARK 18

 1
90564-45013

SXV10..JPP..MTM

T=2.50,MARK 13

 1
90564-45019

SXV10..JPP..MTM

T=2.80,MARK 19

 1
90564-45017

SXV10..JPP..MTM

T=2.70,MARK 17

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45011

SXV10..JPP

T=2.40,MARK 11

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40016

SXV10..JPP

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-40023

SXV10..JPP..MTM

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

SXV10..JPP

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-22030

SXV10..JPP

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

MCV10,SXV10..JPP

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-20050

SXV10..JPP..MTM

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

SXV10..JPP

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

SXV10..JPP

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22140

SXV10..JPP

T=0.95,MARK 14

 2
41361-22150

SXV10..JPP

T=1.05,MARK 15

 2
41361-22040

SXV10..JPP

T=1.20,MARK 04

 2
41361-22160

SXV10..JPP

T=1.15,MARK 16

 2
41361-22020

SXV10..JPP

T=1.00,MARK 02

 2
41361-22030

SXV10..JPP

T=1.10,MARK 03

 2
