SXV10L-AEMDKA (1991)
Toyota Camry (Jpp)
Production
Jun 1991
-
Aug 1996
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

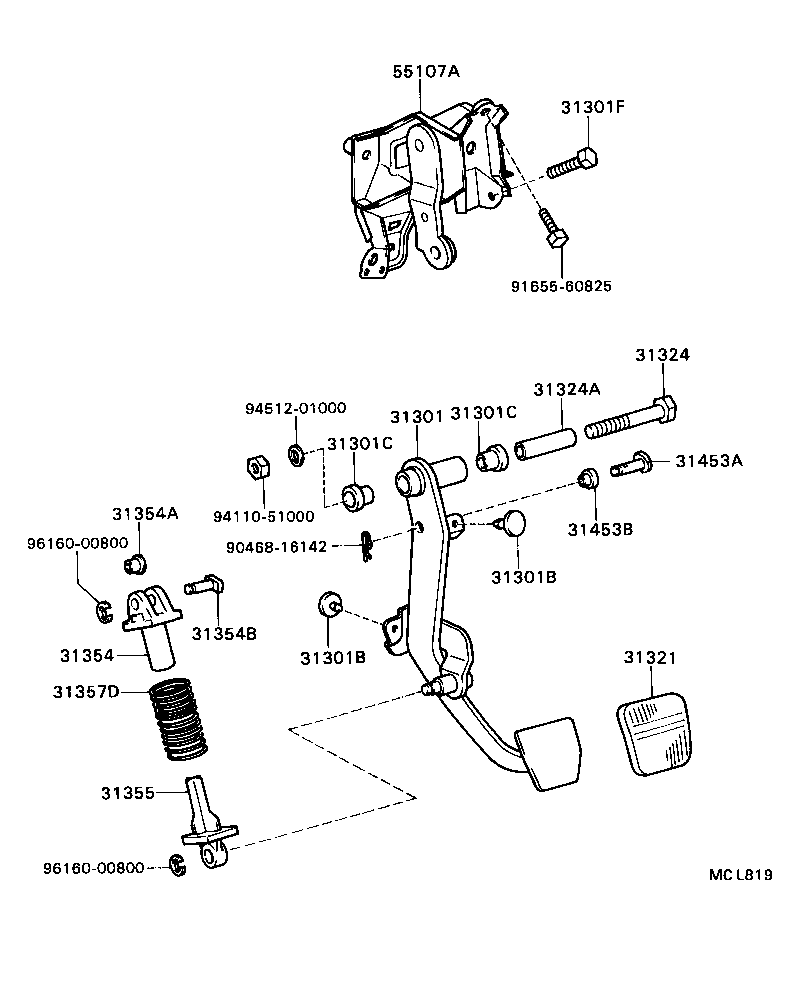

ILLUST NO. 1 OF 2(9106- )SXV10..JPP..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-33010 |
SXV10,VCV10..JPP..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
SXV10,VCV10..JPP..MTM |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
SXV10,VCV10..JPP..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
SXV10,VCV10..JPP..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
SXV10,VCV10..JPP..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
SXV10..JPP..MTM |
1 | ||
| 90101-10369 |
SXV10,VCV10..JPP..MTM |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
SXV10,VCV10..JPP..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10273 |
SXV10,VCV10..JPP..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
SXV10,VCV10..JPP..MTM |
1 | ||
| 31354 - SEAT, CLUTCH PEDAL SPRING, UPPER | ||||
| 31354-20030 |
SXV10,VCV10..JPP..MTM |
1 | ||
| 31354-33010 |
SXV10..JPP..MTM |
1 | ||
| 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90386-10019 |
SXV10,VCV10..JPP..MTM |
1 | ||
| 31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90249-10127 |
SXV10,VCV10..JPP..MTM |
1 | ||
| 31355 - SEAT, CLUTCH PEDAL SPRING, LOWER | ||||
| 31355-20030 |
SXV10,VCV10..JPP..MTM |
1 | ||
| 31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD) | ||||
| 90501-35018 |
SXV10..JPP..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08143 |
SXV10,VCV10..JPP..MTM L=30 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08036 |
SXV10,VCV10..JPP..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-33010 |
SXV10,VCV10..JPP..MTM |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 91655-60825 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||
| 96160-00800 | ||||

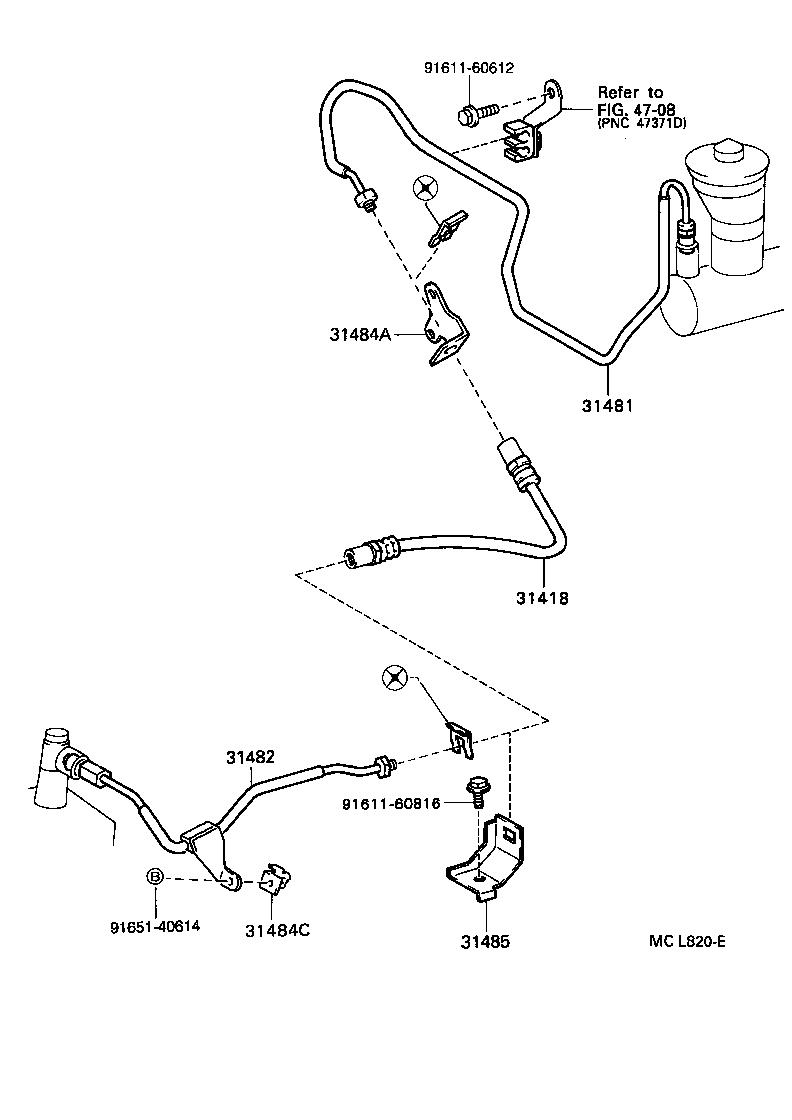

ILLUST NO. 2 OF 2(9106- )SXV10..JPP..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90931-01077 |
SXV10,VCV10..JPP..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-33020 |
SXV10,VCV10..JPP..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-33020 |
SXV10..JPP..MTM |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-33010 |
SXV10,VCV10..JPP..MTM |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-32050 |
SXV10..JPP..MTM |
1 | ||
| 31484-32050 |
SXV10..JPP..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-32101 |
SXV10,VCV10..JPP..MTM |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 4708 | ||||
