SV25L-UEPNKK (1988)
Toyota Camry (Jpp)

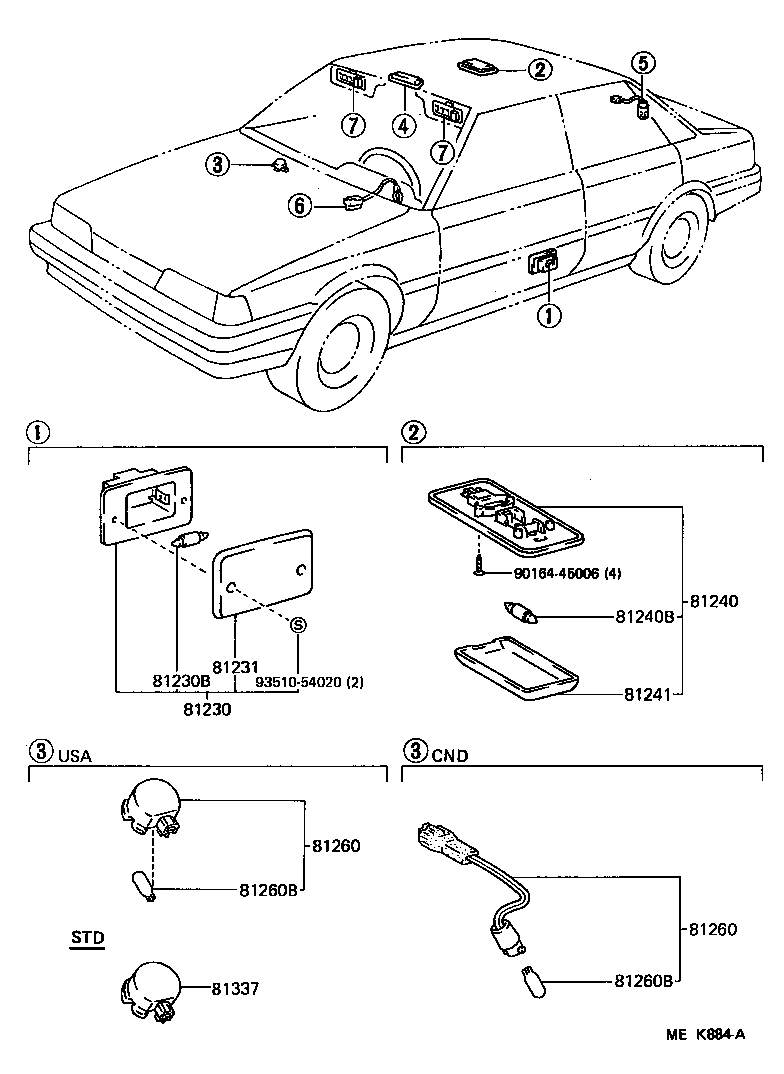

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-14040 |
SV2#,VZV21..LE |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 99132-13050 |
SV2#,VZV21..LE 12V 5W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-30100 |
SV2#,VZV21..LE |
2 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-2208123 |
SV2#,VZV21..CND GRAY,TRIM1#,8# |
1 | ||
| 81240-2208123 |
SV2#,VZV21..CND GRAY,TRIM1#,8# |
1 | ||
| 81240-2208123 |
SV2#,VZV21..LE..CND GRAY,TRIM1#,8# |
1 | ||
| 81240-2208136 |
SV2#,VZV21 LIGHT BROWN,TRIM4# |
1 | ||
| 81240-2208136 |
SV2#,VZV21..DX,LE LIGHT BROWN,TRIM4# |
1 | ||
| 81240-2208136 |
SV2#,VZV21..LE LIGHT BROWN,TRIM4# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
SV2#,VZV21 12V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-20060 |
SV2#,VZV21 |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-32060 |
SV2#,VZV21..(DX,LE)..CND |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-32060 |
SV2#,VZV21..(DX,LE)..CND |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
SV2#,VZV21..DX,LE 12V 1.2W W/O SOCKET |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
SV2#,VZV21..DX,LE 12V 1.2W W/O SOCKET |
1 | ||
| Common parts | ||||
| 90164-45006 | ||||
| 93510-54020 | ||||

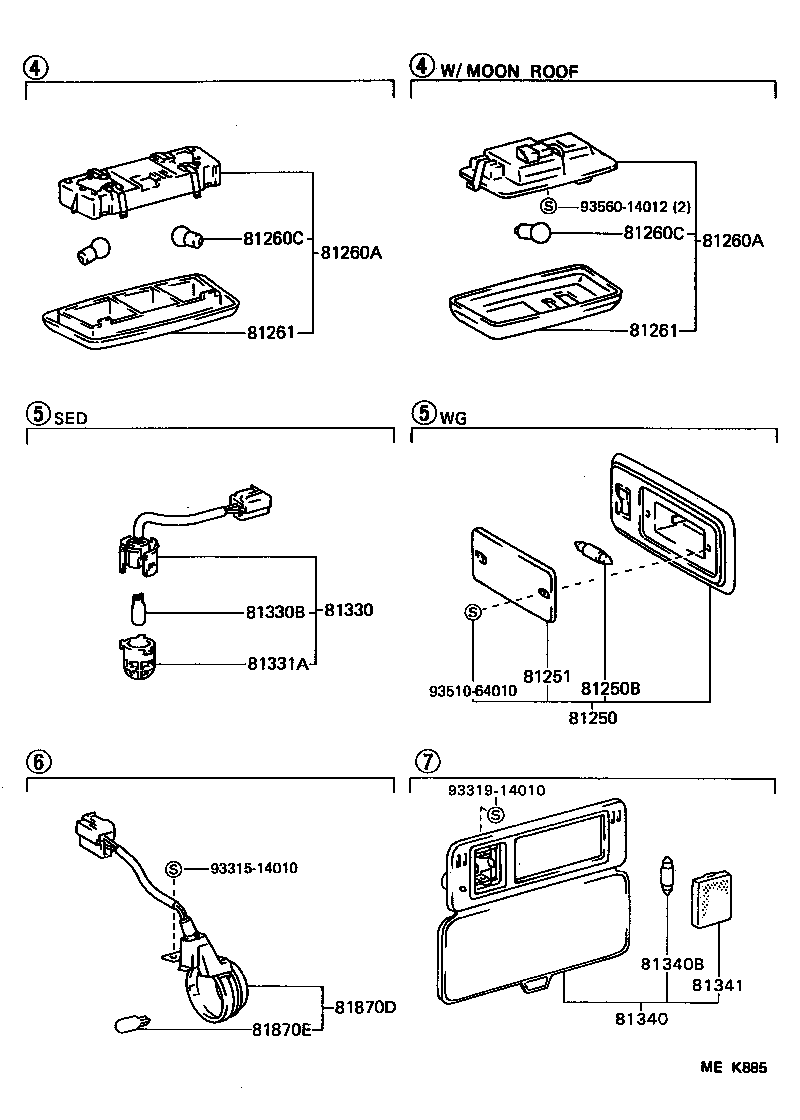

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-3205003 |
SV2#,VZV21..LE..CND W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81260-3204006 |
SV2#,VZV21..LE LIGHT BROWN,TRIM4# |
1 | ||
| 81260-3205006 |
SV2#,VZV21..LE W(MOON ROOF),LIGHT BROWN,TRIM4# |
1 | ||
| 81260-3204003 |
SV2#,VZV21..LE..CND LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-3205003 |
SV2#,VZV21..LE..CND W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81260-3204006 |
SV2#,VZV21..LE LIGHT BROWN,TRIM4# |
1 | ||
| 81260-3205006 |
SV2#,VZV21..LE W(MOON ROOF),LIGHT BROWN,TRIM4# |
1 | ||
| 81260-3204003 |
SV2#,VZV21..LE..CND LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
SV2#,VZV21..DX,LE 12V 10W |
1 | ||
| 90981-12005 |
SV2#,VZV21..LE 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12014 |
SV2#,VZV21..DX,LE 12V 10W |
1 | ||
| 90981-12005 |
SV2#,VZV21..LE 12V 8W |
2 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-3205006 |
SV2#,VZV21..LE W(MOON ROOF),LIGHT BROWN,TRIM4# |
1 | ||
| 81261-3204003 |
SV2#,VZV21..LE..CND LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81261-3205003 |
SV2#,VZV21..LE..CND W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81261-3204006 |
SV2#,VZV21..LE LIGHT BROWN,TRIM4# |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-3205006 |
SV2#,VZV21..LE W(MOON ROOF),LIGHT BROWN,TRIM4# |
1 | ||
| 81261-3204003 |
SV2#,VZV21..LE..CND LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81261-3205003 |
SV2#,VZV21..LE..CND W(MOON ROOF),LIGHT GRAY,TRIM1#,8# |
1 | ||
| 81261-3204006 |
SV2#,VZV21..LE LIGHT BROWN,TRIM4# |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-22031 |
SV2#,VZV21..SED |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
SV2#,VZV21..SED 12V 3.8W |
1 | ||
| 81331A - COVER, LUGGAGE COMPARTMENT LAMP | ||||
| 81331-22030 |
SV2#,VZV21..SED |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-3201003 |
SV2#,VZV21..LE..CND LIGHT GRAY,TRIM1#,8# |
2 | ||
| 81340-3201006 |
SV2#,VZV21..LE..CND LIGHT BROWN,TRIM4# |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14002 |
SV2#,VZV21..LE 12V 5W |
2 | ||
| 81341 - LENS, VANITY LAMP | ||||
| 81341-14020 |
SV2#,VZV21..LE |
2 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-32040 |
SV2#,VZV21..LE |
1 | ||
| 81870-32040 |
SV2#,VZV21..DX,LE |
1 | ||
| 81870-22020 |
SV2#,VZV21..LE |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11018 |
SV2#,VZV21..LE 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
SV2#,VZV21..DX,LE 12V 1.2W W/O SOCKET |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||
| 93319-14010 | ||||
| 93510-64010 | ||||
| 93560-14012 | ||||
