SV25L-UEPNKK (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

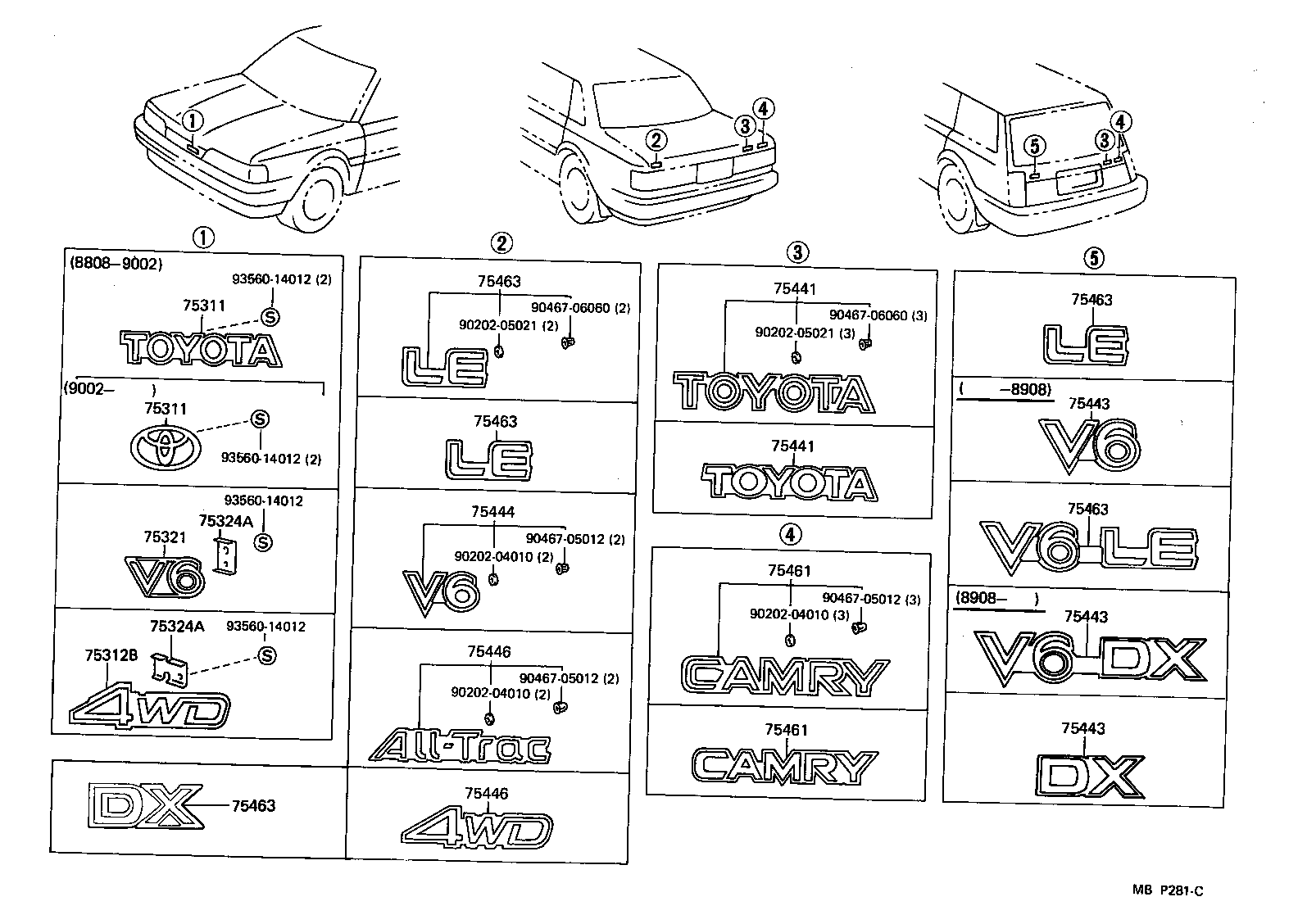

Click highlighted areas on diagram

diagram 75311 75311 75312B 75321 75324A 75324A 75441 75441 75443 75443 75443 75444 75446 75446 75461 75461 75463 75463 75463 75463 75463 9020204010 9020204010 9020204010 9020205021 9020205021 9046705012 9046705012 9046705012 9046706060 9046706060 9356014012 9356014012 9356014012 9356014012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-32080

SV2#,VZV21

 1
75311-32160

SV2#,VZV21

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-32080

SV2#,VZV21

 1
75311-32160

SV2#,VZV21

 1
75312B - EMBLEM, RADIATOR GRILLE, NO.2
75312-32070

SV25..CND

 1
75324A - RETAINER, RADIATOR GRILLE NAME PLATE
75324-32060

SV25..CND

 1
75324A - RETAINER, RADIATOR GRILLE NAME PLATE
75324-32060

SV25..CND

 1
75441 - PLATE, REAR NAME, NO.1
75441-32020

SV2#,VZV21..SED

TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75441-32020

SV2#,VZV21..SED

TOYOTA

 1
75446 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.6
75446-32010

SV25..CND

 1
75446 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.6
75446-32010

SV25..CND

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-32050

SV2#,VZV21..SED

CAMRY

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75442-32050

SV2#,VZV21..SED

CAMRY

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-32290

SV21..SED..LE;SV25..LE..CND

LE

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-32290

SV21..SED..LE;SV25..LE..CND

LE

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-32290

SV21..SED..LE;SV25..LE..CND

LE

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-32290

SV21..SED..LE;SV25..LE..CND

LE

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-32290

SV21..SED..LE;SV25..LE..CND

LE

 1
Common parts
90202-04010
90202-05021
90467-05012
90467-06060
93560-14012
