SV25L-UEPNKK (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

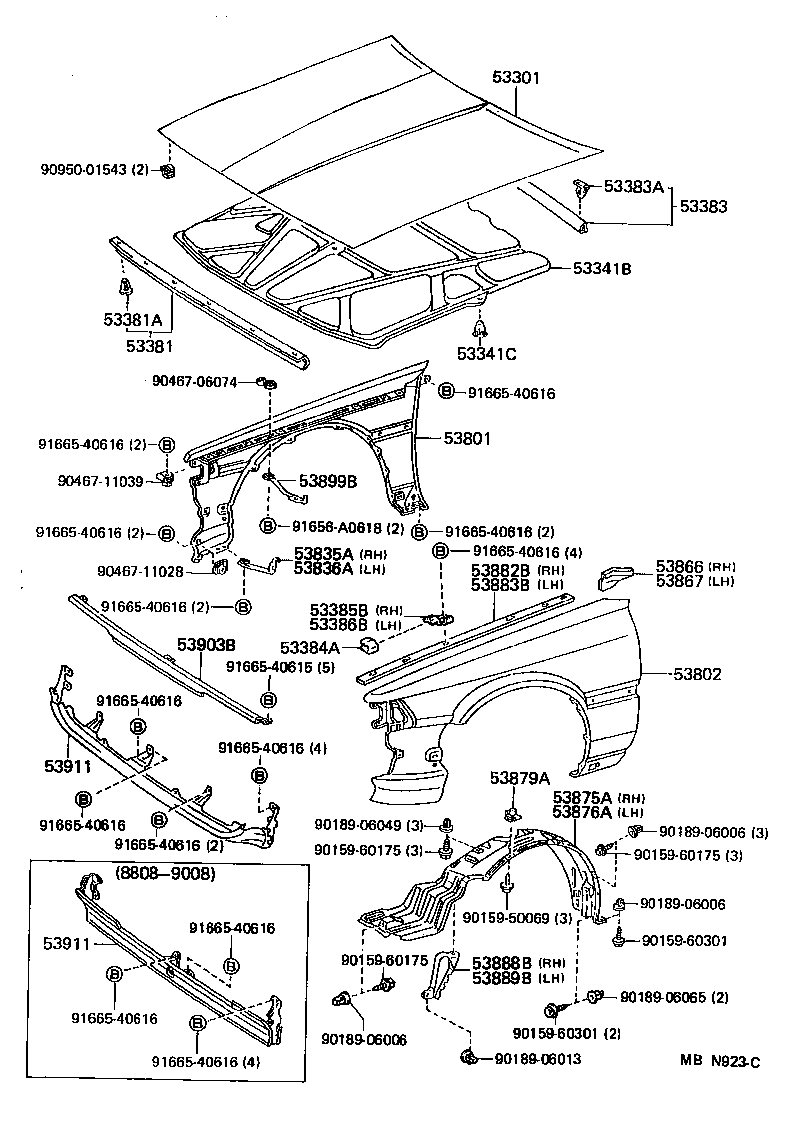

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53383 53383A 53384A 53385B 53386B 53801 53802 53835A 53836A 53866 53867 53875A 53876A 53879A 53882B 53883B 53888B 53889B 53899B 53903B 53911 53911 9015950069 9015960175 9015960175 9015960175 9015960301 9015960301 9018906006 9018906006 9018906006 9018906013 9018906049 9018906065 9046706074 9046711028 9046711039 9095001543 91656A0618 9166540615 9166540616 9166540616 9166540616 9166540616 9166540616 9166540616 9166540616 9166540616 9166540616 9166540616 9166540616 9166540616 9166540616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-32051

SV2#,VZV21

 1
53341B - INSULATOR, HOOD
53341-32030

SV2#,VZV21..LE

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09006

SV2#,VZV21..LE

 13
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-32020

SV2#,VZV21

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

SV2#,VZV21

 6
53383 - SEAL, HOOD TO COWL TOP
53383-32020

SV2#,VZV21

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08044

SV2#,VZV21

 10
53384A - BUMPER, FENDER TO HOOD
53384-14030

SV2#,VZV21

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-20020

SV2#,VZV21

 1
53385-14010

SV2#,VZV21

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-14010

SV2#,VZV21

 1
53386-20020

SV2#,VZV21

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-32070

SV2#,VZV21

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-32060

SV2#,VZV21

 1
53835A - BRACE, FRONT FENDER TO APRON, RH
53835-32020

SV2#,VZV21

 1
53836A - BRACE, FRONT FENDER TO APRON, LH
53835-32020

SV2#,VZV21

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-32020

SV2#,VZV21

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-32020

SV2#,VZV21

 1
53875A - LINER, FRONT FENDER, RH
53875-32020

SV2#,VZV21

 1
53876A - LINER, FRONT FENDER, LH
53876-32020

SV2#,VZV21

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

SV2#,VZV21

 6
53882B - SEAL, FRONT FENDER, RH
53882-32020

SV2#,VZV21

 1
53883B - SEAL, FRONT FENDER, LH
53882-32020

SV2#,VZV21

 1
53888B - SEAL, FRONT FENDER SPLASH SHIELD, RH NO.2
53888-32010

SV2#,VZV21

 1
53889B - SEAL, FRONT FENDER SPLASH SHIELD, LH NO.2
53889-32010

SV2#,VZV21

 1
53899B - SUPPORT, FRONT FENDER PANEL
53899-32010

SV2#,VZV21

 2
53903B - PANEL SUB-ASSY, FRONT END
53903-32010

SV2#,VZV21

 1
53911 - PANEL, FRONT VALANCE
53901-32010

SV2#,VZV21

 1
53901-32090

SV2#,VZV21

 1
53911 - PANEL, FRONT VALANCE
53901-32010

SV2#,VZV21

 1
53901-32090

SV2#,VZV21

 1
Common parts
90159-50069
90159-60175
90159-60301
90189-06006
90189-06013
90189-06049
90189-06065
90467-06074
90467-11028
90467-11039
90950-01543
91656-A0618
91665-40615
91665-40616
