SV25L-UEPNKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

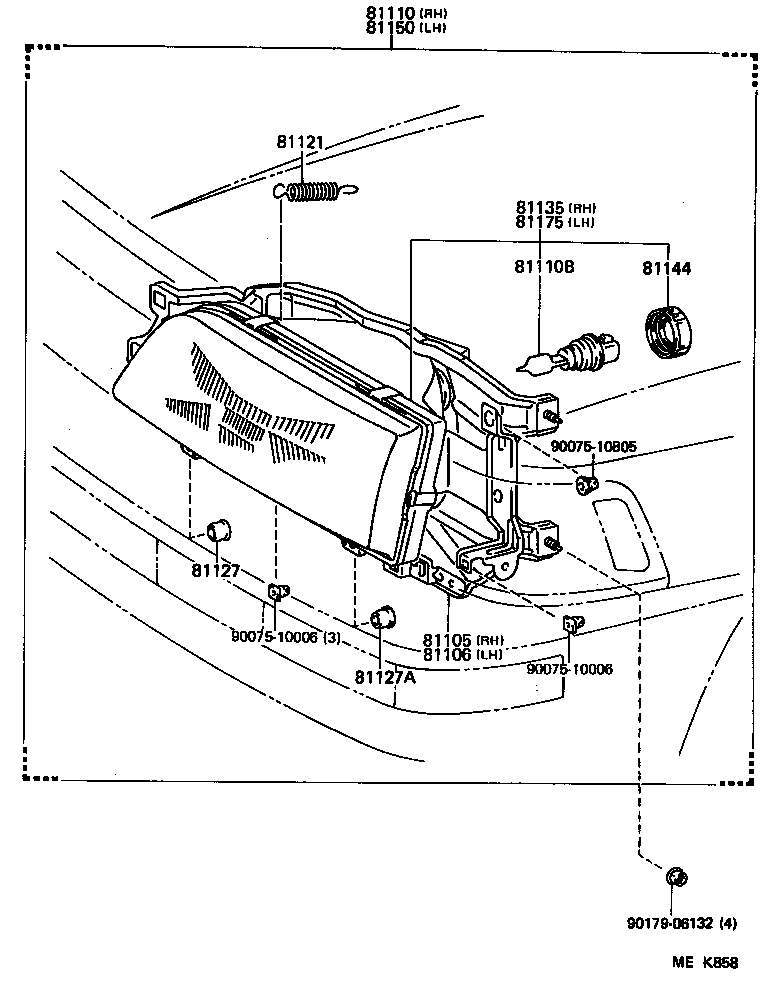

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81121 81127 81127A 81135 81144 81150 81175 9007510006 9007510006 9007510805 9017906132
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-32200

SV2#,VZV21

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-32200

SV2#,VZV21

 1
81110 - HEADLAMP ASSY, RH
81110-32200

SV2#,VZV21

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13032

SV2#,VZV21

12V 65/45W,*HAL,*WH

 2
81121 - SPRING, HEADLAMP TENSION
81121-22520

SV2#,VZV21

 2
81127 - BEARING, HEADLAMP, NO.1
81128-32200

SV2#,VZV21

 4
81127A - BEARING, HEADLAMP, NO.2
90075-10806

SV2#,VZV21

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-32200

SV2#,VZV21

 1
81144 - COVER, HEADLAMP, NO.1
81104-22520

SV2#,VZV21

 2
81150 - HEADLAMP ASSY, LH
81150-32200

SV2#,VZV21

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-32200

SV2#,VZV21

 1
Common parts
90075-10006
90075-10805
90179-06132
