SV25L-UEPNKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

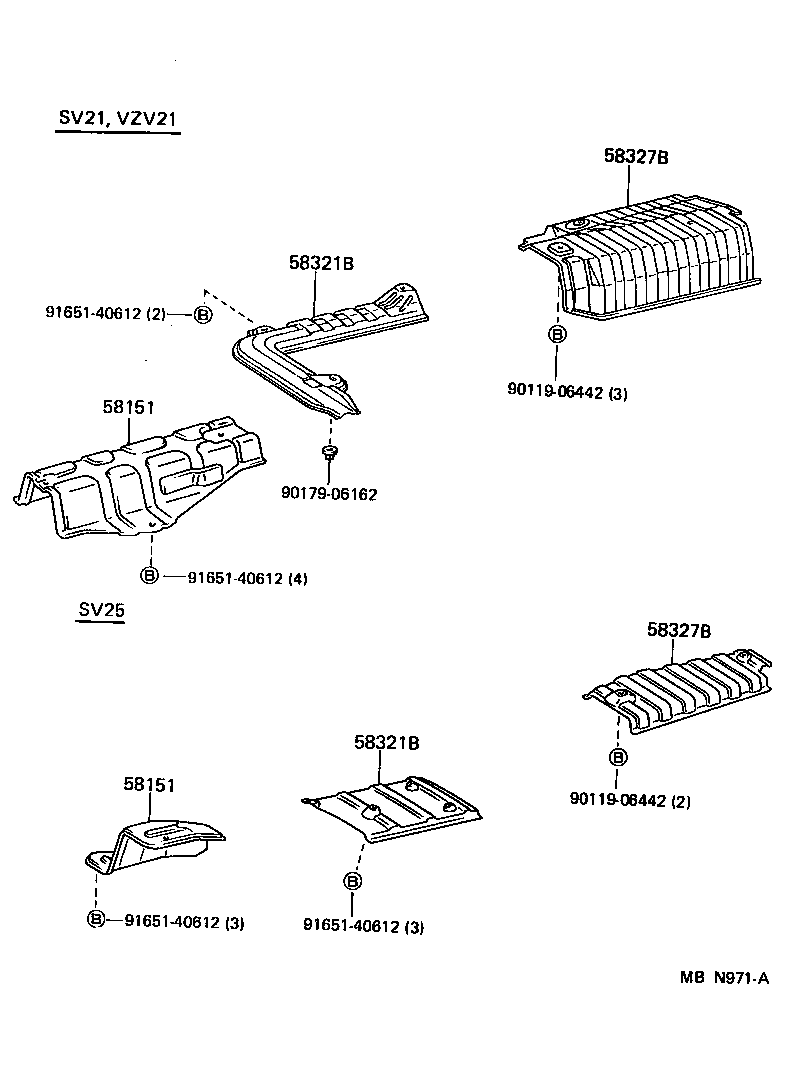

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58152-32030 |
SV25 |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58152-32030 |
SV25 |
1 | ||
| 58321B - INSULATOR, REAR FLOOR HEAT, NO.1 | ||||
| 58321-20040 |
SV25 |
1 | ||
| 58321B - INSULATOR, REAR FLOOR HEAT, NO.1 | ||||
| 58321-20040 |
SV25 |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-32030 |
SV25 |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-32030 |
SV25 |
1 | ||
| Common parts | ||||
| 90119-06442 | ||||
| 90179-06162 | ||||
| 91651-40612 | ||||
