SV25L-UEPDKK (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

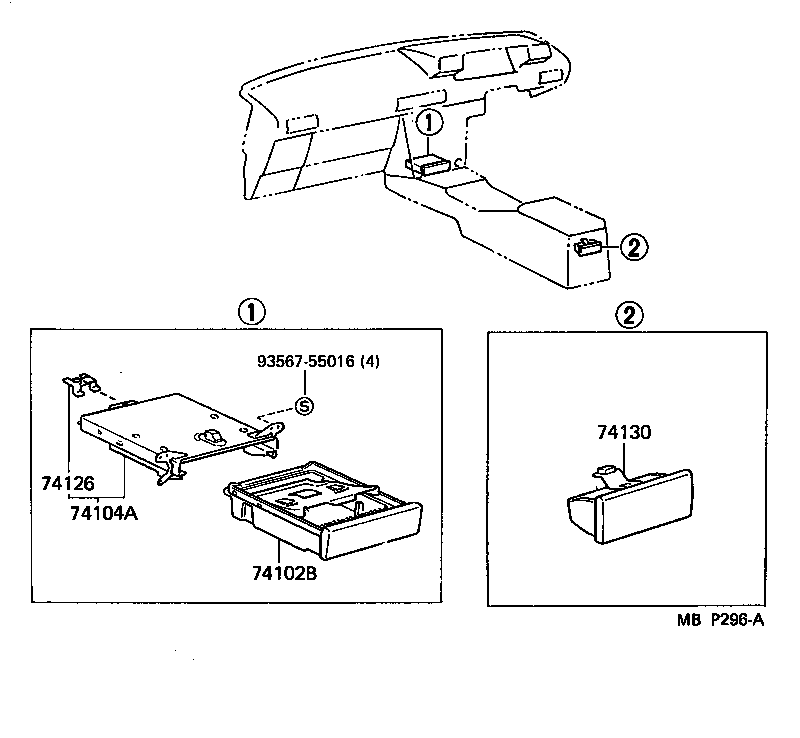

Click highlighted areas on diagram

diagram 74102B 74104A 74126 74130 9356755016
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-32030

SV2#,VZV21

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-32030

SV2#,VZV21

 1
74126 - SUPPORT, FRONT ASH RECEPTACLE RET, NO.3
74126-32010

SV2#,VZV21

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-32010E0

SV2#,VZV21

BROWN,TRIM4#

 1
74109-32010B0

SV2#,VZV21

MEDIUM GRAY,TRIM1#

 1
74109-32010J0

SV2#,VZV21

DARK BLUE,TRIM8#

 1
Common parts
93567-55016
