SV25L-UEPDKK (1988)
Toyota Camry (Jpp)
ILLUST NO. 2 OF 2(8808-8908)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(8908-9008)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9008- )
| Part # | Description | Qty | Price |
|---|

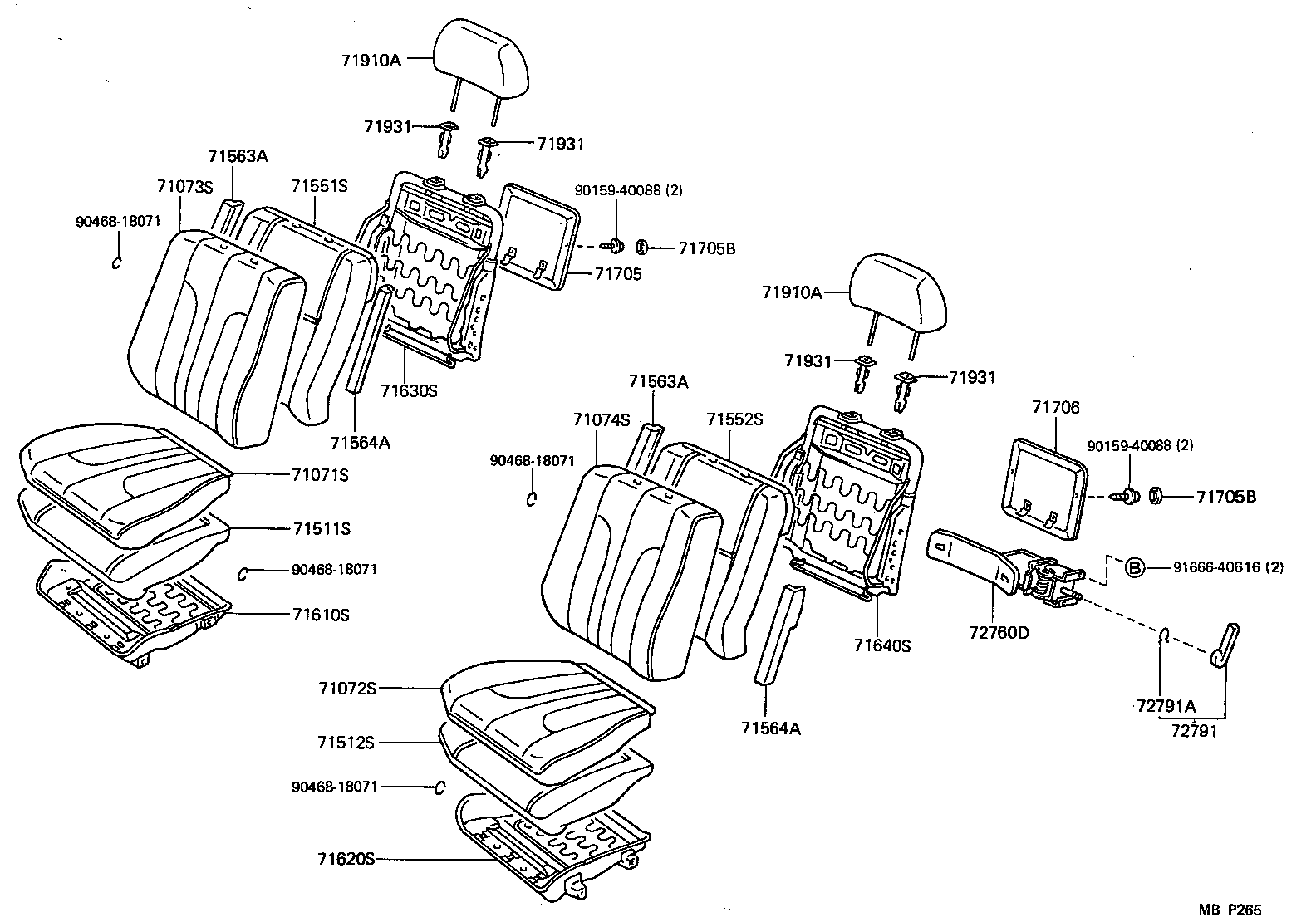

ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3266003 |
SV2#..DX..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-3266004 |
SV2#..DX..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-3266006 |
SV2#..DX..CND BROWN,TRIM4# |
1 | ||
| 71071-3266103 |
SV2#..DX..CND MEDIUM GAY,TRIM1# |
1 | ||
| 71071-3266104 |
SV2#..DX..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-3266106 |
SV2#..DX..CND BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-3263004 |
SV2#..DX..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-3263006 |
SV2#..DX..CND BROWN,TRIM4# |
1 | ||
| 71072-3263003 |
SV2#..DX..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-3263106 |
SV2#..DX..CND BROWN,TRIM4# |
1 | ||
| 71072-3263104 |
SV2#..DX..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-3263103 |
SV2#..DX..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3246004 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 71073-3246006 |
SV2#,VZV21..DX BROWN,TRIM4# |
1 | ||
| 71073-3246003 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-3246103 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-3246104 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 71073-3246106 |
SV2#,VZV21..DX BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-3227004 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 71074-3227006 |
SV2#,VZV21..DX BROWN,TRIM4# |
1 | ||
| 71074-3227003 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-3227103 |
SV25..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-3227104 |
SV25..DX DARK BLUE,TRIM8# |
1 | ||
| 71074-3227106 |
SV25..DX BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-32130 |
SV2#,VZV21..CND |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-32130 |
SV2#,VZV21..CND |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-32100 |
SV2#,VZV21 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-32100 |
SV2#,VZV21 |
1 | ||
| 71563A - PAD, FRONT SEAT BACK SIDE, RH | ||||
| 71563-32030 |
SV2#,VZV21 |
2 | ||
| 71563A - PAD, FRONT SEAT BACK SIDE, RH | ||||
| 71563-32030 |
SV2#,VZV21 |
2 | ||
| 71564A - PAD, FRONT SEAT BACK SIDE, LH | ||||
| 71564-32030 |
SV2#,VZV21 |
2 | ||
| 71564A - PAD, FRONT SEAT BACK SIDE, LH | ||||
| 71564-32030 |
SV2#,VZV21 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-32030 |
SV2#,VZV21 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-32050 |
SV2#,VZV21..DX,LE |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-32140 |
SV2#,VZV21 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-32140 |
SV2#,VZV21..DX,STD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3230003 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
4 | ||
| 71910-3230006 |
SV2#,VZV21..DX BROWN,TRIM4# |
4 | ||
| 71910-3230104 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
2 | ||
| 71910-3230004 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
4 | ||
| 71910-3230106 |
SV2#,VZV21..DX BROWN,TRIM4# |
2 | ||
| 71910-3230103 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-3230003 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
4 | ||
| 71910-3230006 |
SV2#,VZV21..DX BROWN,TRIM4# |
4 | ||
| 71910-3230104 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
2 | ||
| 71910-3230004 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
4 | ||
| 71910-3230106 |
SV2#,VZV21..DX BROWN,TRIM4# |
2 | ||
| 71910-3230103 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10060B0 |
SV2#,VZV21 W(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060E0 |
SV2#,VZV21 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010B0 |
SV2#,VZV21 W/O(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-10010J0 |
SV2#,VZV21 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10060J0 |
SV2#,VZV21 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10010E0 |
SV2#,VZV21 W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10060B0 |
SV2#,VZV21 W(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060E0 |
SV2#,VZV21 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010B0 |
SV2#,VZV21 W/O(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-10010J0 |
SV2#,VZV21 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10060J0 |
SV2#,VZV21 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10010E0 |
SV2#,VZV21 W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10060B0 |
SV2#,VZV21 W(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060E0 |
SV2#,VZV21 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010B0 |
SV2#,VZV21 W/O(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-10010J0 |
SV2#,VZV21 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10060J0 |
SV2#,VZV21 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10010E0 |
SV2#,VZV21 W/O(LOCK),BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10060B0 |
SV2#,VZV21 W(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71930-10060E0 |
SV2#,VZV21 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931-10010B0 |
SV2#,VZV21 W/O(LOCK),MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-10010J0 |
SV2#,VZV21 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-10060J0 |
SV2#,VZV21 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-10010E0 |
SV2#,VZV21 W/O(LOCK),BROWN,TRIM4# |
2 | ||
| Common parts | ||||
| 90159-40088 | ||||
| 90468-18071 | ||||
| 91666-40616 | ||||

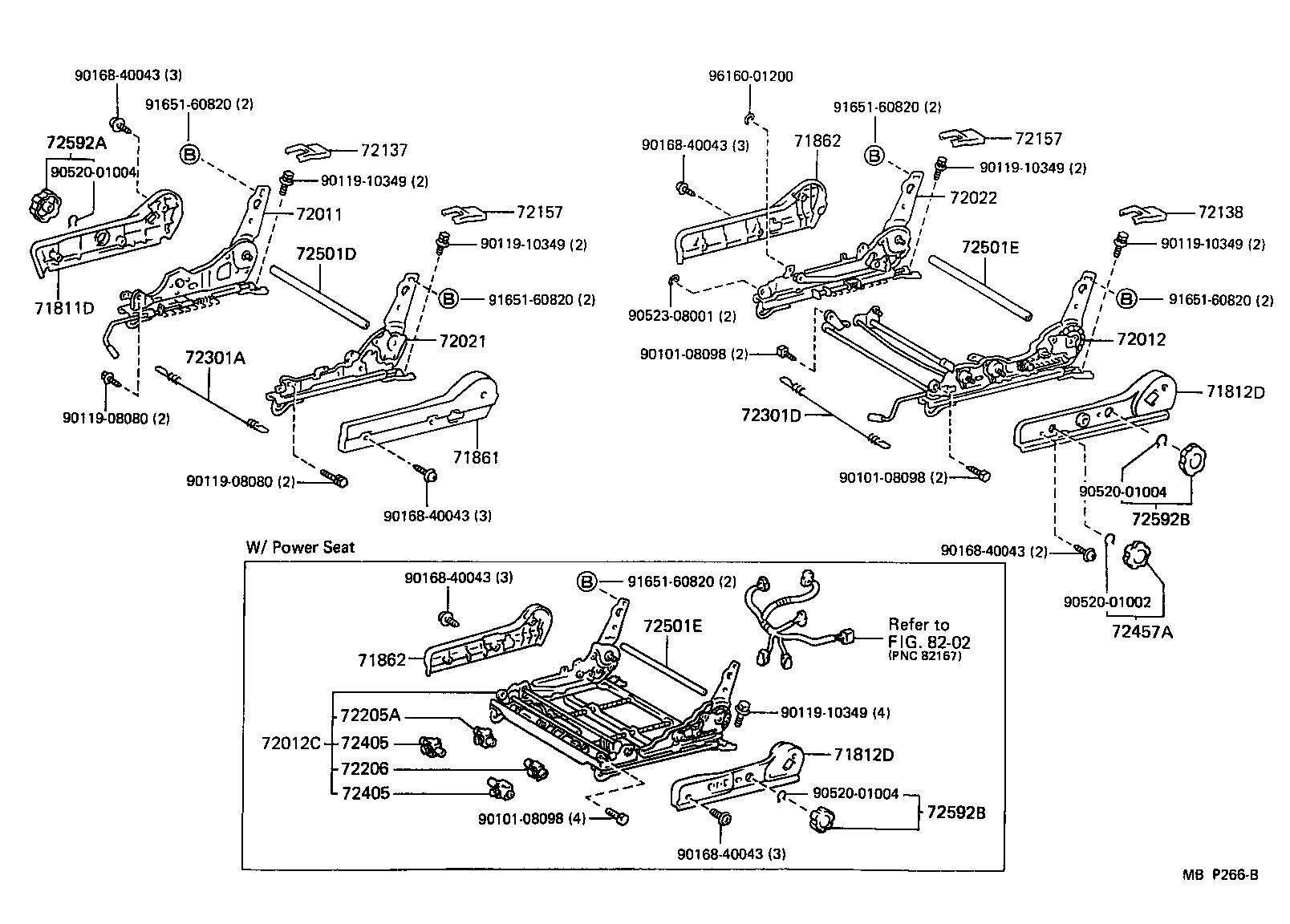

ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-3207006 |
SV2#,VZV21..CND BROWN,TRIM4# |
1 | ||
| 71811-3207004 |
SV2#,VZV21..CND DARK BLUE,TRIM8# |
1 | ||
| 71811-3207003 |
SV2#,VZV21..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3208006 |
SV2#,VZV21..(DX,LE)..CND BROWN,TRIM4# |
1 | ||
| 71812-3208004 |
SV2#,VZV21..(DX,LE)..CND DARK BLUE,TRIM8# |
1 | ||
| 71812-3208003 |
SV2#,VZV21..(DX,LE)..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-3208006 |
SV2#,VZV21..(DX,LE)..CND BROWN,TRIM4# |
1 | ||
| 71812-3208004 |
SV2#,VZV21..(DX,LE)..CND DARK BLUE,TRIM8# |
1 | ||
| 71812-3208003 |
SV2#,VZV21..(DX,LE)..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-3204004 |
SV2#,VZV21..CND DARK BLUE,TRIM8# |
1 | ||
| 71861-3204003 |
SV2#,VZV21..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 71861-3204006 |
SV2#,VZV21..CND BROWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3205003 |
SV2#,VZV21..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 71862-3205004 |
SV2#,VZV21..CND DARK BLUE,TRIM8# |
1 | ||
| 71862-3205006 |
SV2#,VZV21..CND BROWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-3205003 |
SV2#,VZV21..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 71862-3205004 |
SV2#,VZV21..CND DARK BLUE,TRIM8# |
1 | ||
| 71862-3205006 |
SV2#,VZV21..CND BROWN,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-32070 |
SV2#,VZV21..CND |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-32080 |
SV2#,VZV21..DX,LE |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-32070 |
SV2#,VZV21..CND |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-32070 |
SV2#,VZV21..DX,LE |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-32020E0 |
SV2#,VZV21 BROWN,TRIM4# |
1 | ||
| 72137-32020B0 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-32020J0 |
SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-32020B0 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 72137-32020J0 |
SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 72137-32020E0 |
SV2#,VZV21 BROWN,TRIM4# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-32010B0 |
SV2#,VZV21 MEDIUM GRAY,TRIM1#,RH |
1 | ||
| 72157-32010E0 |
SV2#,VZV21 BROWN,TRIM4#,RH |
1 | ||
| 72157-32010J0 |
SV2#,VZV21 DARK BLUE,TRIM8#,RH |
1 | ||
| 72158-32010J0 |
SV2#,VZV21 DARK BLUE,TRIM8#,LH |
1 | ||
| 72158-32010E0 |
SV2#,VZV21 BROWN,TRIM4#,LH |
1 | ||
| 72158-32010B0 |
SV2#,VZV21 MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-32010B0 |
SV2#,VZV21 MEDIUM GRAY,TRIM1#,RH |
1 | ||
| 72157-32010E0 |
SV2#,VZV21 BROWN,TRIM4#,RH |
1 | ||
| 72157-32010J0 |
SV2#,VZV21 DARK BLUE,TRIM8#,RH |
1 | ||
| 72158-32010J0 |
SV2#,VZV21 DARK BLUE,TRIM8#,LH |
1 | ||
| 72158-32010E0 |
SV2#,VZV21 BROWN,TRIM4#,LH |
1 | ||
| 72158-32010B0 |
SV2#,VZV21 MEDIUM GRAY,TRIM1#,LH |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-32020 |
SV2#,VZV21 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-32020 |
SV2#,VZV21 |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-22010E0 |
SV2#,VZV21..DX,LE BROWN,TRIM4# |
2 | ||
| 72457-22010B0 |
SV2#,VZV21..DX,LE MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-22010J0 |
SV2#,VZV21..DX,LE DARK BLUE,TRIM8# |
2 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-32020 |
SV2#,VZV21 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-32020 |
SV2#,VZV21 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-32020 |
SV2#,VZV21 |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-14010E0 |
SV2#,VZV21 BROWN,TRIM4# |
1 | ||
| 72592-14010J0 |
SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 72592-14010B0 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-14010B0 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 72592-14010J0 |
SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 72592-14010E0 |
SV2#,VZV21 BROWN,TRIM4# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-14010B0 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 72592-14010J0 |
SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 72592-14010E0 |
SV2#,VZV21 BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90101-08098 | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90520-01002 | ||||
| 90520-01004 | ||||
| 90523-08001 | ||||
| 91651-60820 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
