SV25L-UEPDKK (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )SED

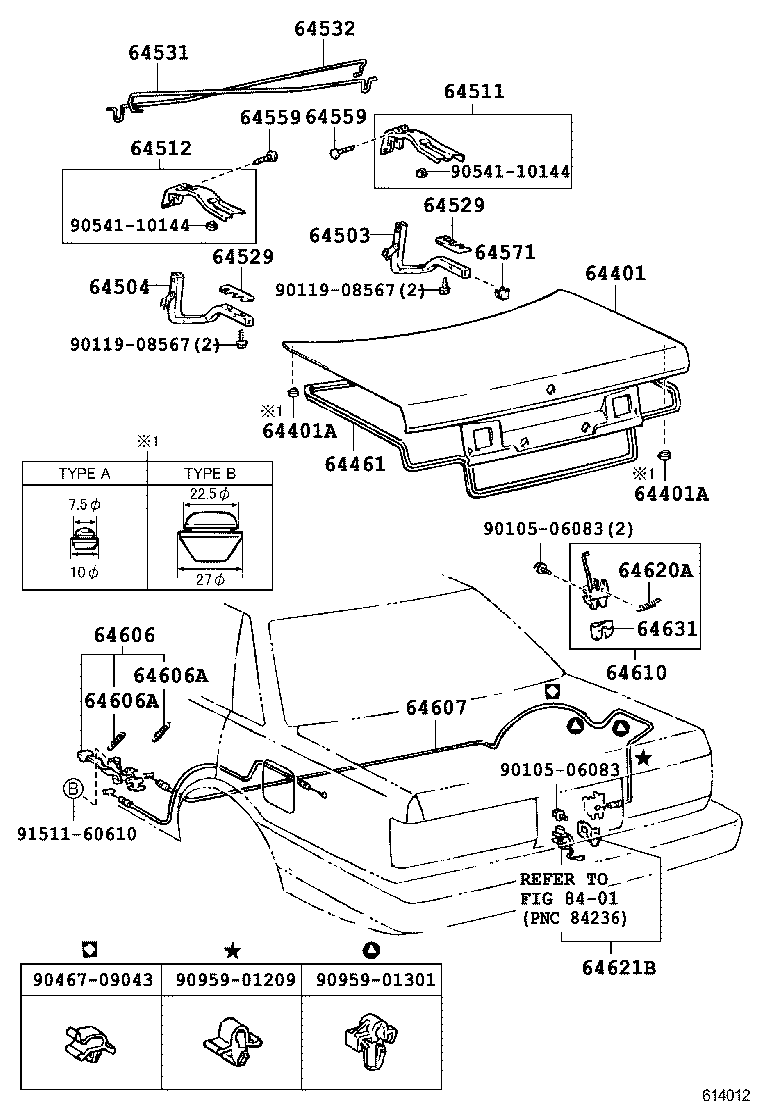

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-32430 |
SV2#,VZV21..SED..(DX,LE) |
1 | ||
| 64401-32080 |
SV2#,VZV21..SED |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-19001 |
SV2#,VZV21..SED TYPE B |
4 | ||
| 90541-06076 |
SV2#,VZV21..SED TYPE A |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-19001 |
SV2#,VZV21..SED TYPE B |
4 | ||
| 90541-06076 |
SV2#,VZV21..SED TYPE A |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-32050 |
SV2#,VZV21..SED |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-32010 |
SV2#,VZV21..SED |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-32010 |
SV2#,VZV21..SED |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-32020 |
SV2#,VZV21..SED |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-32020 |
SV2#,VZV21..SED |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
SV2#,VZV21..SED |
1 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-14010 |
SV2#,VZV21..SED |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-32030 |
SV2#,VZV21..SED |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-32030 |
SV2#,VZV21..SED |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-32010 |
SV2#,VZV21..SED |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-32010 |
SV2#,VZV21..SED |
2 | ||
| 64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64571-30020 |
SV2#,VZV21..SED |
2 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-14060 |
SV2#,VZV21..SED |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
SV2#,VZV21..SED |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
SV2#,VZV21..SED |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-32110 |
SV2#,VZV21..SED |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-32030 |
SV2#,VZV21..SED |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-08001 |
SV2#,VZV21..SED |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64620-20050 |
SV2#,VZV21..SED |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-91D01 |
SV2#,VZV21..SED |
1 | ||
| Common parts | ||||
| 90105-06083 | ||||
| 90119-08567 | ||||
| 90467-09043 | ||||
| 90541-10144 | ||||
| 90959-01209 | ||||
| 90959-01301 | ||||
| 91511-60610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
