SV25L-UEPDKK (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )SV25..4FC

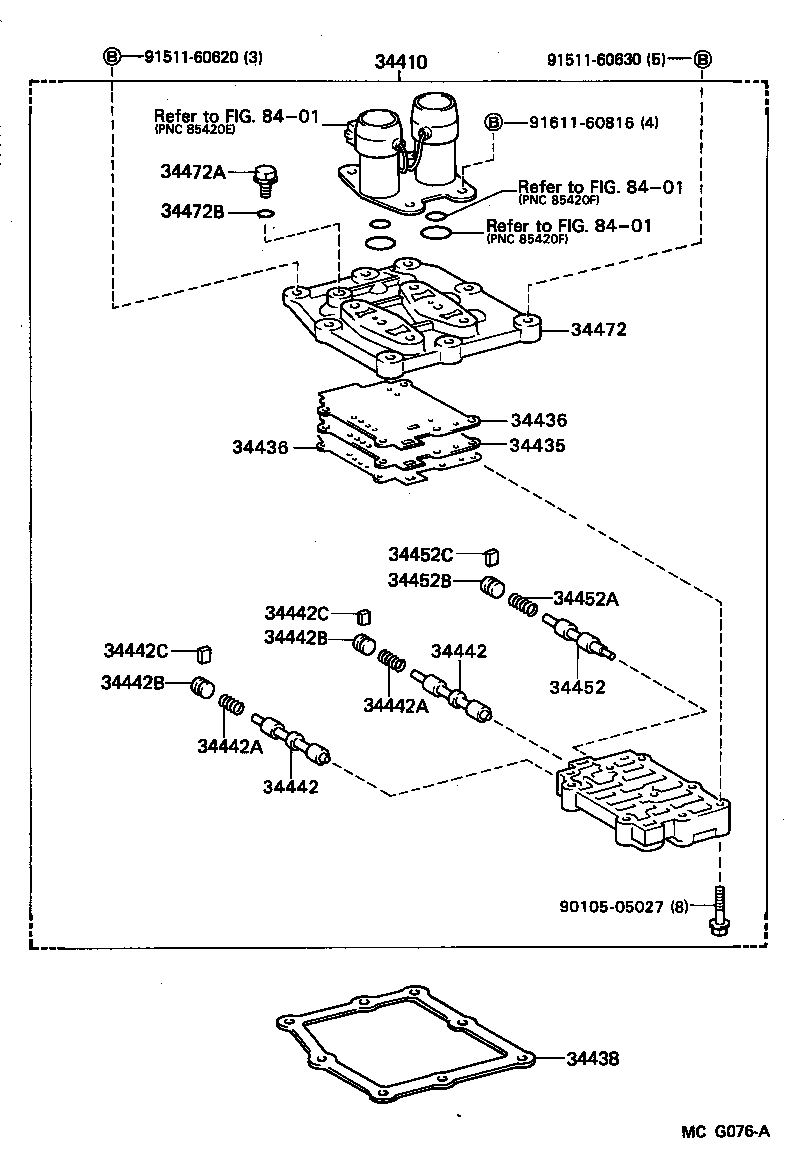

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34410 - BODY ASSY, TRANSFER CONTROL VALVE | ||||
| 34410-32010 |
SV25..4FC |
1 | ||
| 34435 - PLATE, TRANSFER VALVE BODY, LOWER | ||||
| 34435-32010 |
SV25..4FC |
1 | ||
| 34436 - GASKET, TRANSFER LOWER VALVE BODY, NO.1 | ||||
| 34436-32010 |
SV25..4FC |
2 | ||
| 34436 - GASKET, TRANSFER LOWER VALVE BODY, NO.1 | ||||
| 34436-32010 |
SV25..4FC |
2 | ||
| 34438 - GASKET, TRANSFER VALVE BODY | ||||
| 34438-32011 |
SV25 |
1 | ||
| 34438-32010 |
SV25..4FC |
1 | ||
| 34442 - VALVE, LOW-HIGH SHIFT | ||||
| 34442-32010 |
SV25..4FC |
2 | ||
| 34442 - VALVE, LOW-HIGH SHIFT | ||||
| 34442-32010 |
SV25..4FC |
2 | ||
| 34442A - SPRING, COMPRESSION(FOR LOW-HIGH SHIFT VALVE) | ||||
| 90501-07070 |
SV25..4FC |
2 | ||
| 34442A - SPRING, COMPRESSION(FOR LOW-HIGH SHIFT VALVE) | ||||
| 90501-07070 |
SV25..4FC |
2 | ||
| 34442B - PLUG(FOR LOW-HIGH SHIFT VALVE) | ||||
| 90339-04028 |
SV25..4FC |
2 | ||
| 90339-04002 |
SV25..4FC |
2 | ||
| 34442B - PLUG(FOR LOW-HIGH SHIFT VALVE) | ||||
| 90339-04028 |
SV25..4FC |
2 | ||
| 90339-04002 |
SV25..4FC |
2 | ||
| 34442C - KEY, STRAIGHT(FOR LOW-HIGH SHIFT VALVE) | ||||
| 90282-03011 |
SV25..4FC |
2 | ||
| 34442C - KEY, STRAIGHT(FOR LOW-HIGH SHIFT VALVE) | ||||
| 90282-03011 |
SV25..4FC |
2 | ||
| 34452 - VALVE, TRANSFER DIRECT CLUTCH MODULATOR | ||||
| 34452-32010 |
SV25..4FC |
1 | ||
| 34452A - SPRING (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE) | ||||
| 90501-06048 |
SV25..4FC |
1 | ||
| 34452B - PLUG (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE) | ||||
| 90339-04017 |
SV25..4FC |
1 | ||
| 34452C - KEY, STRAIGHT(FOR TRANSFER DIRECT CLUTCH MODULATOR VALV | ||||
| 90282-03011 |
SV25..4FC |
1 | ||
| 34472 - COVER, TRANSFER VALVE BODY | ||||
| 34472-32010 |
SV25..4FC |
1 | ||
| 34472A - PLUG (FOR TRANSFER VALVE BODY COVER) | ||||
| 90341-08001 |
SV25..4FC |
1 | ||
| 34472B - RING, O (FOR TRANSFER VALVE BODY COVER PLUG) | ||||
| 90301-06196 |
SV25..4FC |
1 | ||
| Common parts | ||||
| 90105-05027 | ||||
| 91511-60620 | ||||
| 91511-60630 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
