SV25L-UEPDKK (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SV25..4FC

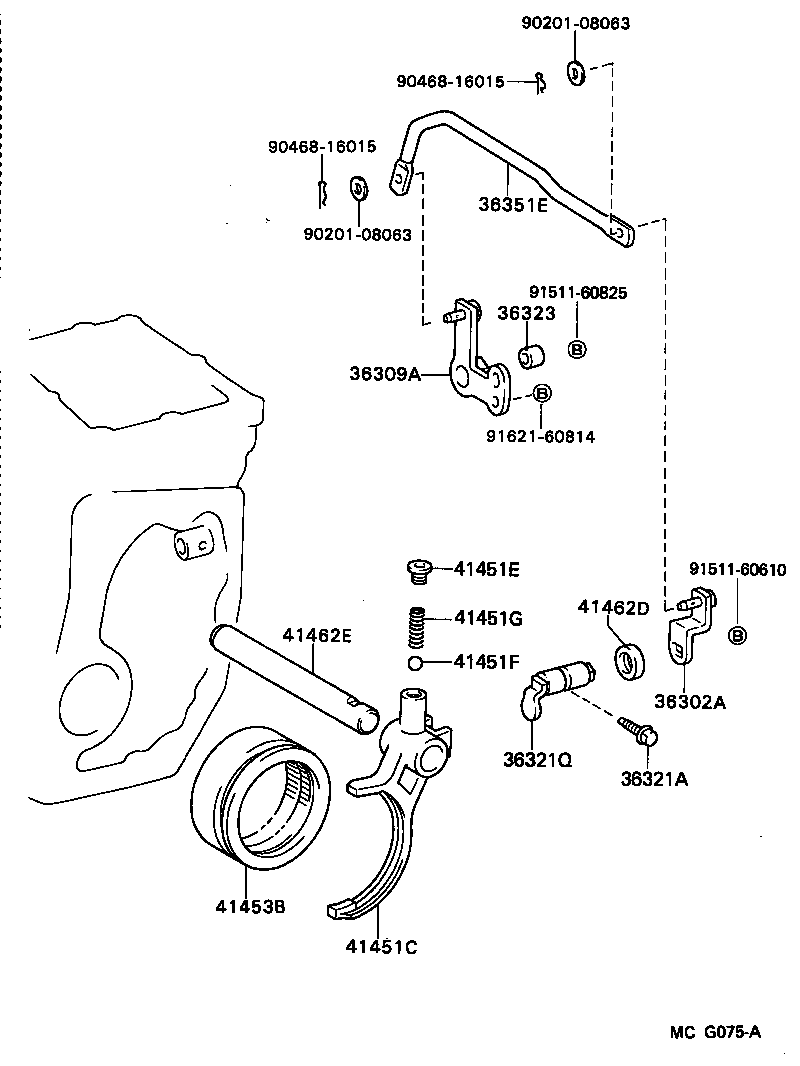

Click highlighted areas on diagram

diagram 36302A 36309A 36321A 36321Q 36323 36351E 41451C 41451E 41451F 41451G 41453B 41462D 41462E 9020108063 9020108063 9046816015 9046816015 9151160610 9151160825 9162160814
Part # Description Qty Price
36302A - LEVER SUB-ASSY, TRANSFER SHIFT, NO.1
36302-32010

SV25..4FC

 1
36309A - LEVER SUB-ASSY, TRANSFER SHIFT, OUTER
36309-32010

SV25..4FC

 1
36321A - BOLT (FOR TRANSFER SHIFT LEVER)
90105-05020

SV25..4FC

 1
36321Q - LEVER, TRANSFER SHIFT
36321-32010

SV25..4FC

 1
36323 - GUIDE, TRANSFER SHIFT LEVER
36323-32010

SV25..4FC

 1
36351E - ROD, TRANSFER SHIFT
36351-32010

SV25..4FC

 1
41451C - FORK, DIFFERENTIAL LOCK SHIFT
41451-32010

SV25..4FC

 1
41451E - PLUG (FOR DIFFERENTIAL LOCK SHIFT FORK)
90341-10010

SV25..4FC

 1
41451F - BALL (FOR DIFFERENTIAL LOCK SHIFT FORK)
90360-08009

SV25..4FC

 1
41451G - SPRING, COMPRESSION (FOR DIFFERENTIAL LOCK SHIFT FORK)
90501-14110

SV25..4FC

 1
41453B - SLEEVE, DIFFERENTIAL LOCK
41453-12030

SV25..4FC

 1
41462D - SEAL, OIL (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT)
90311-14009

SV25..4FC

 1
41462E - SHAFT, DIFFERENTIAL LOCK SHIFT FORK
41462-32010

SV25..4FC

 1
Common parts
90201-08063
90468-16015
91511-60610
91511-60825
91621-60814
