SV25L-UEPDKK (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3SFE

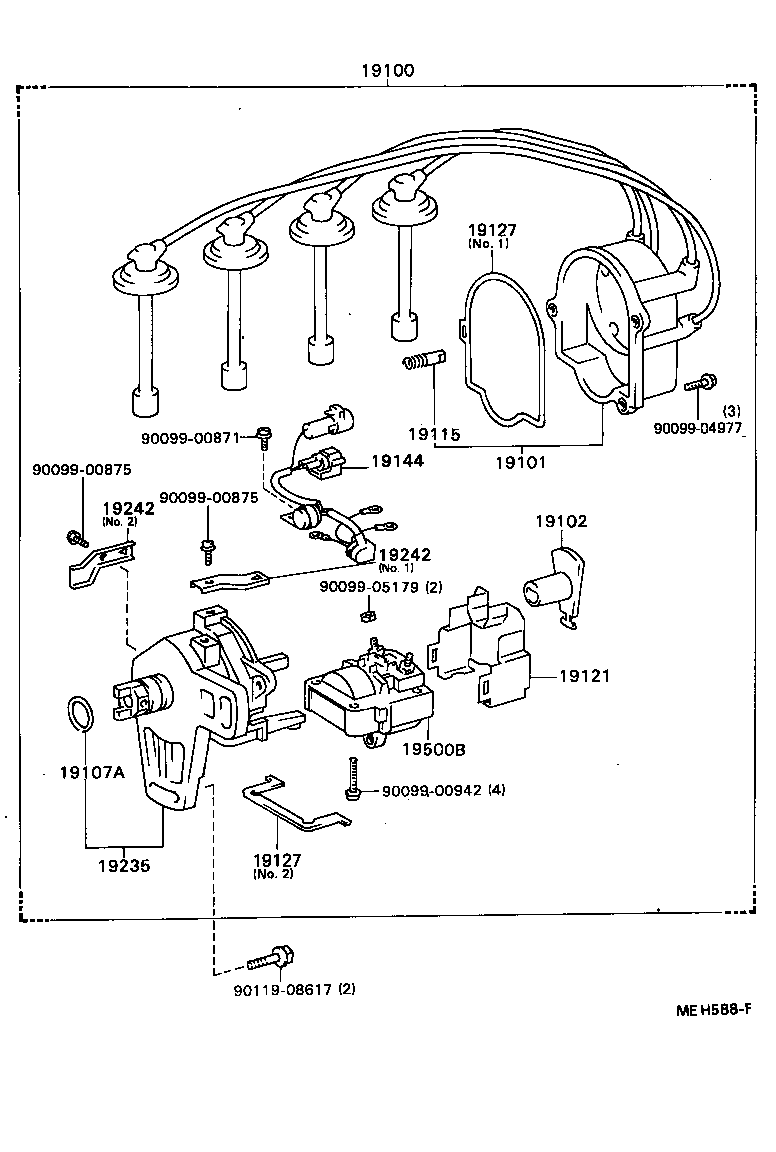

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19040-74031 |
3SFE..SV2# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-74030 |
3SFE..SV2# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-11031 |
3SFE..SV2# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96711-35030 |
3SFE..SV2# |
1 | ||
| 90099-14091 |
3SFE..SV2# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
3SFE..SV2# |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63040 |
3SFE..SV2# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63020 |
3SFE..SV2# NO.2 |
1 | ||
| 19127-63010 |
3SFE..SV2# NO.1 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63020 |
3SFE..SV2# NO.2 |
1 | ||
| 19127-63010 |
3SFE..SV2# NO.1 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-74060 |
3SFE..SV2# |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-74130 |
3SFE..SV2# |
1 | ||
| 19235-74060 |
3SFE..SV2# |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-74020 |
3SFE..SV2# NO.1 |
1 | ||
| 19242-74030 |
3SFE..SV2# NO.2 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-74020 |
3SFE..SV2# NO.1 |
1 | ||
| 19242-74030 |
3SFE..SV2# NO.2 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02135 |
3SFE..SV2# |
1 | ||
| Common parts | ||||
| 90099-00871 | ||||
| 90099-00875 | ||||
| 90099-00942 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90119-08617 | ||||
