SV25L-UEPDKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

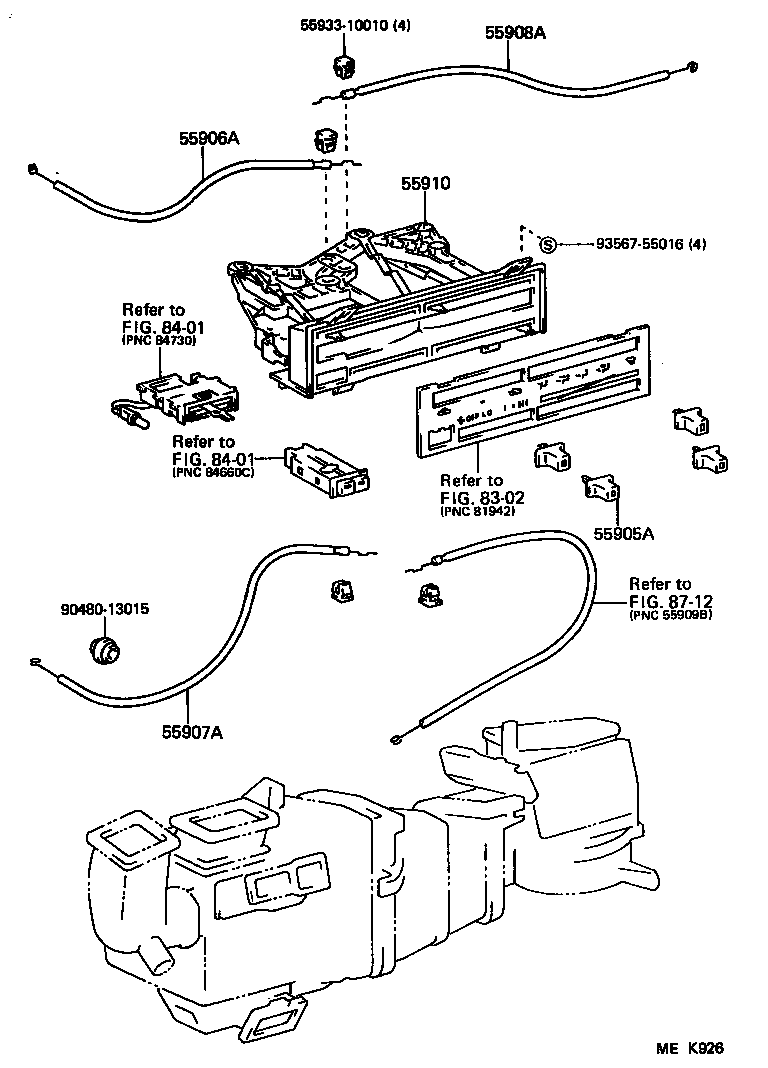

CONTROL

diagram 55905A 55906A 55907A 55908A 55910 5593310010 8302 8401 8401 8712 9048013015 9356755016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-32190

SV2#,VZV21..DX,STD

LEVER TYPE

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-32071

SV2#,VZV21..DX,STD

 1
55906-32070

SV2#,VZV21..DX,STD

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-32041

SV2#,VZV21..(DX,STD)..USA

 1
55907-32040

SV2#,VZV21..(DX,STD)..USA

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-32060

SV2#,VZV21..(DX,STD)..USA

 1
55908-32061

SV2#,VZV21..(DX,STD)..USA

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-32070

SV2#,VZV21..DX,STD

 1
55910-32071

SV2#,VZV21..DX,STD

 1
Common parts
55933-10010
90480-13015
93567-55016
Linked diagrams
8302
8401
8712

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

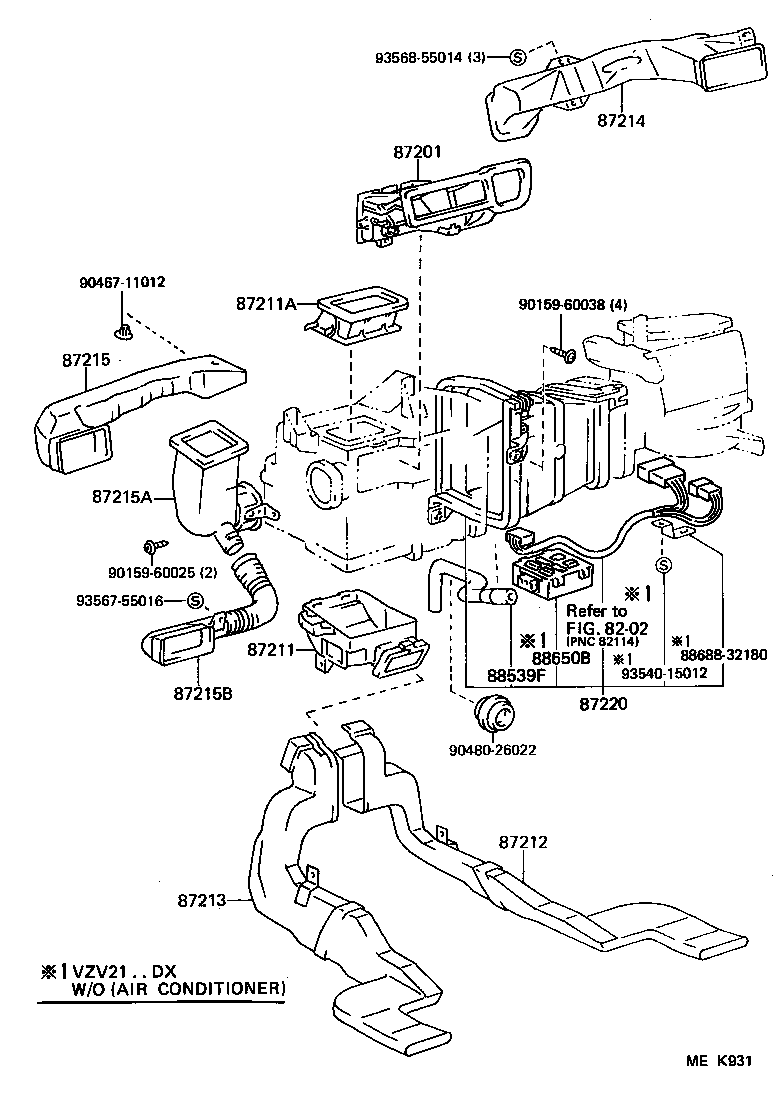

AIR DUCT

diagram 8202 87201 87211 87211A 87212 87213 87214 87215 87215A 87215B 87220 88539F 88650B 8868832180 9015960025 9015960038 9046711012 9048026022 9354015012 9356755016 9356855014
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-32150

SV2#,VZV21

 1
87211 - DUCT, AIR, NO.1
87201-32171

SV2#,VZV21

 1
87211A - DUCT, AIR, NO.2
87211-32040

SV2#,VZV21

 1
87212 - DUCT, AIR, REAR NO.1
87212-32020

SV25

 1
87213 - DUCT, AIR, REAR NO.2
87213-32010

SV2#,VZV21

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55086-32041

SV2#,VZV21

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55084-32050

SV2#,VZV21

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55085-32100

SV2#;VZV21..DX

W(AIR CONDITIONER)

 1
55085-32080

SV2#;VZV21..DX

 1
87215B - DUCT, AIR, SIDE NO.3 LH
55088-32050

SV2#,VZV21

 1
87220 - DUCT ASSY, AIR
87220-32020

SV2#

 1
88539F - HOSE, DRAIN
88539-32030

SV2#;VZV21..DX

 1
Common parts
88688-32180
90159-60025
90159-60038
90467-11012
90480-26022
93540-15012
93567-55016
93568-55014
Linked diagrams
8202
