SV25L-UEPDKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )SED

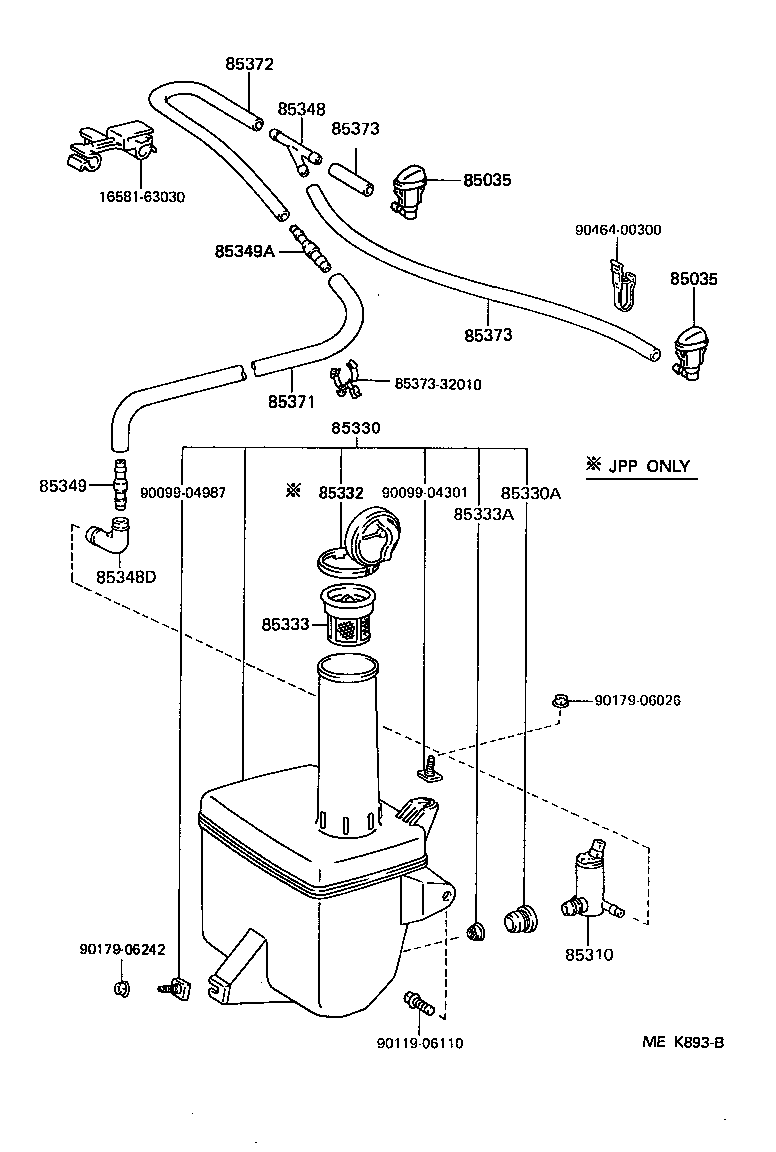

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-32140 |
SV2#,VZV21 LH |
1 | ||
| 85035-32120 |
SV2#,VZV21 RH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-32140 |
SV2#,VZV21 LH |
1 | ||
| 85035-32120 |
SV2#,VZV21 RH |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-14080 |
SV2#,VZV21..SED FRONT,NIPPONDENSO |
1 | ||
| 85310-03010 |
SV2#,VZV21..SED |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-03010 |
SV2#,VZV21..SED DELCO |
1 | ||
| 85331-32161 |
SV2#,VZV21..SED NIPPONDENSO |
1 | ||
| 85331-32161 |
SV2#,VZV21..SED |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32103 |
SV2#,VZV21..SED |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-32161 |
SV2#,VZV21 |
1 | ||
| 85332-03010 |
SV2#,VZV21..SED DELCO |
1 | ||
| 85332-32161 |
SV2#,VZV21..SED NIPPONDENSO |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-03010 |
SV2#,VZV21..SED DELCO |
1 | ||
| 85333-12470 |
SV2#,VZV21 |
1 | ||
| 85333-12470 |
SV2#,VZV21..SED NIPPONDENSO |
1 | ||
| 85333A - FILTER, WINDSHIELD WASHER JAR, NO.2 | ||||
| 85333-20020 |
SV2#,VZV21 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
SV2#,VZV21 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-32110 |
SV2#,VZV21 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-20010 |
SV2#,VZV21 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-14010 |
SV2#,VZV21 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33192 |
SV2#,VZV21 L=1060 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
SV2#,VZV21 L=1450 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
SV2#,VZV21 *H,L=50,LH,RH |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
SV2#,VZV21 *H,L=50,LH,RH |
1 | ||
| Common parts | ||||
| 16581-63030 | ||||
| 85373-32010 | ||||
| 90099-04301 | ||||
| 90099-04987 | ||||
| 90119-06110 | ||||
| 90179-06026 | ||||
| 90179-06242 | ||||
| 90464-00300 | ||||
