SV25L-UEPDKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

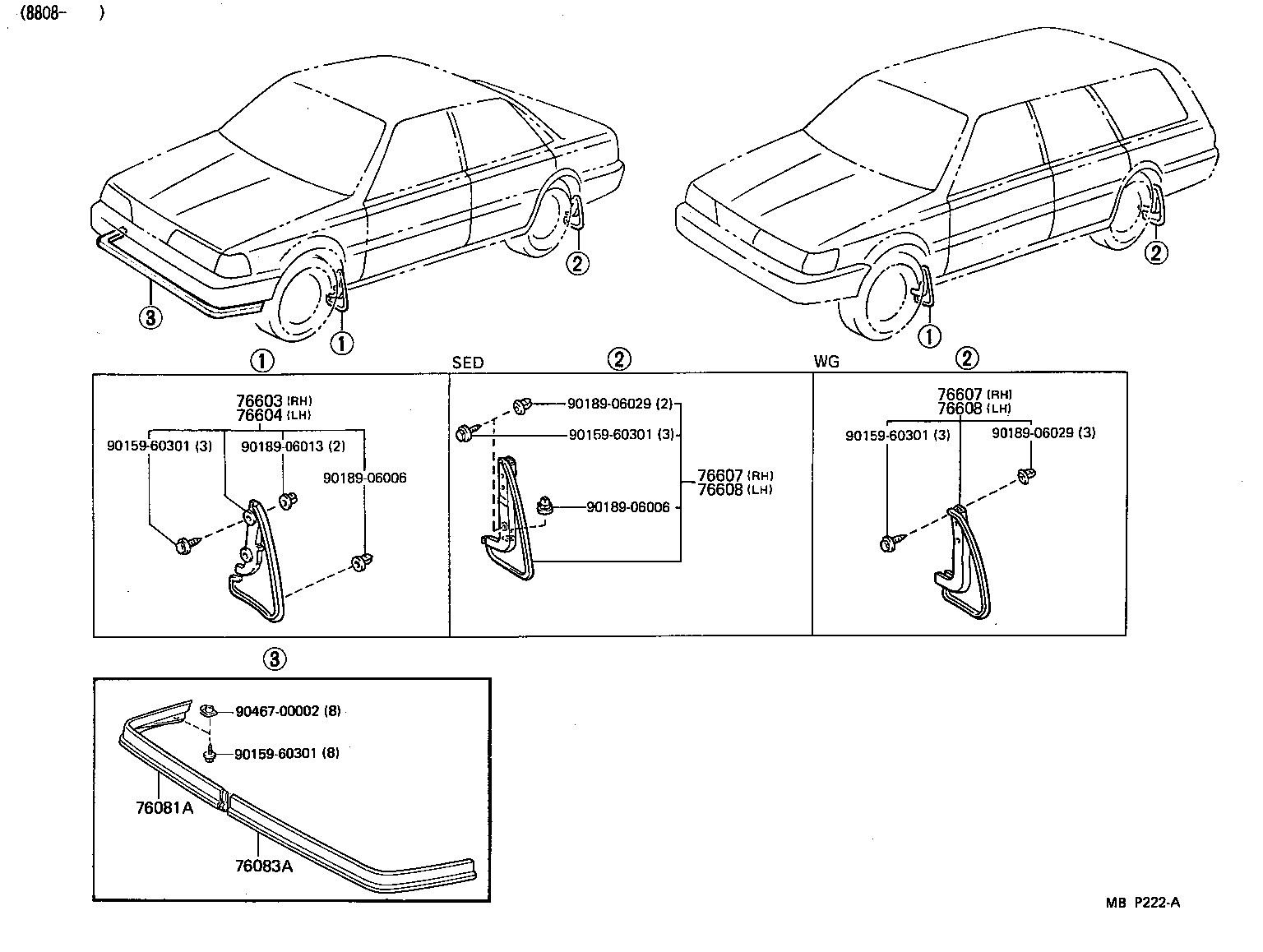

Click highlighted areas on diagram

diagram 76081A 76083A 76603 76604 76607 76607 76608 76608 9015960301 9015960301 9015960301 9015960301 9018906006 9018906006 9018906013 9018906029 9018906029 9046700002
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-39095

SV21,VZV21..WG;SV2#,VZV21..SED..(DX,STD)

 1
76621-39095

SV2#,VZV21

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-39095

SV2#,VZV21

 1
76622-39095

SV21,VZV21..WG;SV2#,VZV21..SED..(DX,STD)

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-39135

SV2#,VZV21..SED

 1
76625-39135

SV2#,VZV21..SED..(DX,STD)

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-39135

SV2#,VZV21..SED

 1
76625-39135

SV2#,VZV21..SED..(DX,STD)

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-39125

SV2#,VZV21..SED

 1
76626-39125

SV2#,VZV21..SED..(DX,STD)

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-39125

SV2#,VZV21..SED

 1
76626-39125

SV2#,VZV21..SED..(DX,STD)

 1
Common parts
90159-60301
90189-06006
90189-06013
90189-06029
90467-00002
