SV25L-UEMDKK (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Aug 1990
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SV2#

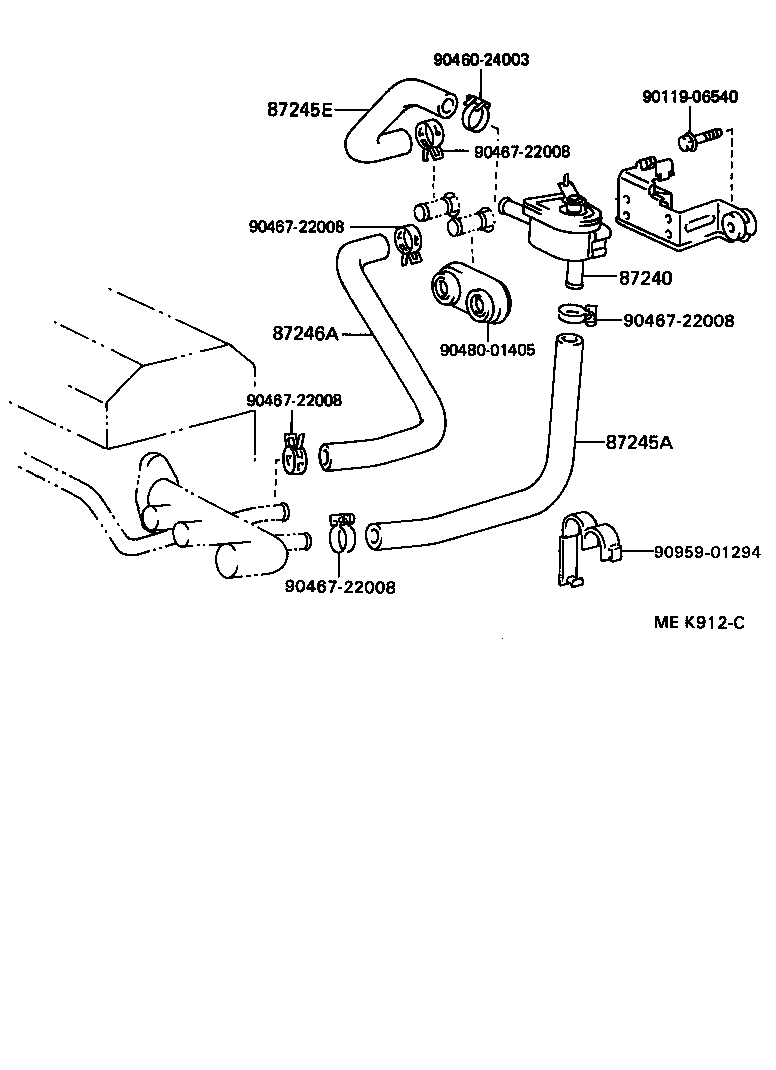

Click highlighted areas on diagram

diagram 87240 87245A 87245E 87246A 9011906540 9046024003 9046722008 9046722008 9046722008 9046722008 9046722008 9048001405 9095901294
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-32030

SV2#,VZV21

 1
87245A - HOSE, HEATER WATER, INLET A
87245-32160

SV2#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-32080

SV2#,VZV21

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-32100

SV2#

 1
Common parts
90119-06540
90460-24003
90467-22008
90480-01405
90959-01294
