SV25L-UEMDKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Aug 1990
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )5F

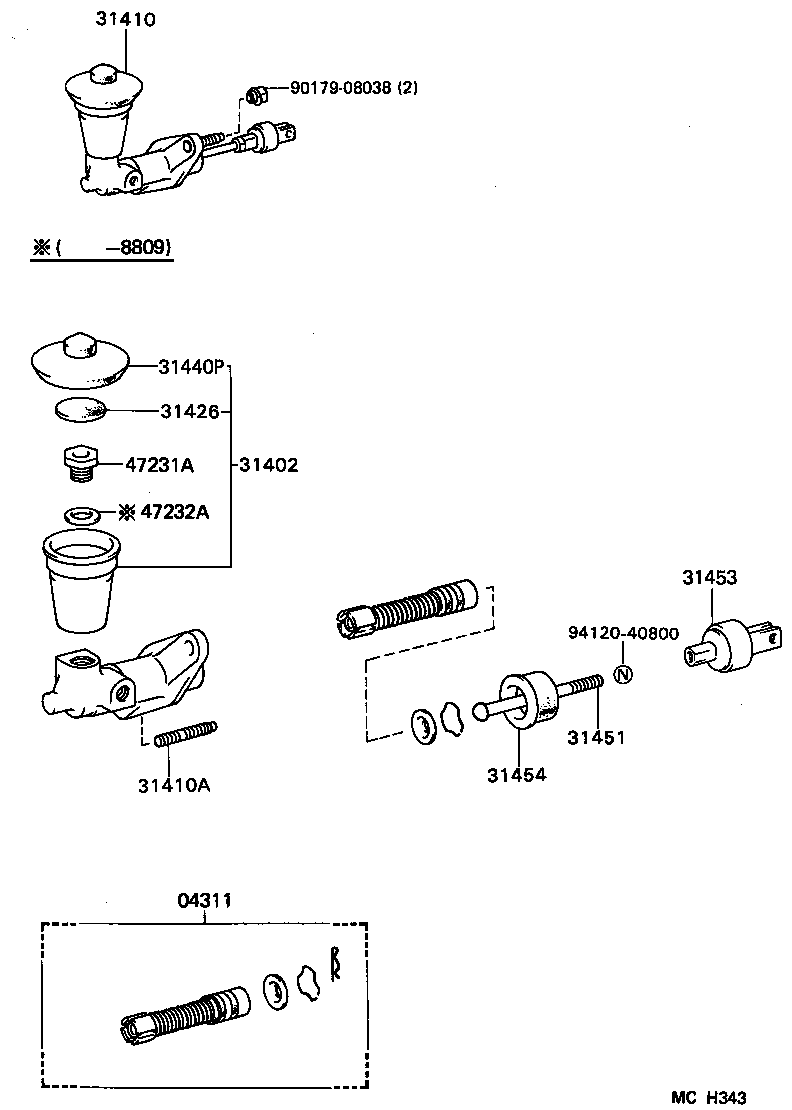

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-32030 |
SV2#,VZV21..5F |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-30030 |
SV2#,VZV21..5F |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-32032 |
SV2#,VZV21..5F |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 90116-08146 |
SV2#,VZV21..5F |
2 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
SV2#,VZV21..5F |
1 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
SV2#,VZV21..5F |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-32020 |
SV2#,VZV21..5F |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-28011 |
SV2#,VZV21..5F |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-24010 |
SV2#,VZV21..5F |
1 | ||
| 47231A - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
SV2#,VZV21..5F |
1 | ||
| 47232A - WASHER, CLUTCH MASTER CYLINDER RESERVOIR SET BOLT | ||||
| 47232-30010 |
SV2#,VZV21..5F |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 94120-40800 | ||||
