SV21LG-UWPNKK (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )WG

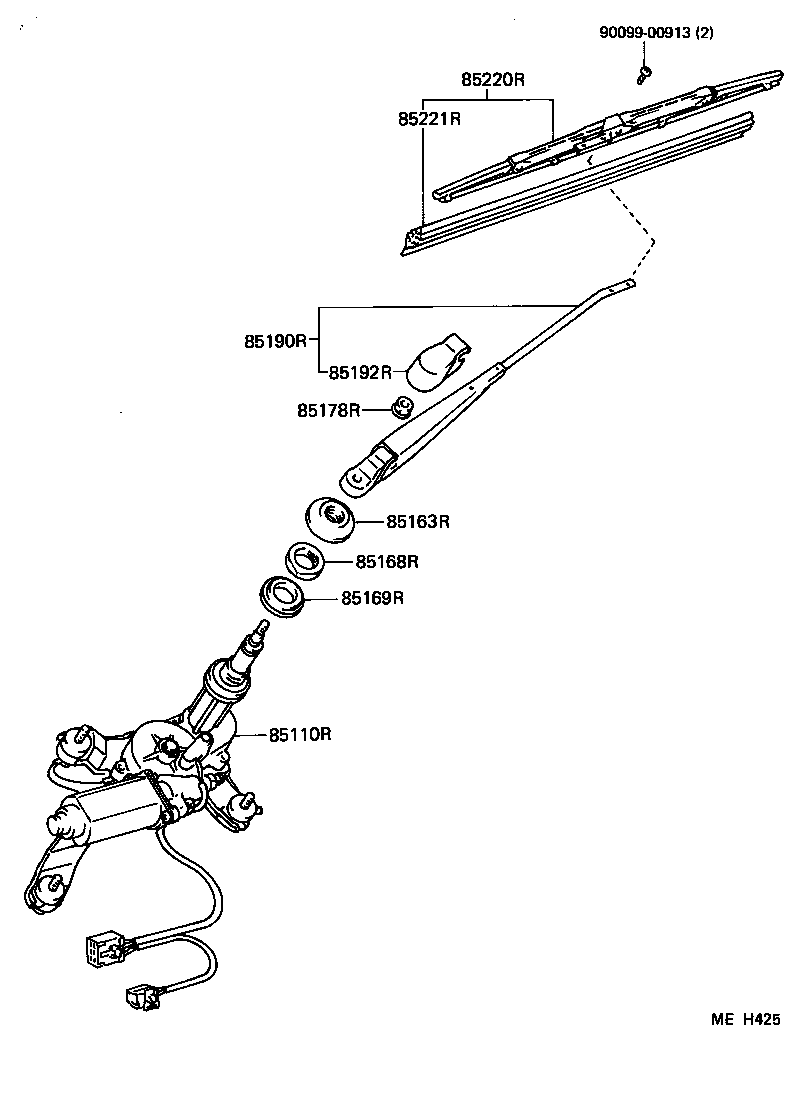

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85110-32161 |
SV21,VZV21..WG |
1 | ||
| 85110-32160 |
SV21,VZV21..WG |
1 | ||
| 85163R - PACKING, REAR WIPER PIVOT, NO.1 | ||||
| 85134-32260 |
SV21,VZV21..WG |
1 | ||
| 85134-32261 |
SV21,VZV21..WG |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-05157 |
SV21,VZV21..WG |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85179-32260 |
SV21,VZV21..WG |
1 | ||
| 85179-32261 |
SV21,VZV21..WG |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
SV21,VZV21..WG |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-32210 |
SV21,VZV21..WG |
1 | ||
| 85190-32211 |
SV21,VZV21..WG |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-13060 |
SV21,VZV21..WG |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-22661 |
SV21,VZV21..WG |
1 | ||
| 85220-22660 |
SV21,VZV21..WG |
1 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85221-10060 |
SV21,VZV21..WG |
1 | ||
| Common parts | ||||
| 90099-00913 | ||||
