SV21LG-UWPNKK (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )WG

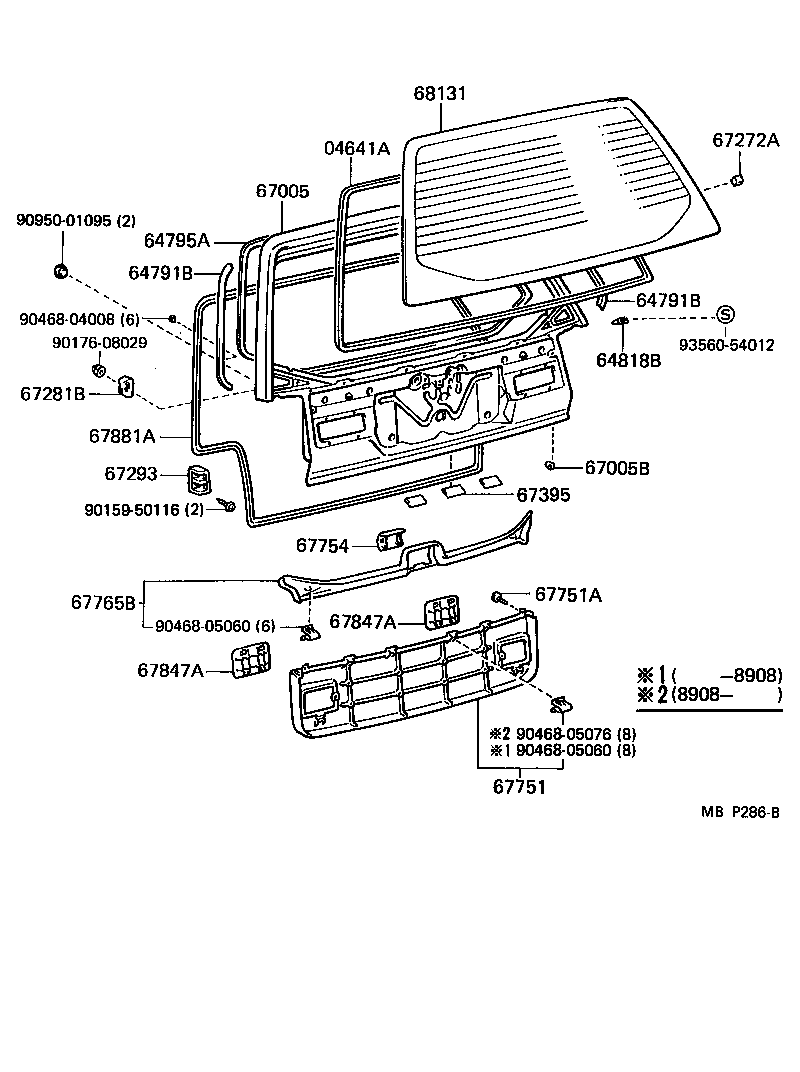

Click highlighted areas on diagram

diagram 04641A 64791B 64791B 64795A 64818B 67005 67005B 67272A 67281B 67293 67395 67751 67751A 67754 67765B 67847A 67847A 67881A 68131 9015950116 9017608029 9046804008 9046805060 9046805060 9046805076 9095001095 9356054012
Part # Description Qty Price
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
04562-30040

SV21,VZV21..WG

 1
64791B - COVER, BACK DOOR TRIM
64791-3201006

SV21,VZV21..WG

BROWN,TRIM4#,RH

 1
64791-3201004

SV21,VZV21..WG

DARK BLUE,TRIM8#,RH

 1
64791-3201003

SV21,VZV21..WG

MEDIUM GRAY,TRIM1#,RH

 1
64792-3201003

SV21,VZV21..WG

MEDIUM GRAY,TRIM1#,LH

 1
64792-3201004

SV21,VZV21..WG

DARK BLUE,TRIM8#,LH

 1
64792-3201006

SV21,VZV21..WG

BROWN,TRIM4#,LH

 1
64791B - COVER, BACK DOOR TRIM
64791-3201006

SV21,VZV21..WG

BROWN,TRIM4#,RH

 1
64791-3201004

SV21,VZV21..WG

DARK BLUE,TRIM8#,RH

 1
64791-3201003

SV21,VZV21..WG

MEDIUM GRAY,TRIM1#,RH

 1
64792-3201003

SV21,VZV21..WG

MEDIUM GRAY,TRIM1#,LH

 1
64792-3201004

SV21,VZV21..WG

DARK BLUE,TRIM8#,LH

 1
64792-3201006

SV21,VZV21..WG

BROWN,TRIM4#,LH

 1
64795A - TRIM, BACK WINDOW OPENING
64795-3201006

SV21,VZV21..WG

BROWN,TRIM4#

 1
64795-3201003

SV21,VZV21..WG

MEDIUM GRAY,TRIM1#

 1
64795-3201004

SV21,VZV21..WG

DARK BLUE,TRIM8#

 1
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-32010

SV21,VZV21..WG

 2
67005 - PANEL SUB-ASSY, BACK DOOR
67005-32160

SV21,VZV21..WG

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-11003

SV21,VZV21..WG

 2
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-32010

SV21,VZV21..WG

 4
67281B - STOPPER, BACK DOOR, LOWER
67281-32020

SV21,VZV21..WG

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-32020

SV21,VZV21..WG

RH

 1
67294-32020

SV21,VZV21..WG

LH

 1
67395 - PROTECTOR, BACK DOOR, LOWER
67395-32010

SV21,VZV21..WG

 3
67751 - BOARD, BACK DOOR TRIM
67750-3201006

SV21,VZV21..WG..LE

BROWN,TRIM4#

 1
67750-3201014

SV21,VZV21..WG..LE

DARK BLUE,TRIM8#

 1
67750-3201013

SV21,VZV21..WG..LE

MEDIUM GRAY,TRIM1#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0601754

SV21,VZV21..WG

DARK BLUE,TRIM8#

 6
90467-0601752

SV21,VZV21..WG

BROWN,TRIM4#

 6
90467-0601753

SV21,VZV21..WG

GRAY,TRIM1#

 6
67754 - MOULDING, BACK DOOR TRIM
67754-3201003

SV21,VZV21..WG

MEDIUM GRAY,TRIM1#

 1
67754-3201004

SV21,VZV21..WG

DARK BLUE,TRIM8#

 1
67754-3201006

SV21,VZV21..WG

BROWN,TRIM4#

 1
67765B - COVER, BACK DOOR TRIM, UPPER
67765-3202006

SV21,VZV21..WG

BROWN,TRIM4#

 1
67765-3202004

SV21,VZV21..WG

DARK BLUE,TRIM8#

 1
67765-3202003

SV21,VZV21..WG

MEDIUM GRAY,TRIM1#

 1
67847A - COVER, BACK DOOR SERVICE HOLE
67805-3201013

SV21,VZV21..WG..LE

MEDIUM GRAY,TRIM1#,RH

 1
67805-3201014

SV21,VZV21..WG..LE

DARK BLUE,TRIM8#,RH

 1
67805-3201006

SV21,VZV21..WG..LE

BROWN,TRIM4#,RH

 1
67806-3201013

SV21,VZV21..WG..LE

MEDIUM GRAY,TRIM1#,LH

 1
67847-32020

SV21,VZV21..WG..LE

RH

 1
67806-3201014

SV21,VZV21..WG..LE

DARK BLUE,TRIM8#,LH

 1
67806-3201006

SV21,VZV21..WG..LE

BROWN,TRIM4#,LH

 1
67848-32020

SV21,VZV21..WG..LE

LH

 1
67847A - COVER, BACK DOOR SERVICE HOLE
67805-3201013

SV21,VZV21..WG..LE

MEDIUM GRAY,TRIM1#,RH

 1
67805-3201014

SV21,VZV21..WG..LE

DARK BLUE,TRIM8#,RH

 1
67805-3201006

SV21,VZV21..WG..LE

BROWN,TRIM4#,RH

 1
67806-3201013

SV21,VZV21..WG..LE

MEDIUM GRAY,TRIM1#,LH

 1
67847-32020

SV21,VZV21..WG..LE

RH

 1
67806-3201014

SV21,VZV21..WG..LE

DARK BLUE,TRIM8#,LH

 1
67806-3201006

SV21,VZV21..WG..LE

BROWN,TRIM4#,LH

 1
67848-32020

SV21,VZV21..WG..LE

LH

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-32030

SV21,VZV21..WG

 1
68131 - GLASS, BACK DOOR
68131-32090

SV21,VZV21..WG

*EHTT,T=3.5

 1
68131-32110

SV21,VZV21..WG..LE

*EHTT,T=3.5,BRONZE

 1
Common parts
90159-50116
90176-08029
90468-04008
90468-05060
90468-05076
90950-01095
93560-54012
