SV21LG-UWPNKK (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

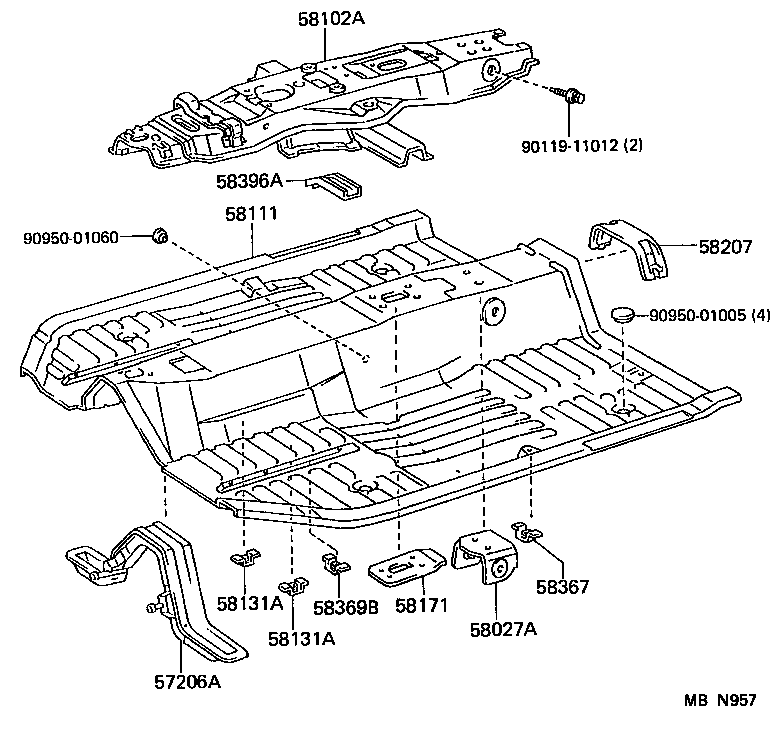

ILLUST NO. 1 OF 2(8808- )SV21,VZV21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2 | ||||
| 57206-32010 |
SV21,VZV21 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-32020 |
SV21,VZV21 |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-32901 |
SV21,VZV21 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-32020 |
SV21,VZV21..4FC |
1 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-32010 |
SV21,VZV21 |
2 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-32010 |
SV21,VZV21 |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-32010 |
SV2# |
1 | ||
| 58207 - BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1 | ||||
| 58207-32020 |
SV21,VZV21 |
1 | ||
| 58367 - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-22040 |
SV2#,VZV21 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-32010 |
SV21,VZV21 |
1 | ||
| 58396A - BRACKET, WIRE HARNESS CLAMP | ||||
| 58396-32010 |
SV21,VZV21 |
1 | ||
| Common parts | ||||
| 90119-11012 | ||||
| 90950-01005 | ||||
| 90950-01060 | ||||

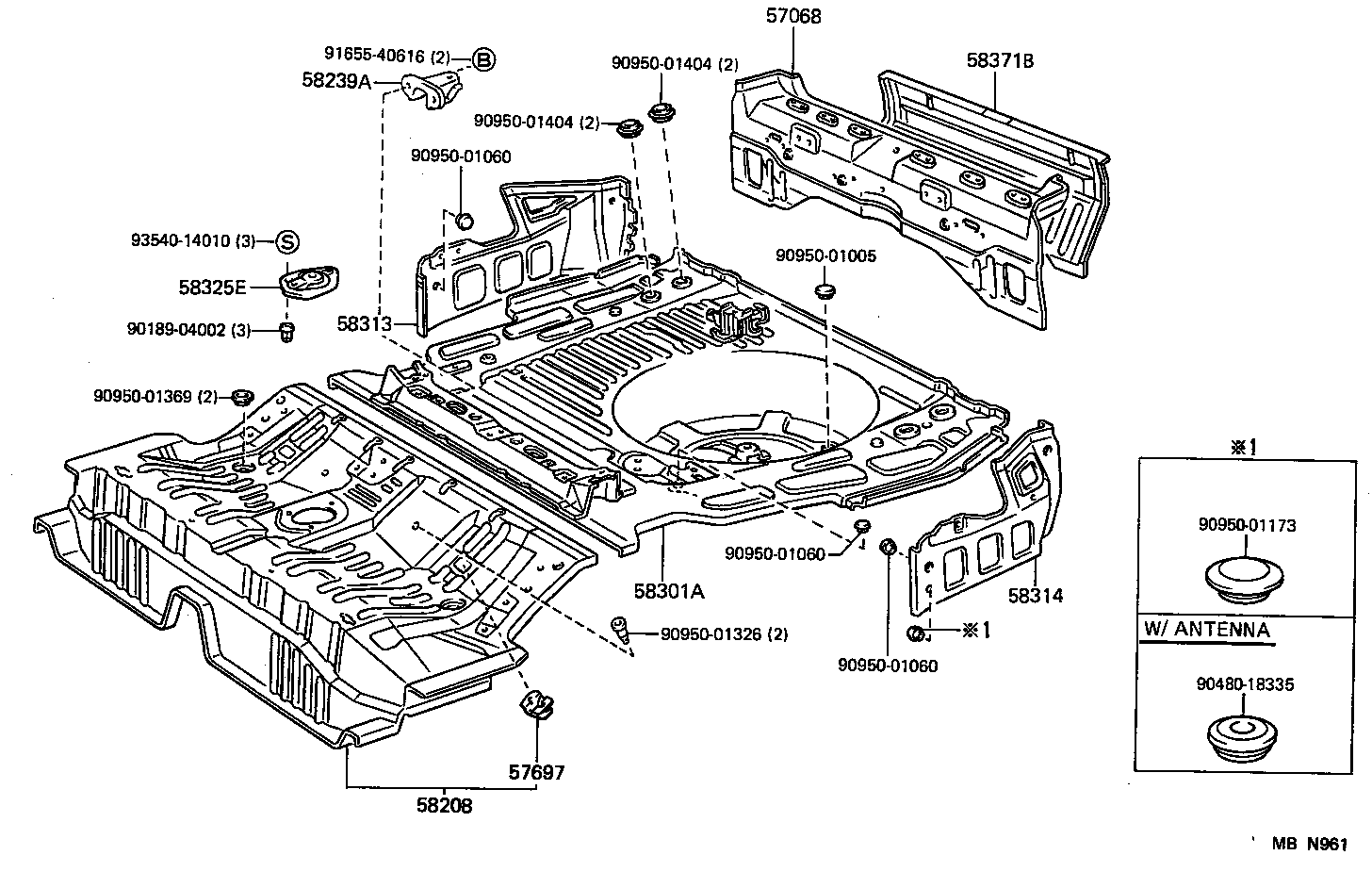

ILLUST NO. 2 OF 2(8808- )WG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-32020 |
SV21..WG;VZV21..WG..LE |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-32020 |
SV21,VZV21..WG |
2 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58201-32071 |
SV21,VZV21..WG |
1 | ||
| 58239A - PLATE, BELT ANCHOR NUT | ||||
| 58239-32010 |
SV21,VZV21..WG |
3 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-32900 |
SV21,VZV21..WG |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-32060 |
SV21,VZV21..WG |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-32060 |
SV21,VZV21..WG |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-32020 |
SV21,VZV21 |
1 | ||
| 58371B - PANEL, BODY LOWER BACK, OUTER | ||||
| 58371-32090 |
SV21,VZV21..WG |
1 | ||
| Common parts | ||||
| 90189-04002 | ||||
| 90480-18335 | ||||
| 90950-01005 | ||||
| 90950-01060 | ||||
| 90950-01173 | ||||
| 90950-01326 | ||||
| 90950-01369 | ||||
| 90950-01404 | ||||
| 91655-40616 | ||||
| 93540-14010 | ||||
