SV21LG-UWPNKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

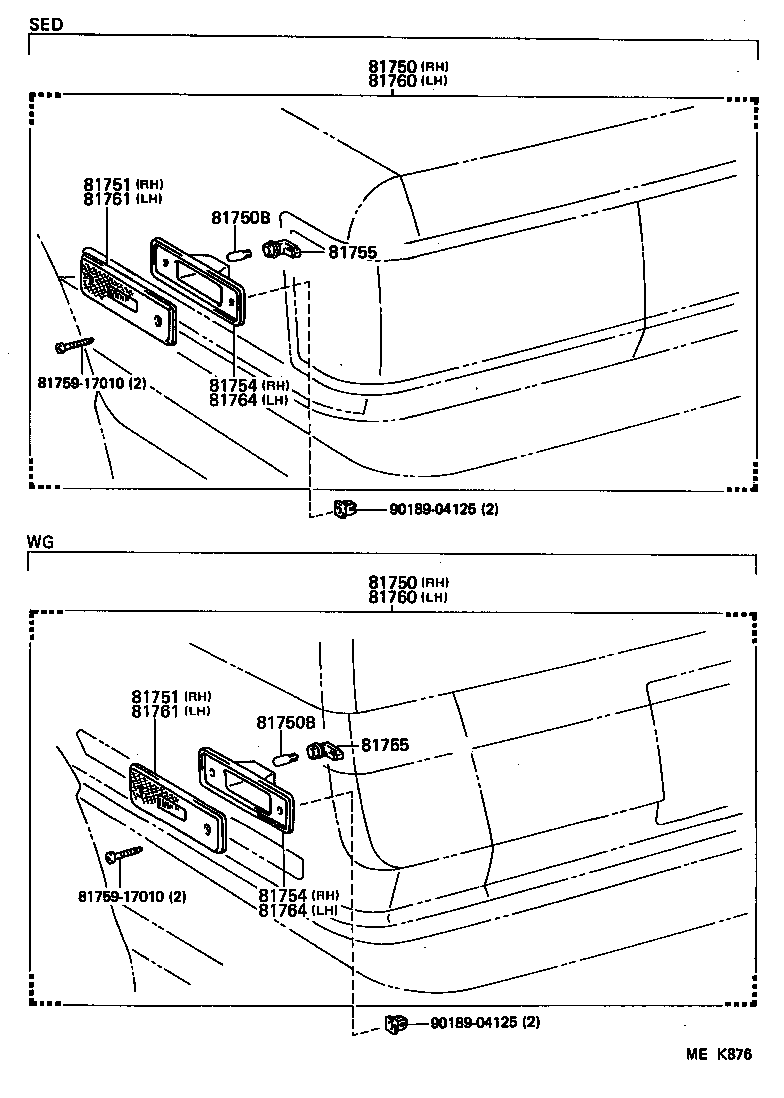

Click highlighted areas on diagram

diagram 81750 81750 81750B 81750B 81751 81751 81754 81754 81755 81755 8175917010 8175917010 81760 81760 81761 81761 81764 81764 9018904125 9018904125
Part # Description Qty Price
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-16020

SV2#,VZV21

 1
81750 - LAMP ASSY, REAR SIDE MARKER, RH
81750-16020

SV2#,VZV21

 1
81750B - BULB, REAR SIDE MARKER LAMP
90981-11020

SV2#,VZV21

12V 3.8W

 2
81750B - BULB, REAR SIDE MARKER LAMP
90981-11020

SV2#,VZV21

12V 3.8W

 2
81751 - LENS, REAR SIDE MARKER LAMP, RH
81751-16020

SV2#,VZV21

 1
81751 - LENS, REAR SIDE MARKER LAMP, RH
81751-16020

SV2#,VZV21

 1
81754 - GASKET, REAR SIDE MARKER LAMP BODY, RH
81752-17010

SV2#,VZV21

 1
81754 - GASKET, REAR SIDE MARKER LAMP BODY, RH
81752-17010

SV2#,VZV21

 1
81755 - SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP
90075-99005

SV2#,VZV21

 2
81755 - SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP
90075-99005

SV2#,VZV21

 2
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81760-16020

SV2#,VZV21

 1
81760 - LAMP ASSY, REAR SIDE MARKER, LH
81760-16020

SV2#,VZV21

 1
81761 - LENS, REAR SIDE MARKER LAMP, LH
81761-16020

SV2#,VZV21

 1
81761 - LENS, REAR SIDE MARKER LAMP, LH
81761-16020

SV2#,VZV21

 1
81764 - GASKET, REAR SIDE MARKER LAMP BODY, LH
81752-17010

SV2#,VZV21

 1
81764 - GASKET, REAR SIDE MARKER LAMP BODY, LH
81752-17010

SV2#,VZV21

 1
Common parts
81759-17010
90189-04125
