SV21LG-UWPNKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

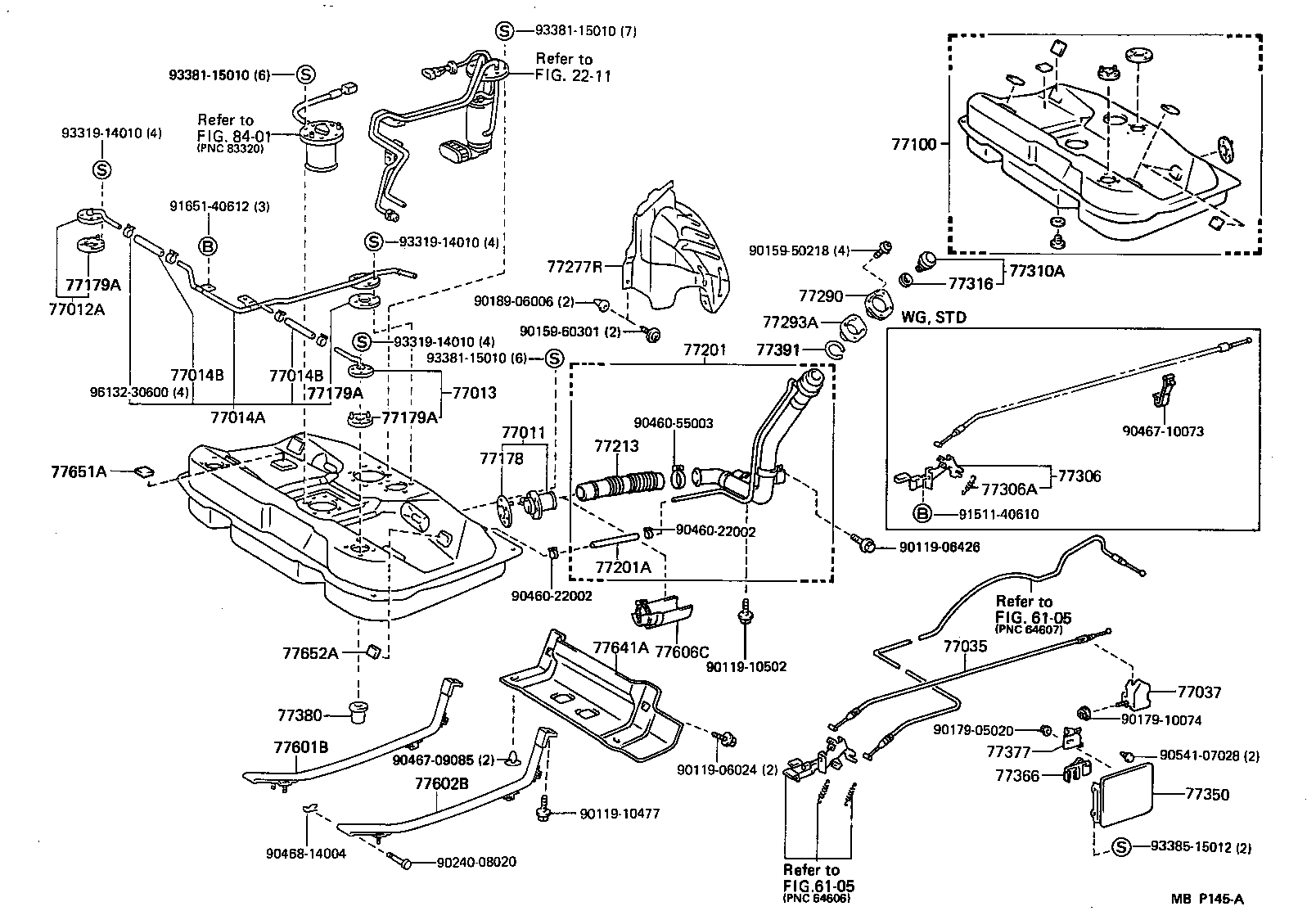

ILLUST NO. 1 OF 2(8808- )SV21,VZV21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-20020 |
SV21,VZV21 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-32020 |
SV21,VZV21 |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77012-32020 |
SV21,VZV21 |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77014-32020 |
SV21,VZV21 |
1 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
SV21,VZV21 *H,L=100 |
2 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
SV21,VZV21 *H,L=100 |
2 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-32070 |
SV2#,VZV21 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12040 |
SV2#,VZV21 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39295 |
SV21,VZV21 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
SV21,VZV21 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
SV21,VZV21 |
3 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
SV21,VZV21 |
3 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
SV21,VZV21 |
3 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77210-32052 |
SV21,VZV21 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22002 |
SV21,VZV21 L=200 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-32020 |
SV21,VZV21 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-32020 |
SV21,VZV21 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-32021 |
SV2#,VZV21 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-20010 |
SV2#,VZV21 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-14040 |
SV21,VZV21..WG |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
SV21,VZV21..WG |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12140 |
SV2#,VZV21 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
SV2#,VZV21 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-32030 |
SV2#,VZV21 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
SV2#,VZV21 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
SV2#,VZV21 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
SV21,VZV21 |
3 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-16011 |
SV2#,VZV21 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-32040 |
SV21,VZV21 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-32030 |
SV21,VZV21 |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77606-32020 |
SV21,VZV21 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-32030 |
SV21,VZV21 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
SV21,VZV21 |
4 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32030 |
SV21,VZV21 |
2 | ||
| Common parts | ||||
| 90119-06024 | ||||
| 90119-06426 | ||||
| 90119-10477 | ||||
| 90119-10502 | ||||
| 90159-50218 | ||||
| 90159-60301 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-06006 | ||||
| 90240-08020 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 90467-09085 | ||||
| 90467-10073 | ||||
| 90468-14004 | ||||
| 90541-07028 | ||||
| 91511-40610 | ||||
| 91651-40612 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93385-15012 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
| 8401 | ||||

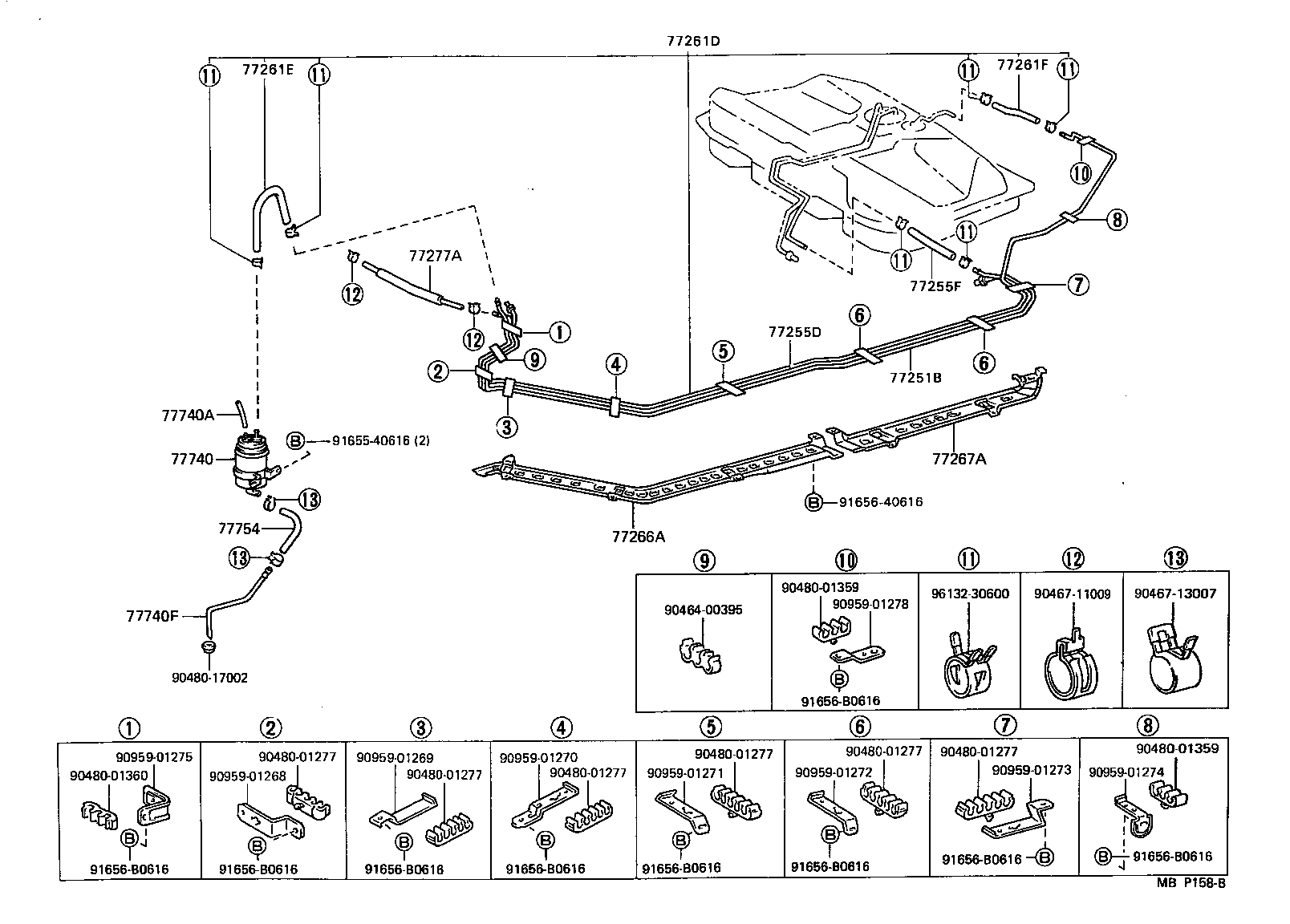

ILLUST NO. 2 OF 2(8808- )SV21,VZV21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-32110 |
SV21,VZV21 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-32080 |
SV21,VZV21 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
SV21,VZV21 *H,L=200 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77019-32070 |
SV21,VZV21 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-32020 |
SV21,VZV21 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
SV21,VZV21 *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-32020 |
SV2#,VZV21 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-32020 |
SV21,VZV21 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12085 |
SV2# L=320 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-32030 |
SV2#,VZV21 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-32030 |
SV2#,VZV21 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-32030 |
SV2#,VZV21 |
1 | ||
| Common parts | ||||
| 90464-00395 | ||||
| 90467-11009 | ||||
| 90467-13007 | ||||
| 90480-01277 | ||||
| 90480-01359 | ||||
| 90480-01360 | ||||
| 90480-17002 | ||||
| 90959-01268 | ||||
| 90959-01269 | ||||
| 90959-01270 | ||||
| 90959-01271 | ||||
| 90959-01272 | ||||
| 90959-01273 | ||||
| 90959-01274 | ||||
| 90959-01275 | ||||
| 90959-01278 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| 91656-B0616 | ||||
| 96132-30600 | ||||
