SV21LG-UWPNKA (1988)
Toyota Camry (Jpp)

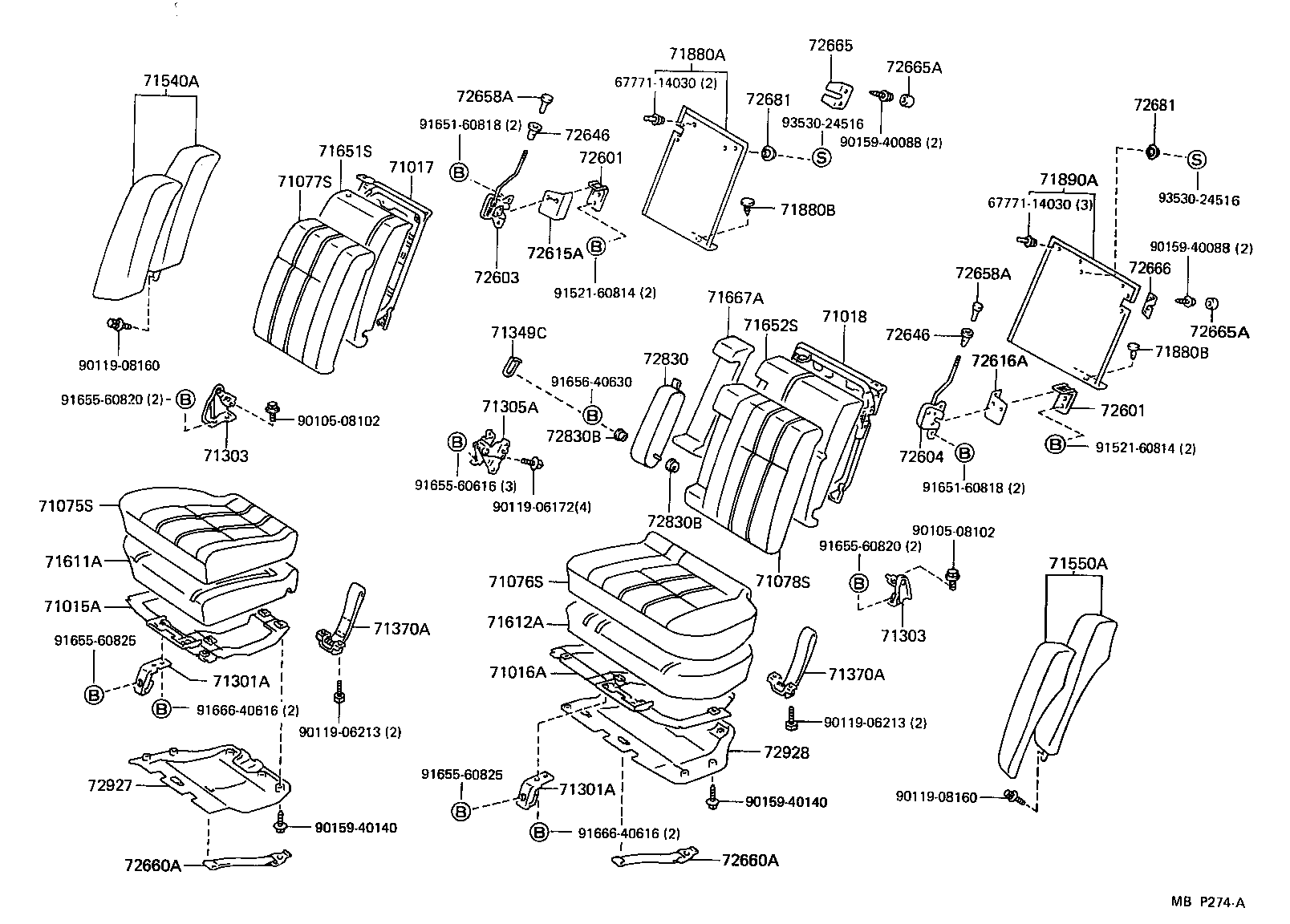

ILLUST NO. 2 OF 2(8808-8908)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 2(8808- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-32040 |
SV21,VZV21..WG |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-32010 |
SV21,VZV21..WG |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-32090 |
SV21,VZV21..WG |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-32030 |
SV21,VZV21..WG..LE |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-3280006 |
SV21,VZV21..WG..LE BROWN,TRIM4# |
1 | ||
| 71075-3280002 |
SV21,VZV21..WG..LE..USA MAROON,TRIM3# |
1 | ||
| 71075-3280003 |
SV21,VZV21..WG..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 71075-3280004 |
SV21,VZV21..WG..LE DARK BLUE,TRIM8# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-3203004 |
SV21,VZV21..WG..LE DARK BLUE,TRIM8# |
1 | ||
| 71076-3203002 |
SV21,VZV21..WG..LE..USA MAROON,TRIM3# |
1 | ||
| 71076-3203003 |
SV21,VZV21..WG..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 71076-3203006 |
SV21,VZV21..WG..LE BROWN,TRIM4# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-3277006 |
SV21,VZV21..WG..LE BROWN,TRIM4# |
1 | ||
| 71077-3277002 |
SV21,VZV21..WG..LE..USA MAROON,TRIM3# |
1 | ||
| 71077-3277003 |
SV21,VZV21..WG..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-3277004 |
SV21,VZV21..WG..LE DARK BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-3229006 |
SV21,VZV21..WG..LE BROWN,TRIM4# |
1 | ||
| 71078-3229003 |
SV21,VZV21..WG..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 71078-3229004 |
SV21,VZV21..WG..LE DARK BLUE,TRIM8# |
1 | ||
| 71078-3229002 |
SV21,VZV21..WG..LE..USA MAROON,TRIM3# |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-32020 |
SV21,VZV21..WG |
2 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-32020 |
SV21,VZV21..WG |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-32020 |
SV21,VZV21..WG RH |
1 | ||
| 71304-32020 |
SV21,VZV21..WG LH |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-32020 |
SV21,VZV21..WG RH |
1 | ||
| 71304-32020 |
SV21,VZV21..WG LH |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-32020 |
SV21,VZV21..WG |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-32030B0 |
SV2#,VZV21..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 71349-32030D0 |
SV2#,VZV21..LE..USA MAROON,TRIM3# |
1 | ||
| 71349-32030E0 |
SV2#,VZV21..LE BROWN,TRIM4# |
1 | ||
| 71349-32030J0 |
SV2#,VZV21..LE DARK BLUE,TRIM8# |
1 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-3202003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 71370-3202004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 71370-3202002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 71370-3202016 |
SV21,VZV21..WG BROWN,TRIM4# |
2 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-3202003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 71370-3202004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 71370-3202002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 71370-3202016 |
SV21,VZV21..WG BROWN,TRIM4# |
2 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-3238006 |
SV21,VZV21..WG..LE BROWN,TRIM4# |
1 | ||
| 71540-3238004 |
SV21,VZV21..WG..LE DARK BLUE,TRIM8# |
1 | ||
| 71540-3238003 |
SV21,VZV21..WG..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 71540-3238002 |
SV21,VZV21..WG..LE..USA MAROON,TRIM3# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-3238006 |
SV21,VZV21..WG..LE BROWN,TRIM4# |
1 | ||
| 71550-3238004 |
SV21,VZV21..WG..LE DARK BLUE,TRIM8# |
1 | ||
| 71550-3238003 |
SV21,VZV21..WG..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 71550-3238002 |
SV21,VZV21..WG..LE..USA MAROON,TRIM3# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-32120 |
SV21,VZV21..WG |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-32030 |
SV21,VZV21..WG |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-32100 |
SV21,VZV21..WG |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-32080 |
SV21,VZV21..WG..LE |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-32010 |
SV2#,VZV21..LE |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-3203003 |
SV21,VZV21..WG..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 71880-3203006 |
SV21,VZV21..WG..LE BROWN,TRIM4# |
1 | ||
| 71880-3203004 |
SV21,VZV21..WG..LE DARK BLUE,TRIM8# |
1 | ||
| 71880-3203002 |
SV21,VZV21..WG..LE..USA MAROON,TRIM3# |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0604916 |
SV21,VZV21..WG BROWN,TRIM4# |
5 | ||
| 90467-0604924 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
5 | ||
| 90467-0604912 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
5 | ||
| 90467-0604923 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
5 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0604916 |
SV21,VZV21..WG BROWN,TRIM4# |
5 | ||
| 90467-0604924 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
5 | ||
| 90467-0604912 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
5 | ||
| 90467-0604923 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
5 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-3203004 |
SV21,VZV21..WG..LE DARK BLUE,TRIM8# |
1 | ||
| 71890-3203003 |
SV21,VZV21..WG..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 71890-3203002 |
SV21,VZV21..WG..LE..USA MAROON,TRIM3# |
1 | ||
| 71890-3203006 |
SV21,VZV21..WG..LE BROWN,TRIM4# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-32010 |
SV21,VZV21..WG;SV21,VZV21..SED..LE |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-32010 |
SV21,VZV21..WG;SV21,VZV21..SED..LE |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-32040 |
SV21,VZV21..WG |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-32040 |
SV21,VZV21..WG |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72605-3201013 |
SV21,VZV21..WG..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 72605-3201014 |
SV21,VZV21..WG..LE DARK BLUE,TRIM8# |
1 | ||
| 72605-3201016 |
SV21,VZV21..WG..LE BROWN,TRIM4# |
1 | ||
| 72605-3201002 |
SV21,VZV21..WG..LE..USA MAROON,TRIM3# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72606-3201013 |
SV21,VZV21..WG..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 72606-3201016 |
SV21,VZV21..WG..LE BROWN,TRIM4# |
1 | ||
| 72606-3201002 |
SV21,VZV21..WG..LE..USA MAROON,TRIM3# |
1 | ||
| 72606-3201014 |
SV21,VZV21..WG..LE DARK BLUE,TRIM8# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 72646-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 72646-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 72646-3201006 |
SV21,VZV21..WG BROWN,TRIM4# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-3201002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 72646-3201004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 72646-3201003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 72646-3201006 |
SV21,VZV21..WG BROWN,TRIM4# |
1 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-23010D0 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 72658-23010E0 |
SV21,VZV21..WG..USA BROWN,TRIM4# |
2 | ||
| 72658-23010B0 |
SV21,VZV21..WG..USA MEDIUM GRAY,TRIM1# |
2 | ||
| 72658-23010J0 |
SV21,VZV21..WG..USA DARK BLUE,TRIM8# |
2 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-23010D0 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 72658-23010E0 |
SV21,VZV21..WG..USA BROWN,TRIM4# |
2 | ||
| 72658-23010B0 |
SV21,VZV21..WG..USA MEDIUM GRAY,TRIM1# |
2 | ||
| 72658-23010J0 |
SV21,VZV21..WG..USA DARK BLUE,TRIM8# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-3202006 |
SV21,VZV21..WG SABLE,TRIM4# |
2 | ||
| 72660-3202004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72660-3202003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72660-3202002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-3202006 |
SV21,VZV21..WG SABLE,TRIM4# |
2 | ||
| 72660-3202004 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72660-3202003 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72660-3202002 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-3203002 |
VZV21..WG..USA;SV2#..(DX,LE)..USA;VZV21..SED..LE..USA MAROON,TRIM3# |
1 | ||
| 72665-3203003 |
SV21,VZV21..WG;SV2#..SED..DX..USA;SV2#,VZV21..SED..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 72665-3203004 |
SV21,VZV21..WG;SV2#..SED..DX..USA;SV2#,VZV21..SED..LE DARK BLUE,TRIM8# |
1 | ||
| 72665-3203006 |
SV21,VZV21..WG;SV2#..SED..DX..USA;SV2#,VZV21..SED..LE BROWN,TRIM4# |
1 | ||
| 72665A - CAP(FOR REAR SEAT BACK LOCK COVER) | ||||
| 90339-10001J1 |
SV21,VZV21..WG;SV2#..SED..DX..USA;SV2#,VZV21..SED..LE DARK BLUE,TRIM8# |
4 | ||
| 90339-10001D1 |
VZV21..WG..USA;SV2#..(DX,LE)..USA;VZV21..SED..LE..USA MAROON,TRIM3# |
4 | ||
| 90339-10001B2 |
SV21,VZV21..WG;SV2#..SED..DX..USA;SV2#,VZV21..SED..LE MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001E0 |
SV21,VZV21..WG;SV2#..SED..DX..USA;SV2#,VZV21..SED..LE BROWN,TRIM4# |
4 | ||
| 90339-10001B2 |
SV25..LE;SV25..DX..USA;SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
4 | ||
| 72665A - CAP(FOR REAR SEAT BACK LOCK COVER) | ||||
| 90339-10001J1 |
SV21,VZV21..WG;SV2#..SED..DX..USA;SV2#,VZV21..SED..LE DARK BLUE,TRIM8# |
4 | ||
| 90339-10001D1 |
VZV21..WG..USA;SV2#..(DX,LE)..USA;VZV21..SED..LE..USA MAROON,TRIM3# |
4 | ||
| 90339-10001B2 |
SV21,VZV21..WG;SV2#..SED..DX..USA;SV2#,VZV21..SED..LE MEDIUM GRAY,TRIM1# |
4 | ||
| 90339-10001E0 |
SV21,VZV21..WG;SV2#..SED..DX..USA;SV2#,VZV21..SED..LE BROWN,TRIM4# |
4 | ||
| 90339-10001B2 |
SV25..LE;SV25..DX..USA;SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
4 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72665-3203003 |
SV21,VZV21..WG;SV2#..SED..DX..USA;SV2#,VZV21..SED..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 72665-3203002 |
VZV21..WG..USA;SV2#..(DX,LE)..USA;VZV21..SED..LE..USA MAROON,TRIM3# |
1 | ||
| 72665-3203004 |
SV21,VZV21..WG;SV2#..SED..DX..USA;SV2#,VZV21..SED..LE DARK BLUE,TRIM8# |
1 | ||
| 72665-3203006 |
SV21,VZV21..WG;SV2#..SED..DX..USA;SV2#,VZV21..SED..LE BROWN,TRIM4# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601043 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72681-1601046 |
SV21,VZV21..WG BROWN,TRIM4# |
2 | ||
| 72681-1601034 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72681-1601012 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601043 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
2 | ||
| 72681-1601046 |
SV21,VZV21..WG BROWN,TRIM4# |
2 | ||
| 72681-1601034 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
2 | ||
| 72681-1601012 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-3226003 |
SV2#,VZV21..LE MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-3226002 |
SV2#,VZV21..LE..USA MAROON,TRIM3# |
1 | ||
| 72830-3226006 |
SV2#,VZV21..LE BROWN,TRIM4# |
1 | ||
| 72830-3226004 |
SV2#,VZV21..LE DARK BLUE,TRIM8# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
SV2#,VZV21..LE LH |
1 | ||
| 90386-06028 |
SV2#,VZV21..LE RH |
1 | ||
| 90386-06036 |
SV2#,VZV21..LE LH |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
SV2#,VZV21..LE LH |
1 | ||
| 90386-06028 |
SV2#,VZV21..LE RH |
1 | ||
| 90386-06036 |
SV2#,VZV21..LE LH |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-3201102 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 72927-3201103 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| 72927-3201104 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 72927-3201106 |
SV21,VZV21..WG BROWN,TRIM4# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-3201104 |
SV21,VZV21..WG DARK BLUE,TRIM8# |
1 | ||
| 72928-3201102 |
SV21,VZV21..WG..USA MAROON,TRIM3# |
1 | ||
| 72928-3201106 |
SV21,VZV21..WG BROWN,TRIM4# |
1 | ||
| 72928-3201103 |
SV21,VZV21..WG MEDIUM GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-14030 | ||||
| 90105-08102 | ||||
| 90119-06172 | ||||
| 90119-06213 | ||||
| 90119-08160 | ||||
| 90159-40088 | ||||
| 90159-40140 | ||||
| 91521-60814 | ||||
| 91651-60818 | ||||
| 91655-60616 | ||||
| 91655-60820 | ||||
| 91655-60825 | ||||
| 91656-40630 | ||||
| 91666-40616 | ||||
| 93530-24516 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
