SV21LG-UWPNKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

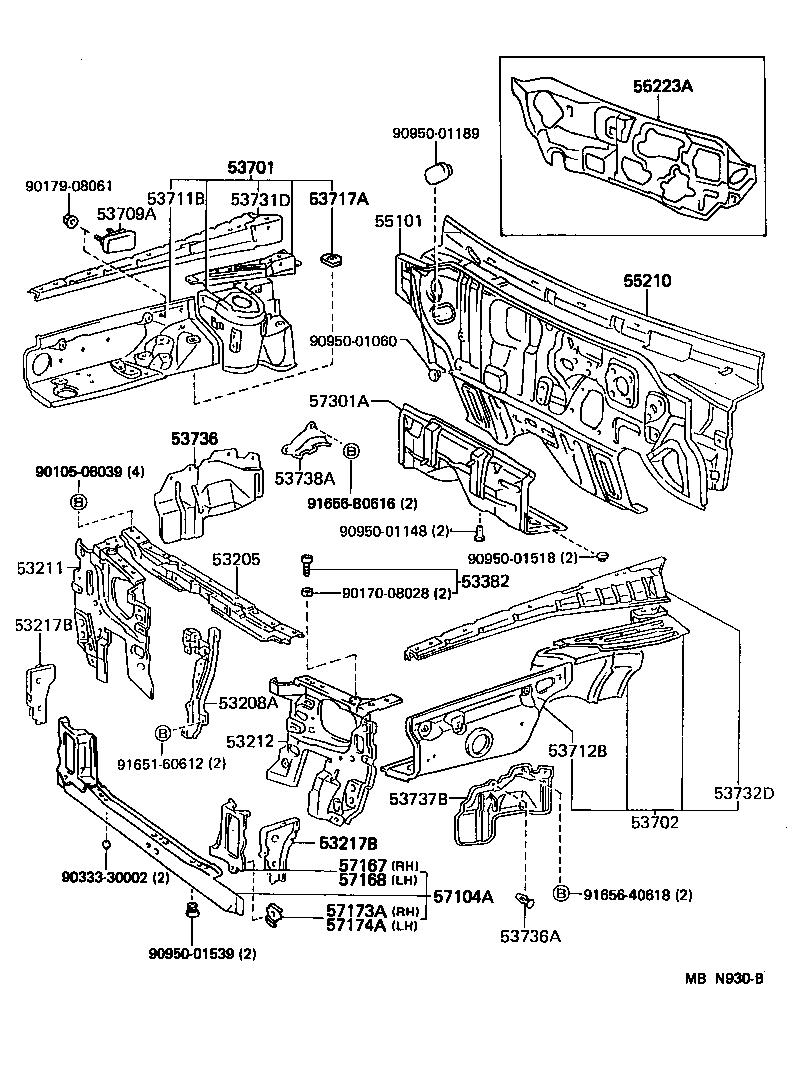

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-32010 |
SV2#,VZV21 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-32090 |
SV2#,VZV21 |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-32900 |
SV2#,VZV21 |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-32900 |
SV2#,VZV21 |
1 | ||
| 53217B - BRACE, RADIATOR SUPPORT TO CROSSMEMBER | ||||
| 53217-32030 |
SV2#,VZV21 RH |
1 | ||
| 53218-32030 |
SV2#,VZV21 LH |
1 | ||
| 53217B - BRACE, RADIATOR SUPPORT TO CROSSMEMBER | ||||
| 53217-32030 |
SV2#,VZV21 RH |
1 | ||
| 53218-32030 |
SV2#,VZV21 LH |
1 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-32020 |
SV2#,VZV21 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-32913 |
SV21,VZV21 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-32908 |
SV2#,VZV21 |
1 | ||
| 53709A - DAMPER SUB-ASSY, FRONT FENDER APRON | ||||
| 53709-32020 |
SV2#,VZV21 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-32110 |
SV21,VZV21 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-32030 |
SV2#,VZV21 |
1 | ||
| 53717A - PLATE, FENDER APRON | ||||
| 53717-32010 |
SV25..LE;SV21,VZV21 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-32020 |
SV2#,VZV21 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-32020 |
SV2#,VZV21 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-32020 |
SV2#,VZV21 |
1 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-09063 |
SV2#,VZV21 |
4 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-32020 |
SV2#,VZV21 |
1 | ||
| 53738A - SEAL, FRONT FENDER APRON, REAR RH | ||||
| 53738-32020 |
SV2#,VZV21 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-32112 |
SV2#,VZV21..4FC |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-32040 |
SV2#,VZV21 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-32901 |
SV2#,VZV21 |
1 | ||
| 57167 - GUSSET, FRONT CROSSMEMBER, UPPER RH | ||||
| 57167-32030 |
SV2#,VZV21 |
1 | ||
| 57168 - GUSSET, FRONT CROSSMEMBER, UPPER LH | ||||
| 57168-32030 |
SV2#,VZV21 |
1 | ||
| 57173A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH | ||||
| 57173-32020 |
SV2#,VZV21 |
1 | ||
| 57174A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH | ||||
| 57174-32010 |
SV2#,VZV21 |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-32070 |
SV2#,VZV21..4FC |
1 | ||
| Common parts | ||||
| 90105-06039 | ||||
| 90170-08028 | ||||
| 90179-08061 | ||||
| 90333-30002 | ||||
| 90950-01060 | ||||
| 90950-01148 | ||||
| 90950-01189 | ||||
| 90950-01518 | ||||
| 90950-01539 | ||||
| 91651-60612 | ||||
| 91656-40618 | ||||
| 91656-B0616 | ||||
