SV21LG-UWPNKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44609D 44610 44624J 44628A 44632B 44633 44637A 44645 44651B 44673A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-32280

SV2#,VZV21

JKC

 1
04443-32270

SV2#,VZV21

AISIN

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-30350

SV2#,VZV21

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-20800

SV2#,VZV21

AISIN

 1
44608-17090

SV2#,VZV21

JKC

 1
44609D - PLATE & RETAINER SUB-ASSY, BOOSTER
44609-26380

SV2#,VZV21

 1
44610 - BOOSTER ASSY, BRAKE
44610-32260

SV2#,VZV21

 1
44624J - PLATE, BOOSTER CENTER
44624-28300

SV2#,VZV21

 1
44628A - BODY, BOOSTER CENTER
44628-20810

SV2#,VZV21

 1
44632B - HUB, BOOSTER REACTION DISK
44632-30550

SV2#,VZV21

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-20811

SV2#,VZV21

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-28300

SV2#,VZV21

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

SV2#,VZV21

 1
44651B - NUT, BOOSTER
44651-20810

SV2#,VZV21

 1
44673A - BODY, BOOSTER VALVE
44673-20810

SV2#,VZV21

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

SV2#,VZV21

 1
Common parts
90179-08038

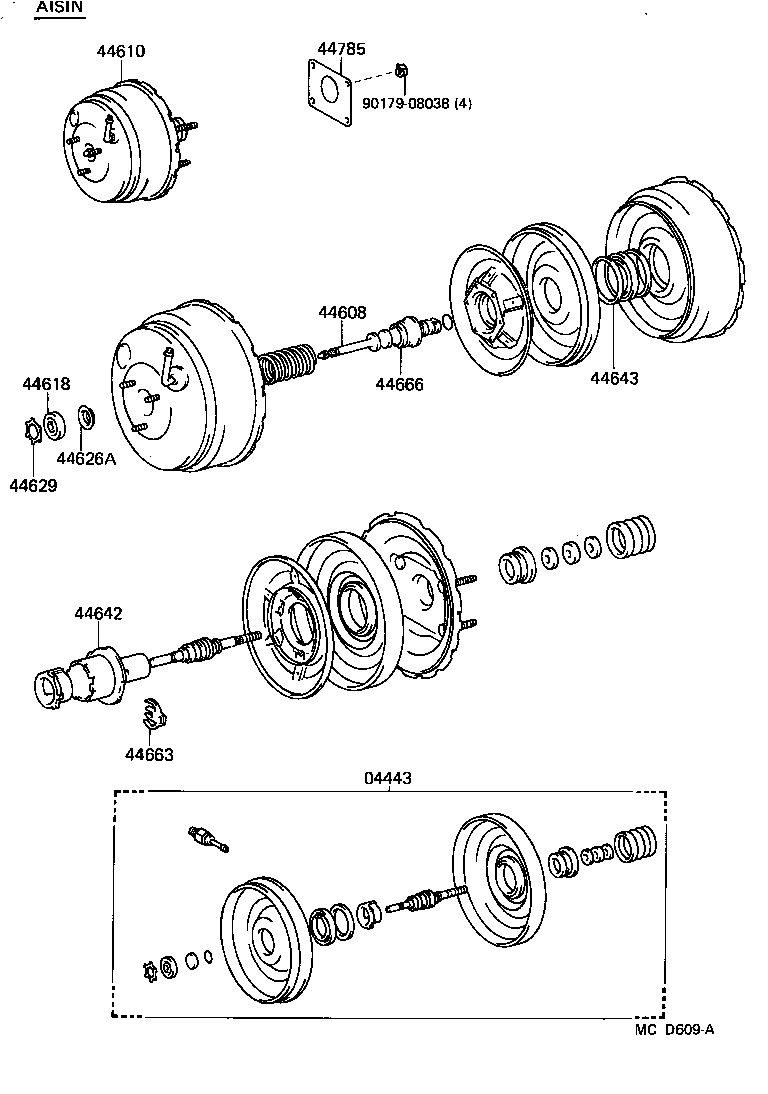

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44626A 44629 44642 44643 44663 44666 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-32280

SV2#,VZV21

JKC

 1
04443-32270

SV2#,VZV21

AISIN

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-20800

SV2#,VZV21

AISIN

 1
44608-17090

SV2#,VZV21

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-32260

SV2#,VZV21

 1
44618 - SEAL, BOOSTER BODY
44621-14030

SV2#,VZV21

 1
44626A - RETAINER, BOOSTER BODY SEAL
44626-60010

SV2#,VZV21

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

SV2#,VZV21

 1
44642 - PISTON, BRAKE BOOSTER
44642-20800

SV2#,VZV21

 1
44643 - RETAINER, DIAPHRAGM
44643-20800

SV2#,VZV21

 1
44663 - KEY, VALVE STOPPER
44635-20800

SV2#,VZV21

 1
44666 - CASE, REACTION DISC
44657-30560

SV2#,VZV21

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

SV2#,VZV21

 1
Common parts
90179-08038

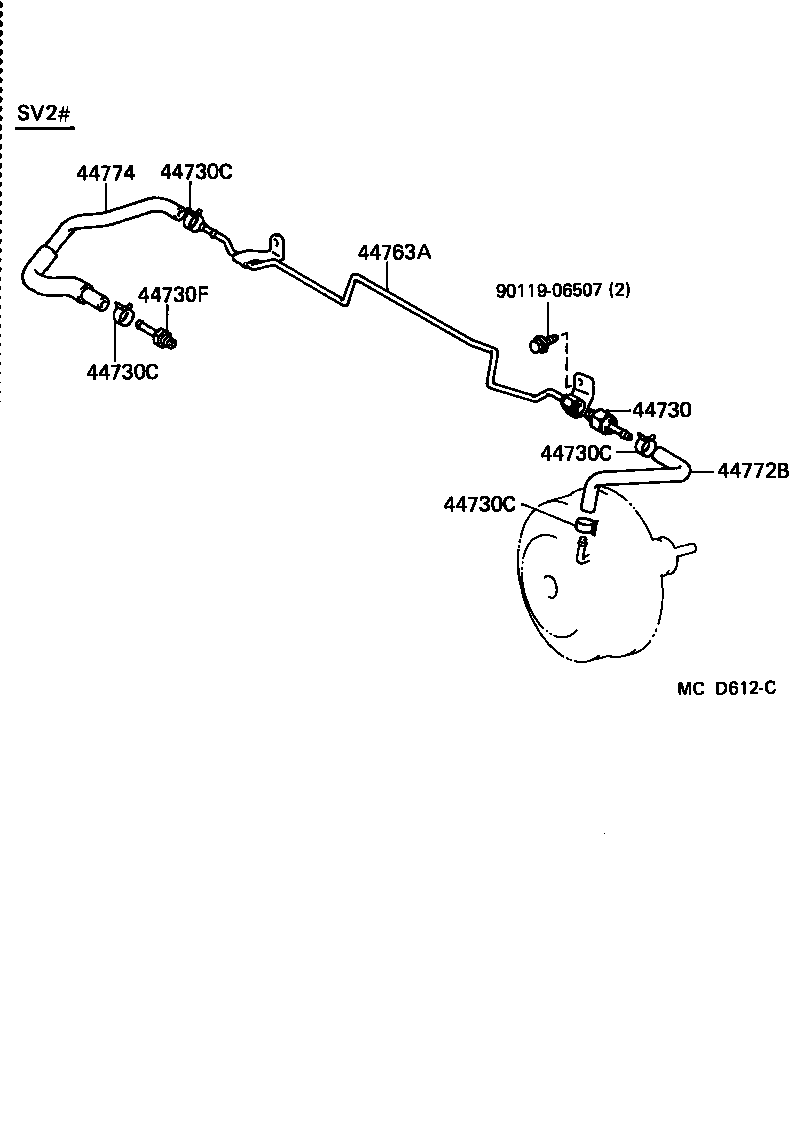

ILLUST NO. 2 OF 2(8808- )SV2#

Click highlighted areas on diagram

diagram 44730 44730C 44730C 44730C 44730C 44730F 44763A 44772B 44774 9011906507
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

SV2#,VZV21

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

SV2#,VZV21

 4
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

SV2#

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-32071

SV2#,VZV21

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-32050

SV2#,VZV21

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-32060

SV2#

 1
Common parts
90119-06507
