SV21LG-UWPNKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Aug 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )SV21..4FC

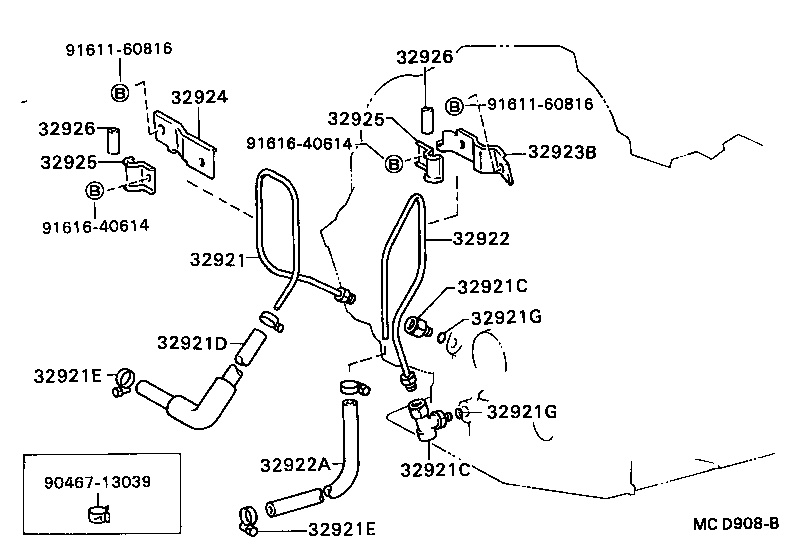

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-32051 |
SV21..4FC |
1 | ||
| 32921-32050 |
SV21..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32901-32010 |
SV21..4FC OUTLET |
1 | ||
| 90404-14007 |
SV21..4FC INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32901-32010 |
SV21..4FC OUTLET |
1 | ||
| 90404-14007 |
SV21..4FC INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-32030 |
SV21..4FC |
1 | ||
| 32941-32051 |
SV21..4FC |
1 | ||
| 32941-32140 |
SV21..4FC |
1 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90460-18002 |
SV21..4FC |
2 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90460-18002 |
SV21..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
SV21..4FC |
3 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
SV21..4FC |
3 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-32040 |
SV21..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-16026 |
SV21..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-20090 |
SV21..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32923-32021 |
SV21..4FC |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 90462-10082 |
SV21..4FC |
2 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 90462-10082 |
SV21..4FC |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
SV21..4FC L=25,ID=8 |
3 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
SV21..4FC L=25,ID=8 |
3 | ||
| Common parts | ||||
| 90467-13039 | ||||
| 91611-60816 | ||||
| 91616-40614 | ||||
