SV21LG-UWPDKK (1988)
Toyota Camry (Jpp)

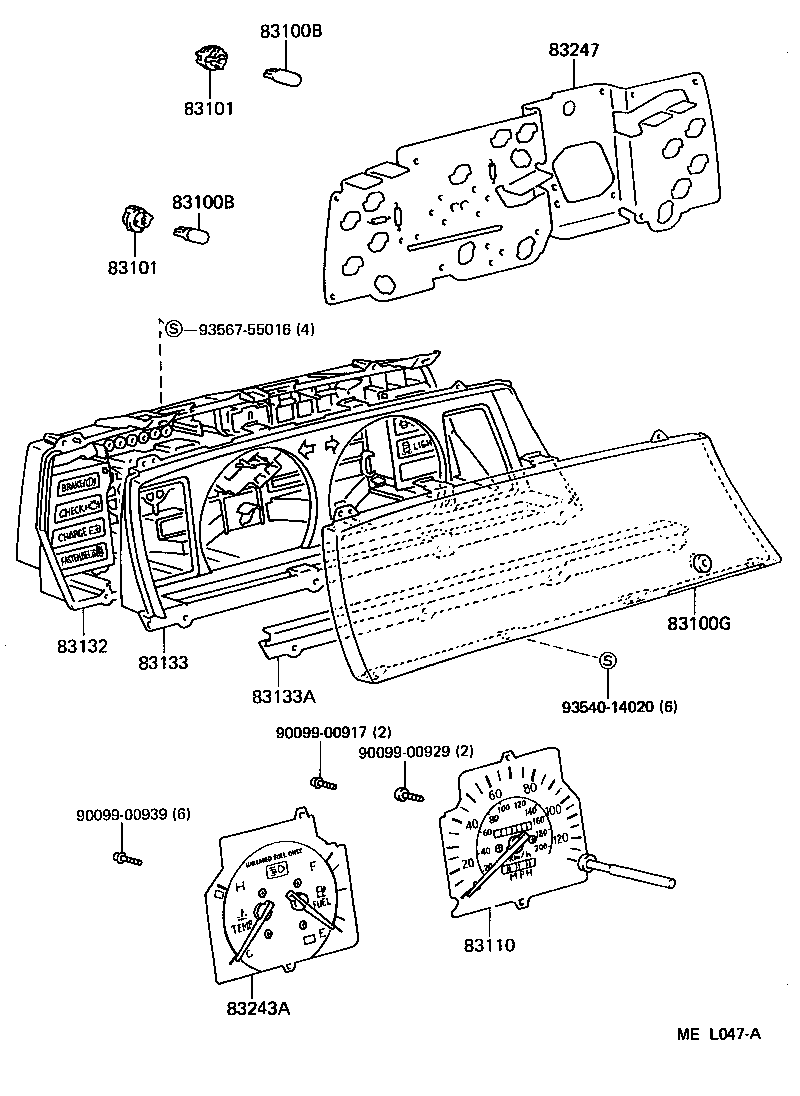

ILLUST NO. 1 OF 3(8808- )DX,STD
ANALOG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
SV2#,VZV21..DX;SV21..WG..LE..USA 12V 3.4W,W(TACHOMETER) |
5 | ||
| 99132-12034 |
SV21..DX;SV25..DX..CND;SV25..5F..USA;SV21..WG..LE..USA 12V 3.4W |
15 | ||
| 83109-10010 |
SV2#,VZV21..DX,LE 12V 1.4W,ORANGE CAP |
1 | ||
| 83109-24020 |
SV2#,VZV21 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
SV2#,VZV21..4FC..DX 12V 3.4W,W(TACHOMETER) |
5 | ||
| 99132-12034 |
SV21..4FC..DX;SV25..4FC..DX..CND 12V 3.4W |
15 | ||
| 90981-11018 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE 12V 1.2W W/O SOCKET |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
SV2#,VZV21..DX;SV21..WG..LE..USA 12V 3.4W,W(TACHOMETER) |
5 | ||
| 99132-12034 |
SV21..DX;SV25..DX..CND;SV25..5F..USA;SV21..WG..LE..USA 12V 3.4W |
15 | ||
| 83109-10010 |
SV2#,VZV21..DX,LE 12V 1.4W,ORANGE CAP |
1 | ||
| 83109-24020 |
SV2#,VZV21 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
SV2#,VZV21..4FC..DX 12V 3.4W,W(TACHOMETER) |
5 | ||
| 99132-12034 |
SV21..4FC..DX;SV25..4FC..DX..CND 12V 3.4W |
15 | ||
| 90981-11018 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE 12V 1.2W W/O SOCKET |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-32050 |
SV2#,VZV21 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV25..5F;SV21..DX;SV21..WG..LE..USA NO.1 |
15 | ||
| 83101-14040 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE NO.2 |
11 | ||
| 83101-14030 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE NO.1 |
5 | ||
| 83101-14030 |
SV21..4FC..DX NO.1 |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV25..5F;SV21..DX;SV21..WG..LE..USA NO.1 |
15 | ||
| 83101-14040 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE NO.2 |
11 | ||
| 83101-14030 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE NO.1 |
5 | ||
| 83101-14030 |
SV21..4FC..DX NO.1 |
15 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32421 |
SV2#..(DX,STD)..CND |
1 | ||
| 83110-32431 |
SV2#..DX..CND W(TACHOMETER) |
1 | ||
| 83110-32421 |
SV2#..4FC..DX..CND |
1 | ||
| 83110-32431 |
SV2#..4FC..DX..CND W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32520 |
SV21..DX;SV25..DX..CND;SV25..5F..USA;SV21..WG..LE..USA |
1 | ||
| 83132-32500 |
SV2#,VZV21..DX;SV21..WG..LE..USA W(TACHOMETER) |
1 | ||
| 83132-32520 |
SV21..4FC..DX;SV25..4FC..DX..CND |
1 | ||
| 83132-32500 |
SV2#,VZV21..4FC..DX W(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32690 |
SV25..4FC..DX..CND;SV21,VZV21..4FC..DX W(TACHOMETER) |
1 | ||
| 83133-32550 |
SV21..5F..STD;SV2#,VZV21..4FC..(DX,STD) |
1 | ||
| 83133-32550 |
SV21..WG..LE..USA;SV2#,VZV21..DX,STD |
1 | ||
| 83133-32690 |
SV25..DX..CND;SV25..5F..USA;SV21,VZV21..DX;SV21..WG..LE..USA W(TACHOMETER) |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-32610 |
SV2#,VZV21 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-32790 |
SV25..5F..CND;SV21..(DX,STD)..CND |
1 | ||
| 83243-32790 |
SV21..4FC..DX..CND |
1 | ||
| 83243-32730 |
SV2#..4FC..DX..CND W(TACHOMETER) |
1 | ||
| 83243-32730 |
SV2#..DX..CND W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-32480 |
SV25..5F;SV21..DX;SV21..WG..LE..USA |
1 | ||
| 83247-32480 |
SV21..4FC..DX |
1 | ||
| 83247-32880 |
SV21,VZV21..4FC..DX W(TACHOMETER) |
1 | ||
| 83247-32880 |
SV25..5F;SV21,VZV21..DX;SV21..WG..LE..USA W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

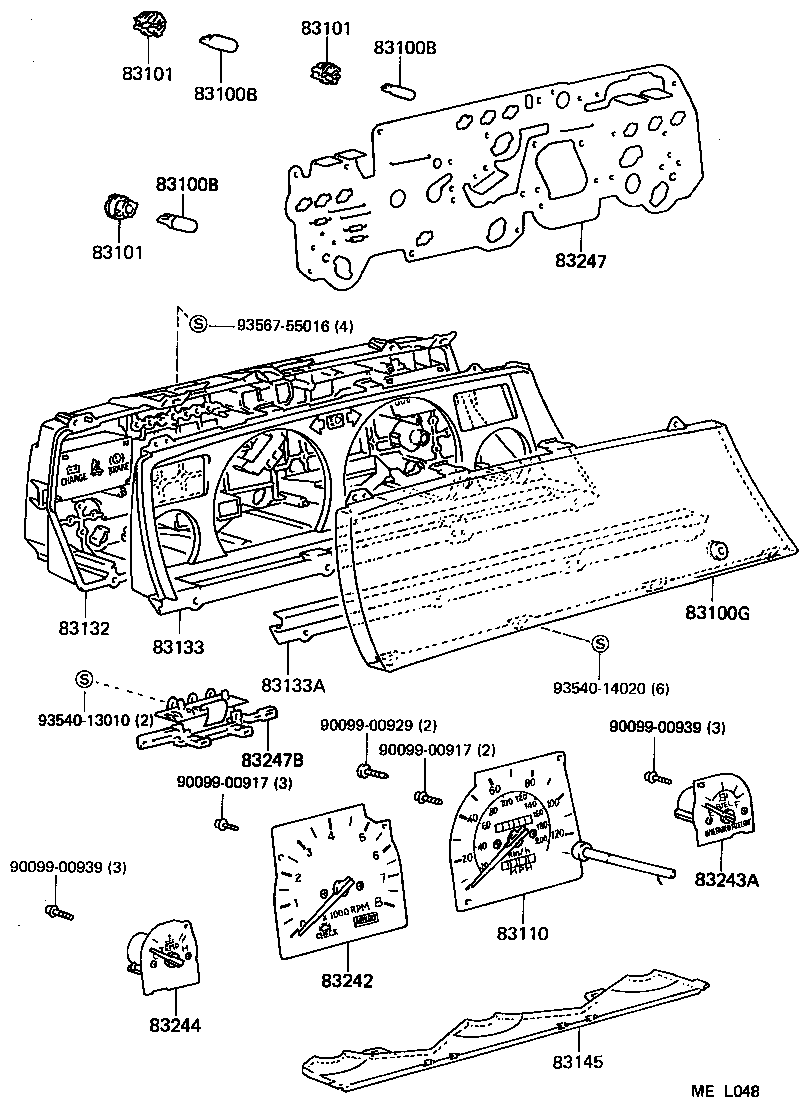

ILLUST NO. 1 OF 3(8808- )DX,LE
ANALOG(W/TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
SV2#,VZV21..DX;SV21..WG..LE..USA 12V 3.4W,W(TACHOMETER) |
5 | ||
| 99132-12034 |
SV21..DX;SV25..DX..CND;SV25..5F..USA;SV21..WG..LE..USA 12V 3.4W |
15 | ||
| 83109-10010 |
SV2#,VZV21..DX,LE 12V 1.4W,ORANGE CAP |
1 | ||
| 83109-24020 |
SV2#,VZV21 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
SV2#,VZV21..4FC..DX 12V 3.4W,W(TACHOMETER) |
5 | ||
| 99132-12034 |
SV21..4FC..DX;SV25..4FC..DX..CND 12V 3.4W |
15 | ||
| 90981-11018 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE 12V 1.2W W/O SOCKET |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
SV2#,VZV21..DX;SV21..WG..LE..USA 12V 3.4W,W(TACHOMETER) |
5 | ||
| 99132-12034 |
SV21..DX;SV25..DX..CND;SV25..5F..USA;SV21..WG..LE..USA 12V 3.4W |
15 | ||
| 83109-10010 |
SV2#,VZV21..DX,LE 12V 1.4W,ORANGE CAP |
1 | ||
| 83109-24020 |
SV2#,VZV21 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
SV2#,VZV21..4FC..DX 12V 3.4W,W(TACHOMETER) |
5 | ||
| 99132-12034 |
SV21..4FC..DX;SV25..4FC..DX..CND 12V 3.4W |
15 | ||
| 90981-11018 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE 12V 1.2W W/O SOCKET |
10 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
SV2#,VZV21..DX;SV21..WG..LE..USA 12V 3.4W,W(TACHOMETER) |
5 | ||
| 99132-12034 |
SV21..DX;SV25..DX..CND;SV25..5F..USA;SV21..WG..LE..USA 12V 3.4W |
15 | ||
| 83109-10010 |
SV2#,VZV21..DX,LE 12V 1.4W,ORANGE CAP |
1 | ||
| 83109-24020 |
SV2#,VZV21 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
SV2#,VZV21..4FC..DX 12V 3.4W,W(TACHOMETER) |
5 | ||
| 99132-12034 |
SV21..4FC..DX;SV25..4FC..DX..CND 12V 3.4W |
15 | ||
| 90981-11018 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE 12V 1.2W W/O SOCKET |
10 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-32050 |
SV2#,VZV21 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV25..5F;SV21..DX;SV21..WG..LE..USA NO.1 |
15 | ||
| 83101-14040 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE NO.2 |
11 | ||
| 83101-14030 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE NO.1 |
5 | ||
| 83101-14030 |
SV21..4FC..DX NO.1 |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV25..5F;SV21..DX;SV21..WG..LE..USA NO.1 |
15 | ||
| 83101-14040 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE NO.2 |
11 | ||
| 83101-14030 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE NO.1 |
5 | ||
| 83101-14030 |
SV21..4FC..DX NO.1 |
15 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV25..5F;SV21..DX;SV21..WG..LE..USA NO.1 |
15 | ||
| 83101-14040 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE NO.2 |
11 | ||
| 83101-14030 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE NO.1 |
5 | ||
| 83101-14030 |
SV21..4FC..DX NO.1 |
15 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-32421 |
SV2#..(DX,STD)..CND |
1 | ||
| 83110-32431 |
SV2#..DX..CND W(TACHOMETER) |
1 | ||
| 83110-32421 |
SV2#..4FC..DX..CND |
1 | ||
| 83110-32431 |
SV2#..4FC..DX..CND W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-32520 |
SV21..DX;SV25..DX..CND;SV25..5F..USA;SV21..WG..LE..USA |
1 | ||
| 83132-32500 |
SV2#,VZV21..DX;SV21..WG..LE..USA W(TACHOMETER) |
1 | ||
| 83132-32520 |
SV21..4FC..DX;SV25..4FC..DX..CND |
1 | ||
| 83132-32500 |
SV2#,VZV21..4FC..DX W(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-32690 |
SV25..4FC..DX..CND;SV21,VZV21..4FC..DX W(TACHOMETER) |
1 | ||
| 83133-32550 |
SV21..5F..STD;SV2#,VZV21..4FC..(DX,STD) |
1 | ||
| 83133-32550 |
SV21..WG..LE..USA;SV2#,VZV21..DX,STD |
1 | ||
| 83133-32690 |
SV25..DX..CND;SV25..5F..USA;SV21,VZV21..DX;SV21..WG..LE..USA W(TACHOMETER) |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-32610 |
SV2#,VZV21 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-32370 |
SV2#,VZV21..DX,LE |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-32280 |
SV25..5F..CND;SV21..(DX,LE)..CND |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-32790 |
SV25..5F..CND;SV21..(DX,STD)..CND |
1 | ||
| 83243-32790 |
SV21..4FC..DX..CND |
1 | ||
| 83243-32730 |
SV2#..4FC..DX..CND W(TACHOMETER) |
1 | ||
| 83243-32730 |
SV2#..DX..CND W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-32550 |
SV2#,VZV21..DX,LE |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-32480 |
SV25..5F;SV21..DX;SV21..WG..LE..USA |
1 | ||
| 83247-32480 |
SV21..4FC..DX |
1 | ||
| 83247-32880 |
SV21,VZV21..4FC..DX W(TACHOMETER) |
1 | ||
| 83247-32880 |
SV25..5F;SV21,VZV21..DX;SV21..WG..LE..USA W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93540-13010 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
SV2#,VZV21 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-32210 |
SV2# |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-32170 |
SV21;SV25..4FC |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-32170 |
SV21;SV25..4FC |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-32061 |
SV2#,VZV21 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
ILLUST NO. 2 OF 3(8808- )
SOCKET & BULB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
SV2#,VZV21..DX;SV21..WG..LE..USA 12V 3.4W,W(TACHOMETER) |
5 | ||
| 99132-12034 |
SV21..DX;SV25..DX..CND;SV25..5F..USA;SV21..WG..LE..USA 12V 3.4W |
15 | ||
| 83109-10010 |
SV2#,VZV21..DX,LE 12V 1.4W,ORANGE CAP |
1 | ||
| 83109-24020 |
SV2#,VZV21 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
SV2#,VZV21..4FC..DX 12V 3.4W,W(TACHOMETER) |
5 | ||
| 99132-12034 |
SV21..4FC..DX;SV25..4FC..DX..CND 12V 3.4W |
15 | ||
| 90981-11018 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE 12V 1.2W W/O SOCKET |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
SV25..5F;SV21..DX;SV21..WG..LE..USA NO.1 |
15 | ||
| 83101-14040 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE NO.2 |
11 | ||
| 83101-14030 |
SV25..LE;SV25..5F;SV21,VZV21..DX,LE NO.1 |
5 | ||
| 83101-14030 |
SV21..4FC..DX NO.1 |
15 | ||
| Common parts | ||||
| 83101-14030 | ||||
| 83101-14040 | ||||
| 83101-32010 | ||||
| 83109-10010 | ||||
| 83109-20030 | ||||
| 83109-24020 | ||||
| 90981-11018 | ||||
| 99132-12034 | ||||
