SV21LG-UWPDKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )DX,STD

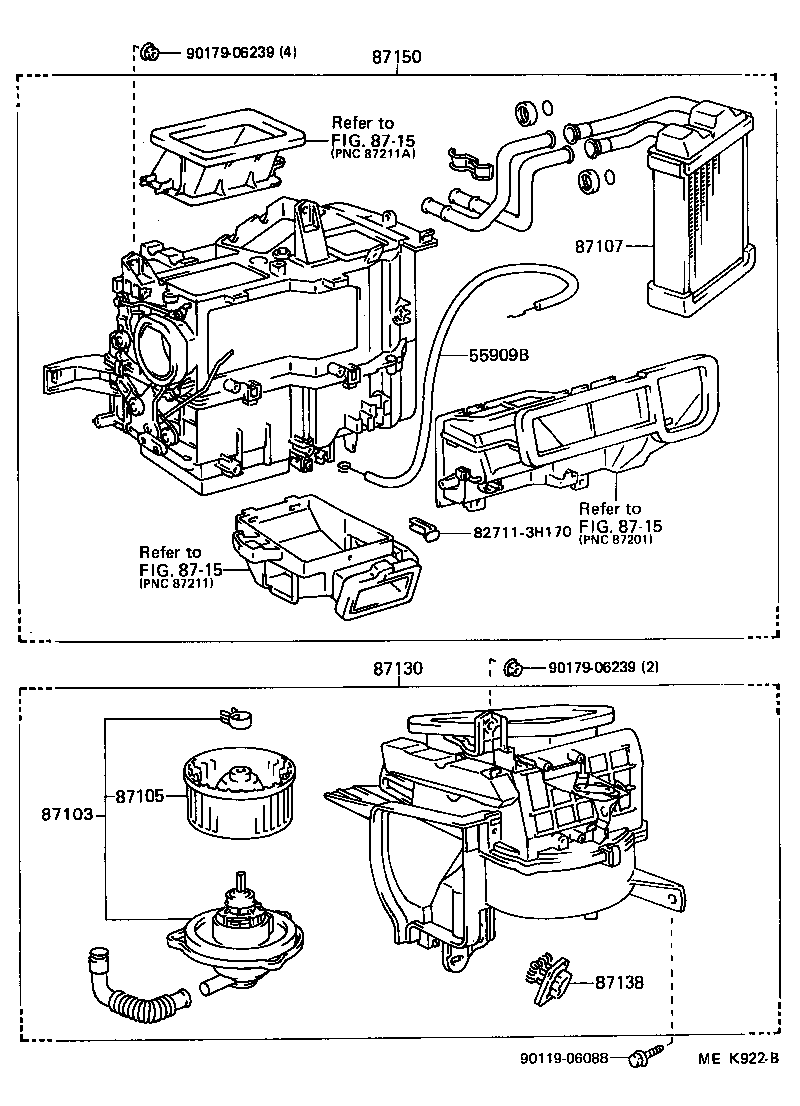

Click highlighted areas on diagram

diagram 55909B 827113H170 87103 87105 87107 87130 87138 8715 8715 8715 87150 9011906088 9017906239 9017906239
Part # Description Qty Price
55909B - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-32120

SV2#,VZV21..DX,STD

 1
55909-32121

SV2#,VZV21..DX,STD

 1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-32030

SV2#,VZV21

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32020

SV2#,VZV21

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-32071

SV2#,VZV21

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-32100

SV2#,VZV21..DX,STD

 1
87138 - RESISTOR, HEATER BLOWER
87138-32040

SV2#,VZV21..DX,STD

 1
87150 - RADIATOR ASSY, HEATER
87150-32121

SV2#,VZV21..DX,STD

 1
87150-32120

SV2#,VZV21..DX,STD

 1
Common parts
82711-3H170
90119-06088
90179-06239
Linked diagrams
8715
