SV21LG-UWPDKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

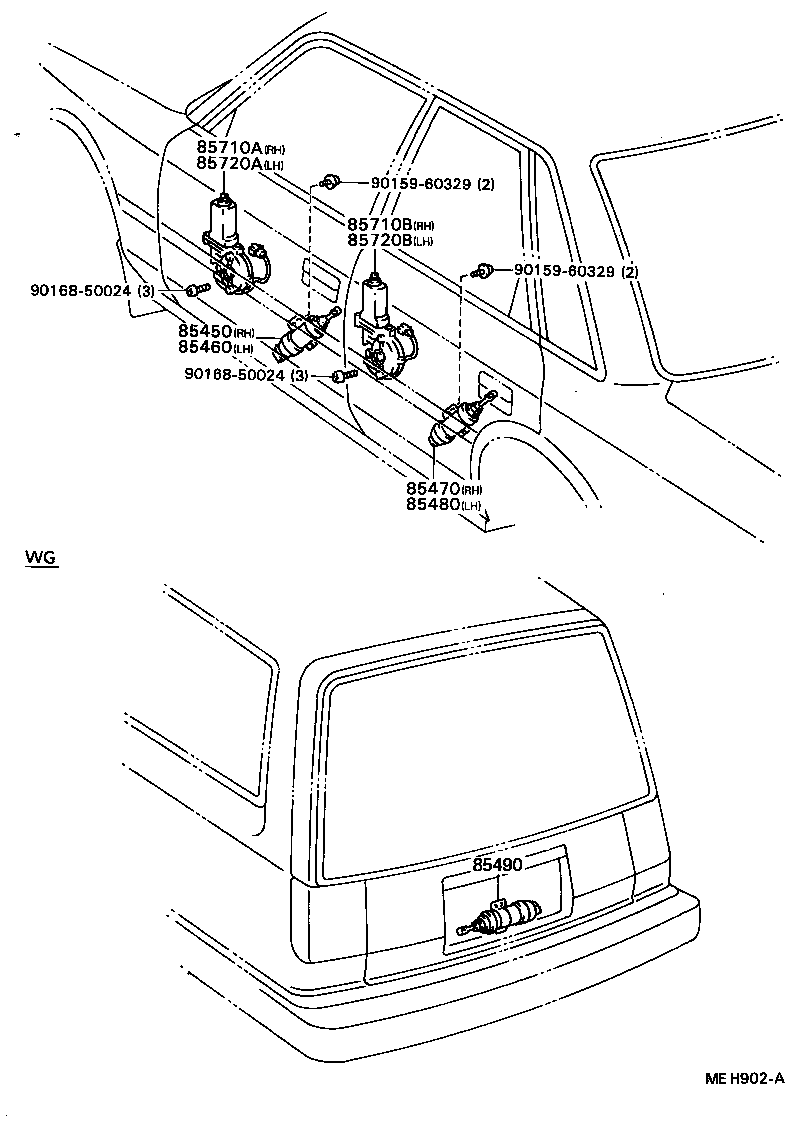

Click highlighted areas on diagram

diagram 85450 85460 85470 85480 85490 85710A 85710B 85720A 85720B 9015960329 9015960329 9016850024 9016850024
Part # Description Qty Price
85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH
85450-17050

SV25;SV21,VZV21..WG;SV21,VZV21..SED..DX

 1
85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH
85450-17060

SV25;SV21,VZV21..WG;SV21,VZV21..SED..DX

 1
85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH
85450-32050

SV25;SV21,VZV21..WG;SV21,VZV21..SED..DX

 1
85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH
85450-32060

SV25;SV21,VZV21..WG;SV21,VZV21..SED..DX

 1
85490 - SOLENOID ASSY, DOOR CONTROL BACK
85450-32080

SV21,VZV21..WG

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-32040

SV2#,VZV21..DX,LE

 1
85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH
85710-32050

SV2#,VZV21..DX,LE

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-32040

SV2#,VZV21..DX,LE

 1
85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH
85720-32050

SV2#,VZV21..DX,LE

 1
Common parts
90159-60329
90168-50024
