SV21L-UEPNKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

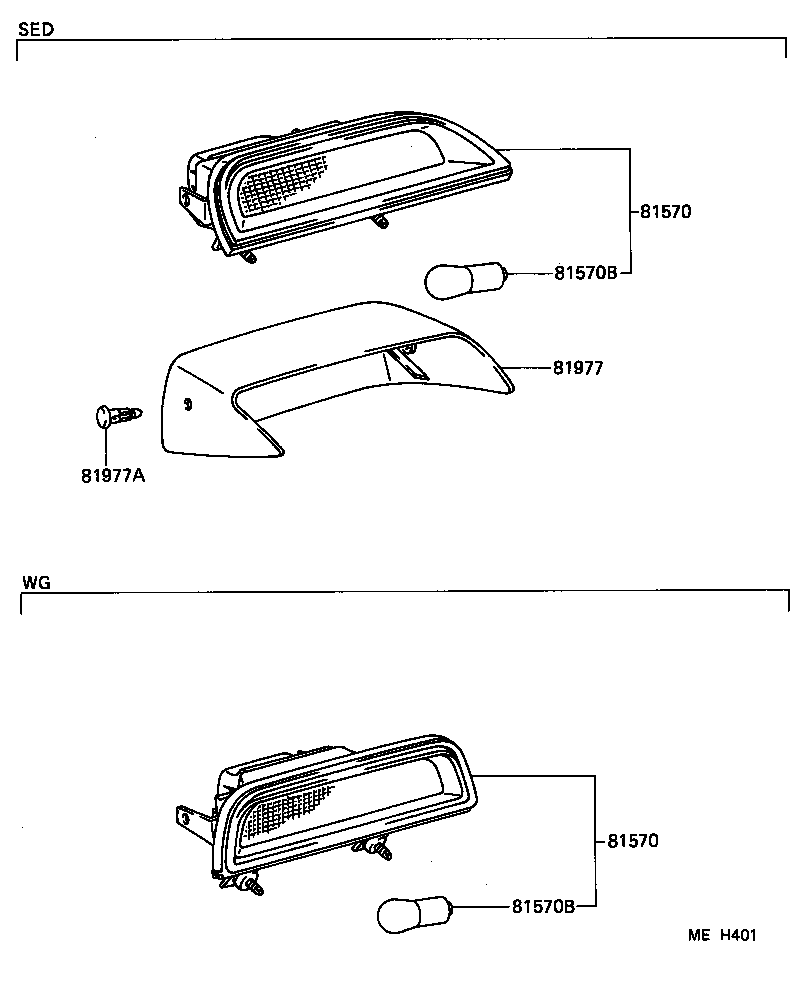

Click highlighted areas on diagram

diagram 81570 81570 81570B 81570B 81977 81977A
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-32030

SV2#,VZV21..SED

 1
81570 - LAMP ASSY, CENTER STOP
81570-32030

SV2#,VZV21..SED

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11270

SV2#,VZV21

12V 27W

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-11270

SV2#,VZV21

12V 27W

 1
81977 - COVER, CENTER STOP LAMP
81977-3203003

SV2#,VZV21..SED

MEDIUM GRAY,TRIM1#

 1
81977-3203004

SV2#,VZV21..SED

DARK BLUE,TRIM8#

 1
81977-3203006

SV2#,VZV21..SED

BROWN,TRIM4#

 1
81977-3203002

SV2#,VZV21..SED..USA

MAROON,TRIM3#

 1
81977-3203002

SV2#,VZV21..SED..(LE,STD)..USA

MAROON,TRIM3#

 1
81977-3203004

SV2#,VZV21..SED..(LE,STD)

DARK BLUE,TRIM8#

 1
81977-3203003

SV2#,VZV21..SED..(LE,STD)..USA

MEDIUM GRAY,TRIM1#

 1
81977-3203006

SV2#,VZV21..SED..(LE,STD)

BROWN,TRIM4#

 1
81977A - CLIP (FOR CENTER STOP LAMP)
90467-07055D0

SV2#,VZV21..SED..(LE,STD)..USA

MAROON,TRIM3#

 2
90467-07055J0

SV2#,VZV21..SED..(LE,STD)

DARK BLUE,TRIM8#

 2
90467-07055E0

SV2#,VZV21..SED..(LE,STD)

BROWN,TRIM4#

 2
90467-07055B0

SV2#,VZV21..SED

MEDIUM GRAY,TRIM1#

 2
90467-07055B0

SV2#,VZV21..SED..(LE,STD)..USA

MEDIUM GRAY,TRIM1#

 2
90467-07055D0

SV2#,VZV21..SED..USA

MAROON,TRIM3#

 2
90467-07055E0

SV2#,VZV21..SED

BROWN,TRIM4#

 2
90467-07055J0

SV2#,VZV21..SED

DARK BLUE,TRIM8#

 2
