SV21L-UEPDKK (1988)
Toyota Camry (Jpp)
ILLUST NO. 2 OF 2(8808-8908)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(8908-9008)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9008- )
| Part # | Description | Qty | Price |
|---|

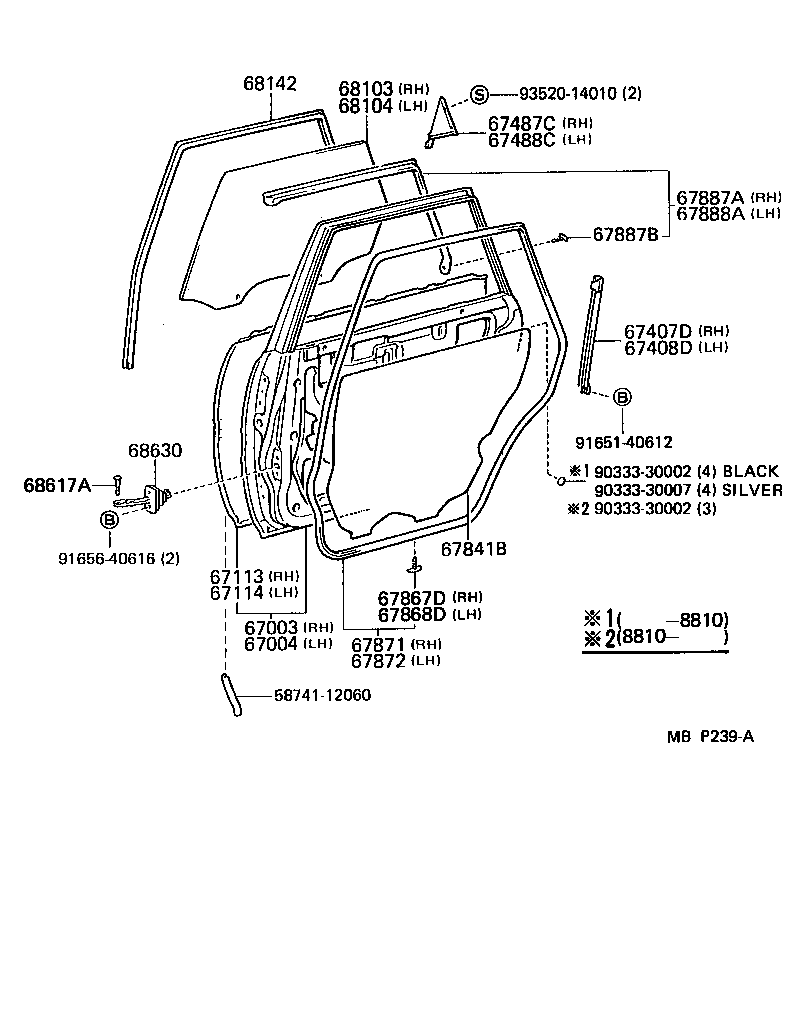

ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-32100 |
SV2#,VZV21..SED |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-32100 |
SV2#,VZV21..SED |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-32040 |
SV2#,VZV21 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-32040 |
SV2#,VZV21 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-32030 |
SV2#,VZV21 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-32030 |
SV2#,VZV21 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-32030 |
SV2#,VZV21 |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-32030 |
SV2#,VZV21 |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-32050 |
SV2#,VZV21 |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-20010 |
SV2#,VZV21..SED |
17 | ||
| 67868-32030 |
SV2#,VZV21..SED |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-32030 |
SV2#,VZV21..SED |
17 | ||
| 67868-20010 |
SV2#,VZV21..SED |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-32050 |
SV2#,VZV21..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-32050 |
SV2#,VZV21..SED |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-32010 |
SV2#,VZV21..SED |
1 | ||
| 67887B - CLIP(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67869-30020 |
SV2#,VZV21 |
2 | ||
| 67869-20020 |
SV2#,VZV21 |
2 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-32010 |
SV2#,VZV21..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-32050 |
SV2#,VZV21..SED *TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-32050 |
SV2#,VZV21..SED *TT,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68152-32010 |
SV2#,VZV21..SED LH |
1 | ||
| 68142-32050 |
SV2#,VZV21..SED RH |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-32010 |
SV2#,VZV21 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-32031 |
SV2#,VZV21 |
2 | ||
| Common parts | ||||
| 58741-12060 | ||||
| 90333-30002 | ||||
| 90333-30007 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93520-14010 | ||||

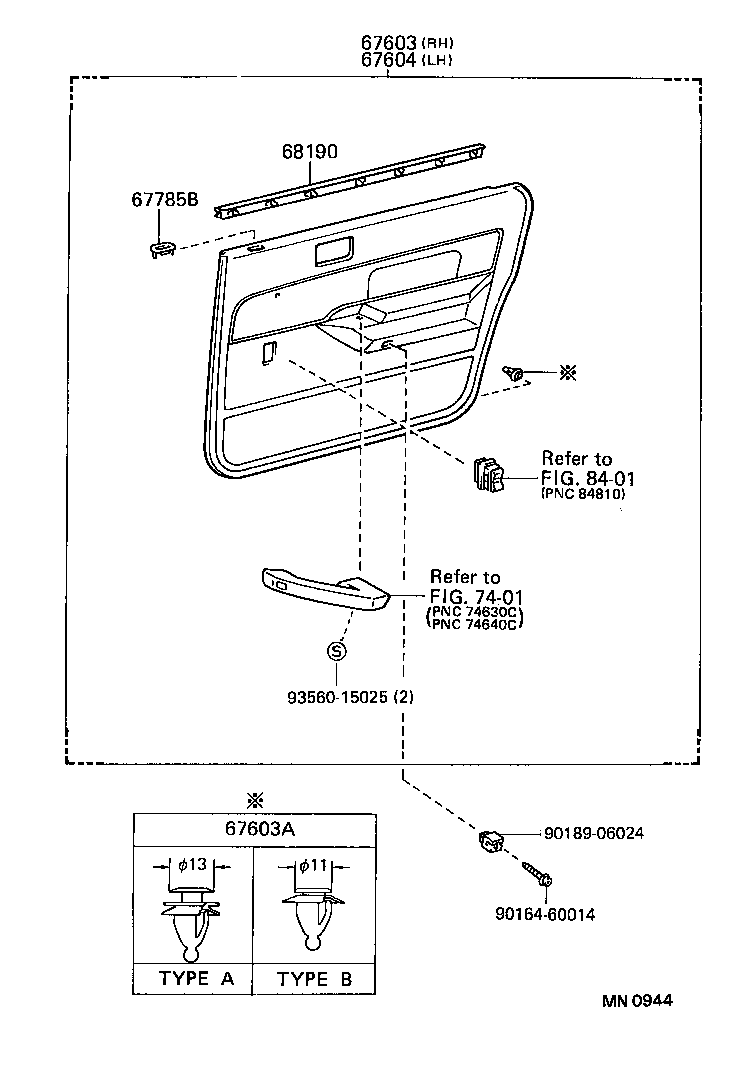

ILLUST NO. 2 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3273003 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-3273004 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 67630-3273006 |
SV2#,VZV21..DX BROWN,TRIM4# |
1 | ||
| 67630-3274006 |
SV2#,VZV21..DX W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67630-3274003 |
SV2#,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-32730E0 |
SV2#,VZV21..DX BROWN,TRIM4# |
1 | ||
| 67630-3274004 |
SV2#,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67630-32730B0 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-32740B0 |
SV2#,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-32730J0 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 67630-32740E0 |
SV2#,VZV21..DX W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67630-3273103 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-32740J0 |
SV2#,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67630-3273104 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 67630-3274103 |
SV2#,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-3274104 |
SV2#,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67630-3273106 |
SV2#,VZV21..DX BROWN,TRIM4# |
1 | ||
| 67630-3274106 |
SV2#,VZV21..DX W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-32040 |
SV2#,VZV21..DX,LE TYPE B |
3 | ||
| 67771-14040 |
SV2#,VZV21..DX,LE TYPE A |
13 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-3273006 |
SV2#,VZV21..DX BROWN,TRIM4# |
1 | ||
| 67640-3273004 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 67640-3273003 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-3274006 |
SV2#,VZV21..DX W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67640-3274003 |
SV2#,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-32730B0 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-32730J0 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 67640-32730E0 |
SV2#,VZV21..DX BROWN,TRIM4# |
1 | ||
| 67640-32740J0 |
SV2#,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67640-3274004 |
SV2#,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67640-32740E0 |
SV2#,VZV21..DX W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67640-3274103 |
SV2#,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-3273103 |
SV2#,VZV21..DX MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-32740B0 |
SV2#,VZV21..DX W(POWER WINDOW),MEDIUM GRAY,TRIM1# |
1 | ||
| 67640-3274104 |
SV2#,VZV21..DX W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 67640-3274106 |
SV2#,VZV21..DX W(POWER WINDOW),BROWN,TRIM4# |
1 | ||
| 67640-3273104 |
SV2#,VZV21..DX DARK BLUE,TRIM8# |
1 | ||
| 67640-3273106 |
SV2#,VZV21..DX BROWN,TRIM4# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-3201004 |
SV2#,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 69751-1204013 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-3201003 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
2 | ||
| 69751-3201016 |
SV2#,VZV21 BROWN,TRIM4# |
2 | ||
| 69751-32010J0 |
SV2#,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 69751-12040J0 |
SV2#,VZV21 DARK BLUE,TRIM8# |
2 | ||
| 69751-12040E1 |
SV2#,VZV21 BROWN,TRIM4# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-32030 |
SV2#,VZV21 |
2 | ||
| Common parts | ||||
| 90164-60014 | ||||
| 90189-06024 | ||||
| 93560-15025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
