SV21L-UEPBKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

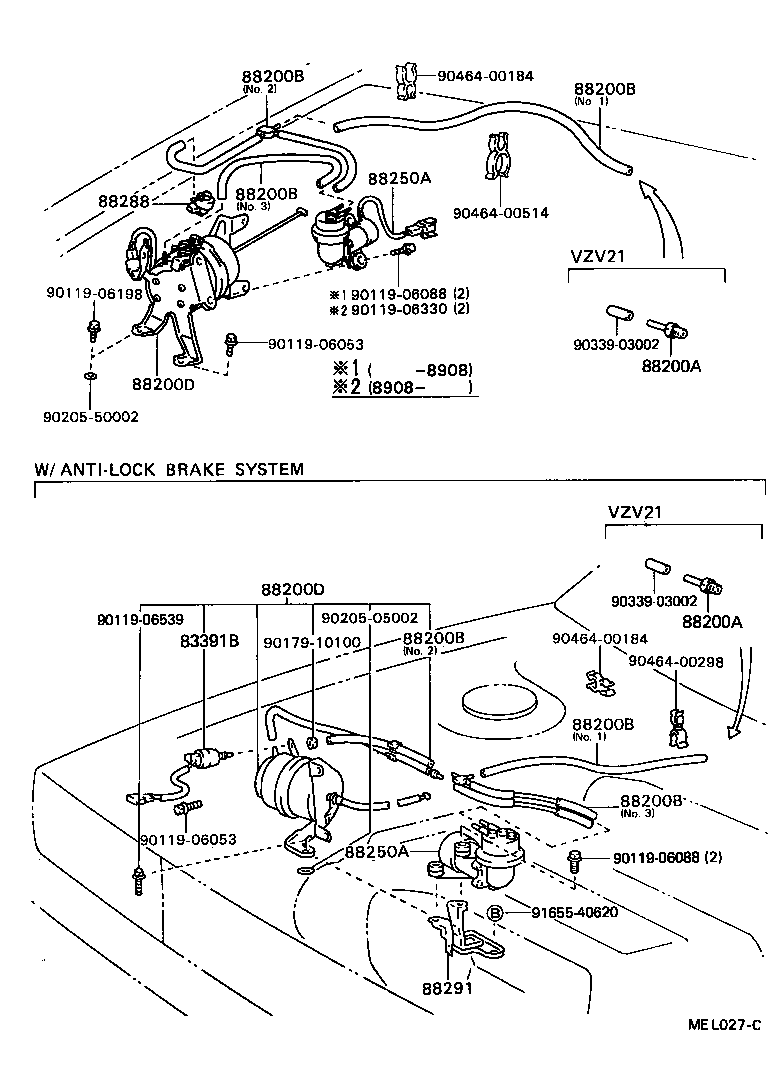

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 83391B 88200A 88200A 88200B 88200B 88200B 88200B 88200B 88200B 88200D 88200D 88250A 88250A 88288 88291 9011906053 9011906053 9011906088 9011906088 9011906198 9011906330 9011906539 9017910100 9020505002 9020550002 9033903002 9033903002 9046400184 9046400184 9046400298 9046400514 9165540620
Part # Description Qty Price
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92002

SV2#,VZV21

*H,L=300,NO.3

 1
95411-10095

SV2#

*H,L=800,MARK=#0,NO.4

 1
88283-32030

SV2#,VZV21

NO.2

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92002

SV2#,VZV21

*H,L=300,NO.3

 1
95411-10095

SV2#

*H,L=800,MARK=#0,NO.4

 1
88283-32030

SV2#,VZV21

NO.2

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92002

SV2#,VZV21

*H,L=300,NO.3

 1
95411-10095

SV2#

*H,L=800,MARK=#0,NO.4

 1
88283-32030

SV2#,VZV21

NO.2

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92002

SV2#,VZV21

*H,L=300,NO.3

 1
95411-10095

SV2#

*H,L=800,MARK=#0,NO.4

 1
88283-32030

SV2#,VZV21

NO.2

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92002

SV2#,VZV21

*H,L=300,NO.3

 1
95411-10095

SV2#

*H,L=800,MARK=#0,NO.4

 1
88283-32030

SV2#,VZV21

NO.2

 1
88200B - HOSE, CRUISE CONTROL VACUUM
90999-92002

SV2#,VZV21

*H,L=300,NO.3

 1
95411-10095

SV2#

*H,L=800,MARK=#0,NO.4

 1
88283-32030

SV2#,VZV21

NO.2

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-32060

SV21;SV25,VZV21..DX

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-32060

SV21;SV25,VZV21..DX

 1
88250A - PUMP ASSY, CRUISE CONTROL
88251-32080

SV21;SV25,VZV21..DX

 1
88250A - PUMP ASSY, CRUISE CONTROL
88251-32080

SV21;SV25,VZV21..DX

 1
88288 - SWITCH, VACUUM SPEED CONTROL
88288-22010

SV2#,VZV21

 1
88288-40020

SV2#,VZV21

 1
Common parts
90119-06053
90119-06088
90119-06198
90119-06330
90119-06539
90179-10100
90205-05002
90205-50002
90339-03002
90464-00184
90464-00298
90464-00514
91655-40620

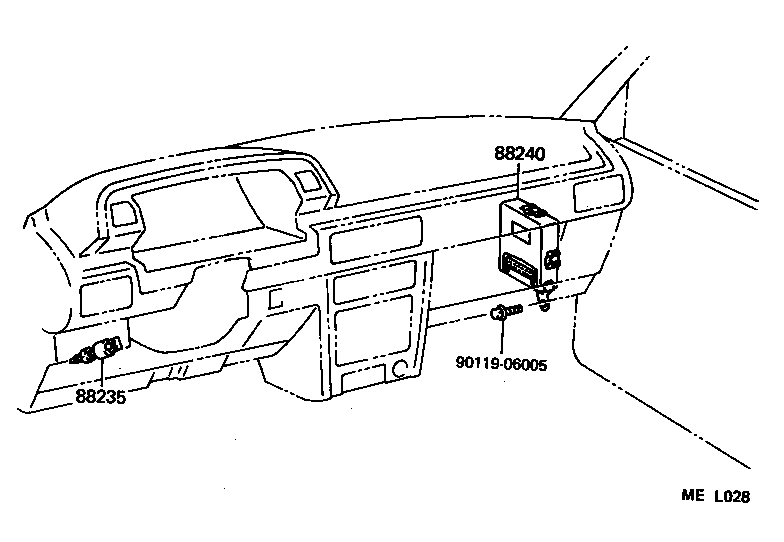

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 88235 88240 9011906005
Part # Description Qty Price
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-32111

SV2#,VZV21

 1
Common parts
90119-06005
