SV21L-UEPBKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

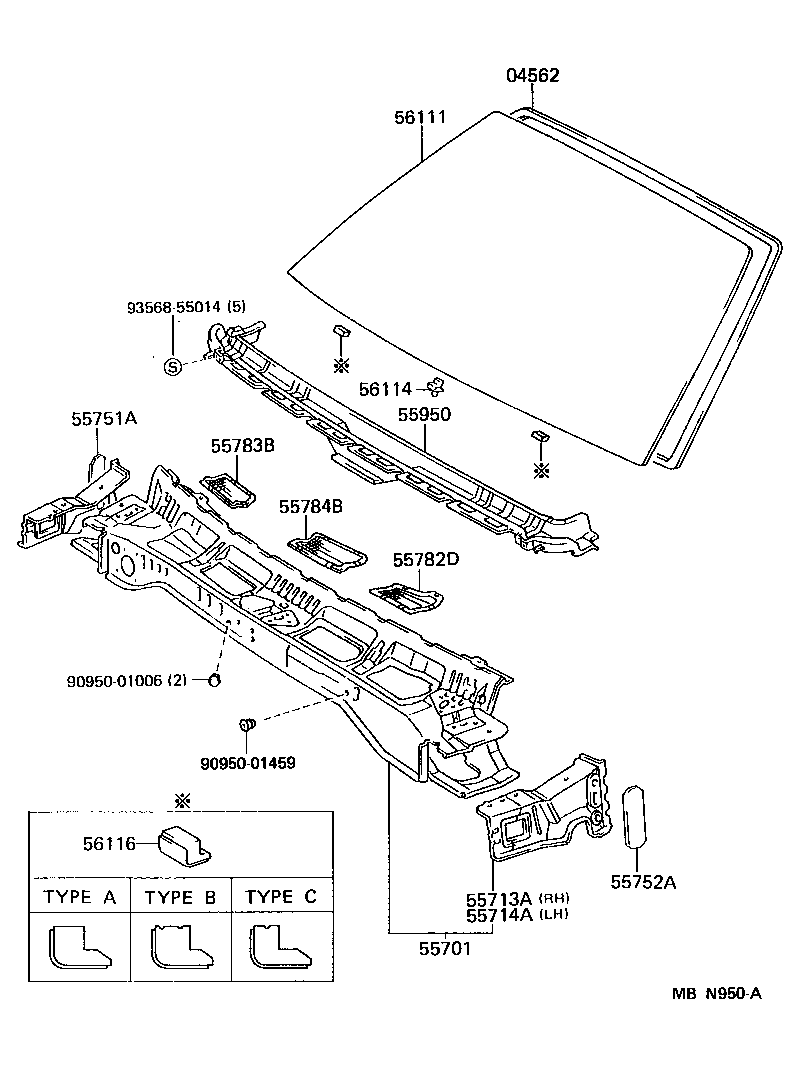

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-30040 |
SV2#,VZV21 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-32130 |
SV21,VZV21 |
1 | ||
| 55700-32132 |
SV21,VZV21 |
1 | ||
| 55700-32133 |
SV21,VZV21 |
1 | ||
| 55700-32131 |
SV21,VZV21 |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-32020 |
SV2#,VZV21 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-32020 |
SV2#,VZV21 |
1 | ||
| 55751A - SHIELD, COWL VENTILATOR SPLASH, RH | ||||
| 55751-32010 |
SV2#,VZV21 |
1 | ||
| 55752A - SHIELD, COWL VENTILATOR SPLASH, LH | ||||
| 55751-32010 |
SV2#,VZV21 |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-32030 |
SV2#,VZV21 |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-32030 |
SV2#,VZV21 |
1 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-32030 |
SV2#,VZV21 |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-32041 |
SV2#,VZV21 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-32200 |
SV2#,VZV21..DX,STD *TL,T=5.3 |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-32010 |
SV2#,VZV21 |
2 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-32040 |
SV2#,VZV21 TYPE A |
2 | ||
| 56116-32050 |
SV2#,VZV21 TYPE B |
2 | ||
| 56116-32060 |
SV2#,VZV21 TYPE C |
2 | ||
| Common parts | ||||
| 90950-01006 | ||||
| 90950-01459 | ||||
| 93568-55014 | ||||
