SV21L-UEPBKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SV21,VZV21

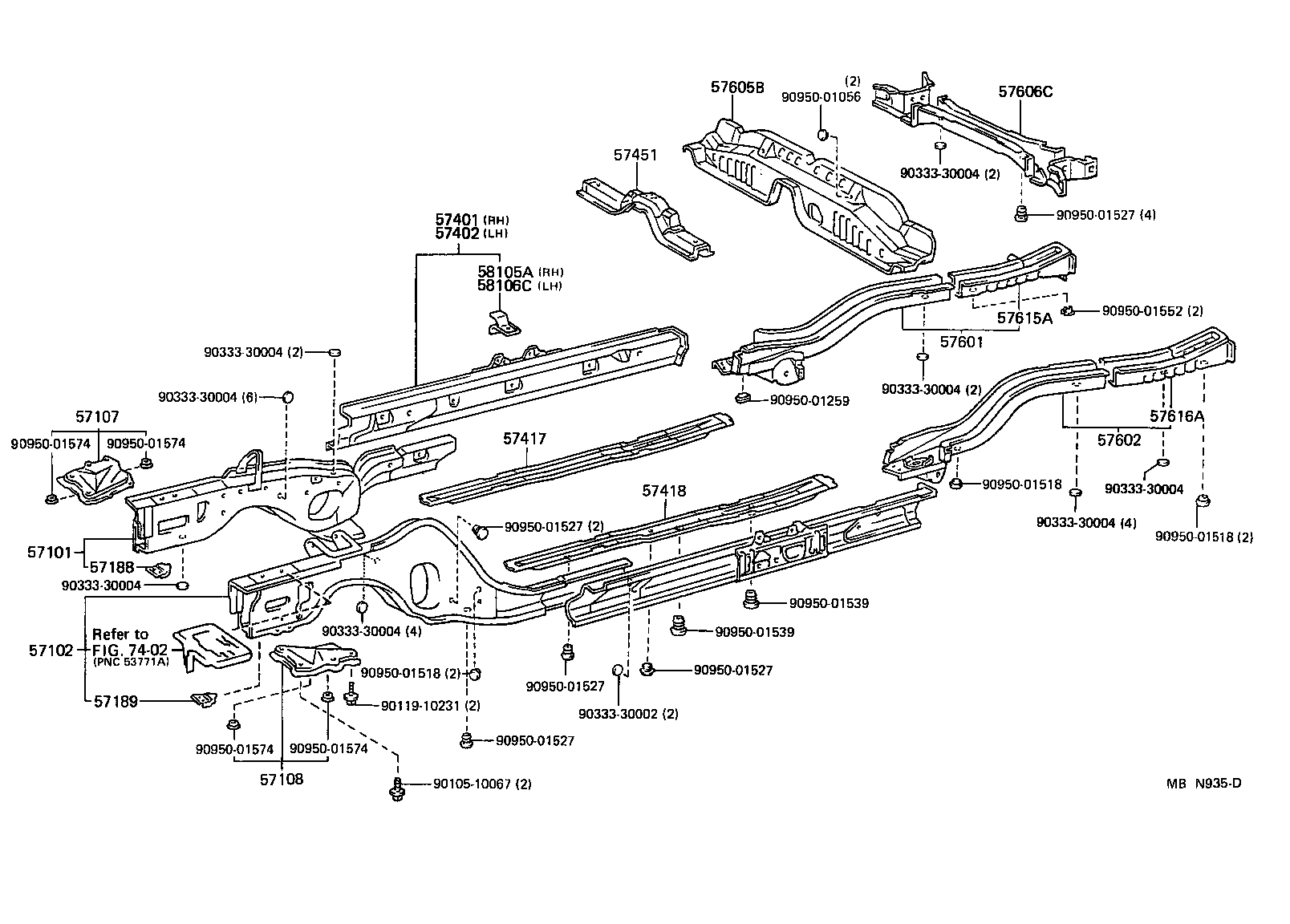

Click highlighted areas on diagram

diagram 57101 57102 57107 57108 57188 57189 57401 57402 57417 57418 57451 57601 57602 57605B 57606C 57615A 57616A 58105A 58106C 7402 9010510067 9011910231 9033330002 9033330004 9033330004 9033330004 9033330004 9033330004 9033330004 9033330004 9033330004 9095001056 9095001259 9095001518 9095001518 9095001518 9095001527 9095001527 9095001527 9095001527 9095001527 9095001539 9095001539 9095001552 9095001574 9095001574 9095001574 9095001574
Part # Description Qty Price
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-32070

SV21,VZV21

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-32041

SV2#,VZV21

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-32020

SV2#,VZV21

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-32020

SV2#,VZV21

 1
57188 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57188-32030

SV2#,VZV21

 1
57189 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57189-32030

SV2#,VZV21

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-32030

SV2#,VZV21..USA

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-32030

SV2#,VZV21..USA

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-32030

SV2#,VZV21

 1
57417-32031

SV2#,VZV21

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57417-32030

SV2#,VZV21

 1
57417-32031

SV2#,VZV21

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-32020

SV21,VZV21

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-32071

SV21,VZV21..SED

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-32071

SV21,VZV21..SED

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-32020

SV21,VZV21

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-32030

SV21,VZV21..SED

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-32906

SV21,VZV21..SED

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-32912

SV21,VZV21..SED

 1
58105A - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE, RH
58105-32020

SV2#,VZV21

 1
58106C - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58106-32020

SV2#,VZV21

 1
Common parts
90105-10067
90119-10231
90333-30002
90333-30004
90950-01056
90950-01259
90950-01518
90950-01527
90950-01539
90950-01552
90950-01574
Linked diagrams
7402
