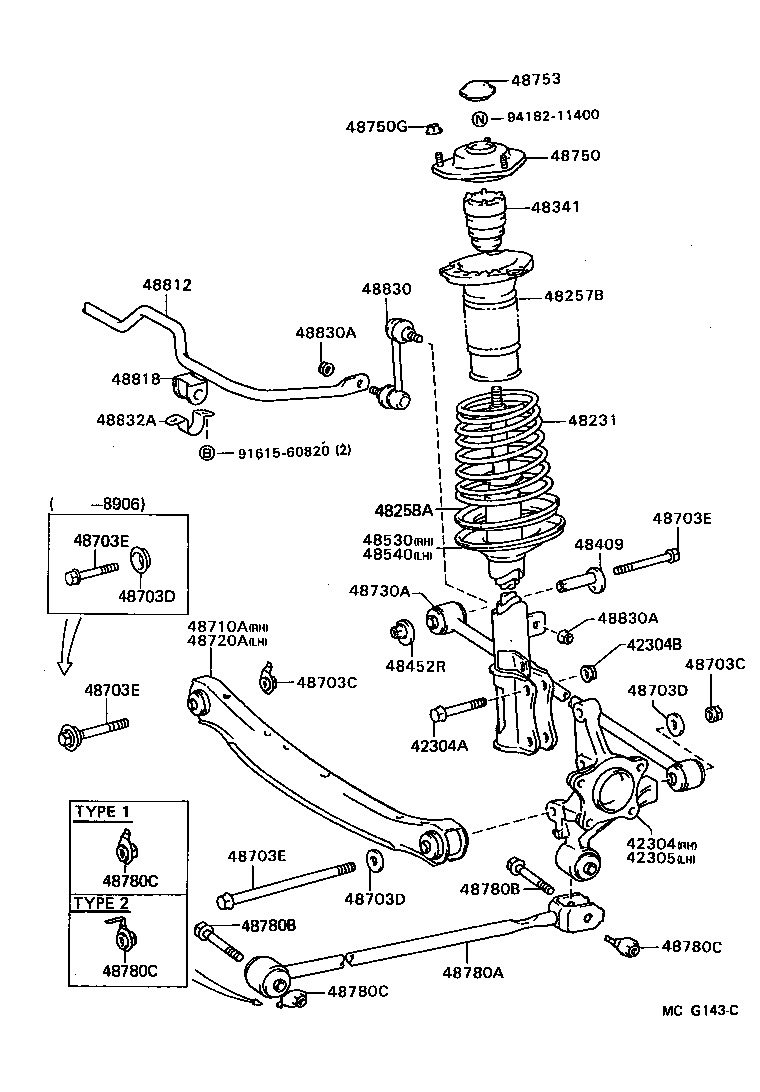

SV21L-UEPBKA (1988)
Toyota Camry (Jpp)
(8808- )SV21,VZV21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-32030 |
SV21,VZV21 |
1 | ||
| 42304A - BOLT (FOR REAR AXLE CARRIER) | ||||
| 90105-15001 |
SV2#,VZV21 |
4 | ||
| 42304B - NUT (FOR REAR AXLE CARRIER) | ||||
| 90179-15001 |
SV2#,VZV21 |
4 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-32030 |
SV21,VZV21 |
1 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-32270 |
SV21..SED |
2 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-32030 |
SV2#,VZV21 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-32010 |
SV2#,VZV21 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-32030 |
SV21,VZV21 |
2 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-32020 |
SV21,VZV21 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-32020 |
SV21,VZV21 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-32120 |
SV21..SED |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-32120 |
SV21..SED |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-12063 |
SV21,VZV21 BODY SIDE |
2 | ||
| 90179-14019 |
SV21,VZV21 CARRIER SIDE |
2 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-12063 |
SV21,VZV21 BODY SIDE |
2 | ||
| 90179-14019 |
SV21,VZV21 CARRIER SIDE |
2 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
SV21,VZV21 |
4 | ||
| 90201-14017 |
SV21,VZV21 CARRIER SIDE |
4 | ||
| 90209-13008 |
SV21,VZV21 BODY SIDE |
2 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
SV21,VZV21 |
4 | ||
| 90201-14017 |
SV21,VZV21 CARRIER SIDE |
4 | ||
| 90209-13008 |
SV21,VZV21 BODY SIDE |
2 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90201-14017 |
SV21,VZV21 |
4 | ||
| 90201-14017 |
SV21,VZV21 CARRIER SIDE |
4 | ||
| 90209-13008 |
SV21,VZV21 BODY SIDE |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-12159 |
SV21,VZV21 *12-1.25PX81.5-24 |
2 | ||
| 90105-14036 |
SV21,VZV21 *14-1.5PX248-30 |
2 | ||
| 90105-12132 |
SV21,VZV21 *12-1.25PX80-20 |
2 | ||
| 90109-12034 |
SV21,VZV21 *12-1.25PX81.5-24 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-12159 |
SV21,VZV21 *12-1.25PX81.5-24 |
2 | ||
| 90105-14036 |
SV21,VZV21 *14-1.5PX248-30 |
2 | ||
| 90105-12132 |
SV21,VZV21 *12-1.25PX80-20 |
2 | ||
| 90109-12034 |
SV21,VZV21 *12-1.25PX81.5-24 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-12159 |
SV21,VZV21 *12-1.25PX81.5-24 |
2 | ||
| 90105-14036 |
SV21,VZV21 *14-1.5PX248-30 |
2 | ||
| 90105-12132 |
SV21,VZV21 *12-1.25PX80-20 |
2 | ||
| 90109-12034 |
SV21,VZV21 *12-1.25PX81.5-24 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-12159 |
SV21,VZV21 *12-1.25PX81.5-24 |
2 | ||
| 90105-14036 |
SV21,VZV21 *14-1.5PX248-30 |
2 | ||
| 90105-12132 |
SV21,VZV21 *12-1.25PX80-20 |
2 | ||
| 90109-12034 |
SV21,VZV21 *12-1.25PX81.5-24 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-20060 |
SV21,VZV21 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48720-20050 |
SV21,VZV21 |
1 | ||
| 48730A - ARM ASSY, REAR SUSPENSION, NO.2 | ||||
| 48730-32020 |
SV21,VZV21..SED |
2 | ||
| 48750 - SUPPORT ASSY, REAR SUSPENSION | ||||
| 48750-32040 |
SV21,VZV21 |
2 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-08122 |
SV2#,VZV21 |
6 | ||
| 48753 - COVER, REAR SUSPENSION SUPPORT | ||||
| 48753-16010 |
SV2#,VZV21 |
2 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-32020 |
SV21,VZV21 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
SV2#,VZV21 |
4 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
SV2#,VZV21 |
4 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
SV2#,VZV21 BODY SIDE(TYPE 1) |
2 | ||
| 90179-12062 |
SV2#,VZV21 CARRIER SIDE |
2 | ||
| 90179-12065 |
SV21,VZV21 BODY SIDE(TYPE 2) |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
SV2#,VZV21 BODY SIDE(TYPE 1) |
2 | ||
| 90179-12062 |
SV2#,VZV21 CARRIER SIDE |
2 | ||
| 90179-12065 |
SV21,VZV21 BODY SIDE(TYPE 2) |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
SV2#,VZV21 BODY SIDE(TYPE 1) |
2 | ||
| 90179-12062 |
SV2#,VZV21 CARRIER SIDE |
2 | ||
| 90179-12065 |
SV21,VZV21 BODY SIDE(TYPE 2) |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12063 |
SV2#,VZV21 BODY SIDE(TYPE 1) |
2 | ||
| 90179-12062 |
SV2#,VZV21 CARRIER SIDE |
2 | ||
| 90179-12065 |
SV21,VZV21 BODY SIDE(TYPE 2) |
2 | ||
| Common parts | ||||
| 91615-60820 | ||||
| 94182-11400 | ||||
