SV21L-UEMBKK (1988)
Toyota Camry (Jpp)
ILLUST NO. 3 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-32790 |
SV2#,VZV21..DX,STD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-32690 |
SV2#..SED..(DX,STD) MATSUSHITA |
1 | ||
| 84652-32700 |
SV2#..SED..(DX,STD) TOKAIRIKA |
1 | ||
| Common parts | ||||
| 82711-32690 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-15012 | ||||

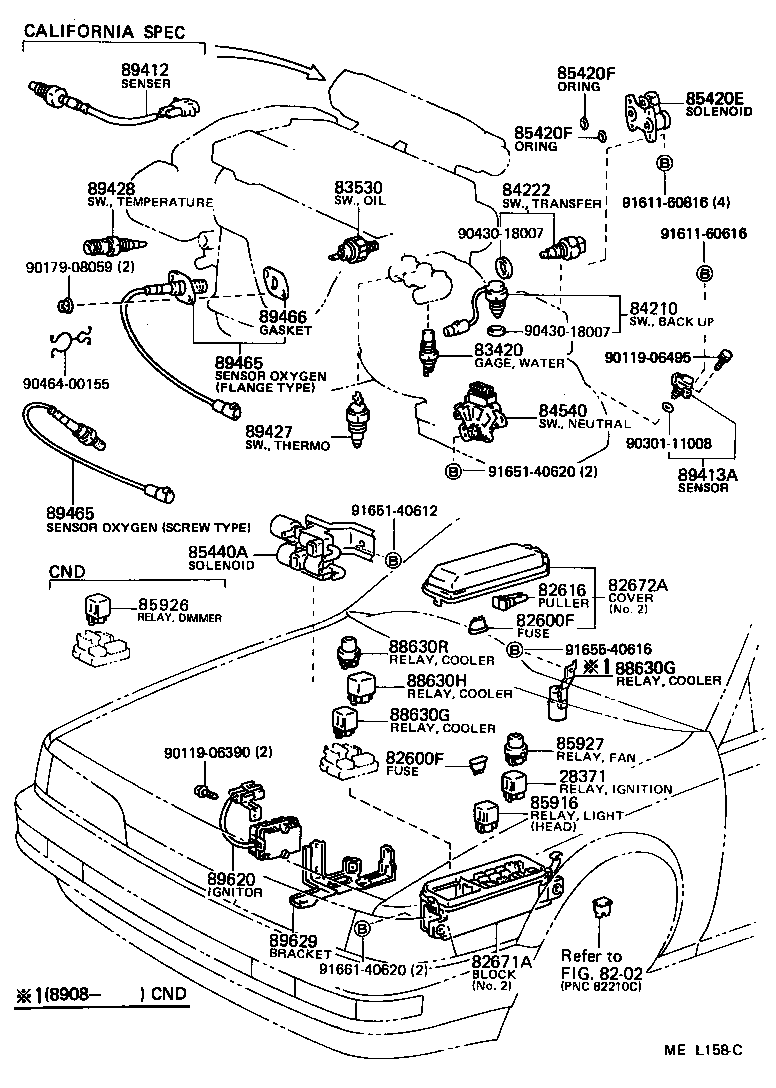

ILLUST NO. 1 OF 5(8808- )SV2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
3SFE,2VZFE..SV2#,VZV21 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
SV2#,VZV21 15A |
5 | ||
| 90982-09002 |
SV21..STD..CND 10A |
1 | ||
| 90982-09004 |
VZV21;SV25..LE;SV21..USA;SV25..DX..USA;SV21..(LE,STD)..CND 20A,YELLOW |
3 | ||
| 90982-09004 |
SV2#,VZV21 20A,YELLOW |
3 | ||
| 90982-09005 |
SV2#,VZV21 7.5A |
4 | ||
| 90982-09005 |
SV2#,VZV21 7.5A |
2 | ||
| 90982-09003 |
SV2#,VZV21 15A |
3 | ||
| 90982-09004 |
SV2#,VZV21 20A,YELLOW |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
SV2#,VZV21 15A |
5 | ||
| 90982-09002 |
SV21..STD..CND 10A |
1 | ||
| 90982-09004 |
VZV21;SV25..LE;SV21..USA;SV25..DX..USA;SV21..(LE,STD)..CND 20A,YELLOW |
3 | ||
| 90982-09004 |
SV2#,VZV21 20A,YELLOW |
3 | ||
| 90982-09005 |
SV2#,VZV21 7.5A |
4 | ||
| 90982-09005 |
SV2#,VZV21 7.5A |
2 | ||
| 90982-09003 |
SV2#,VZV21 15A |
3 | ||
| 90982-09004 |
SV2#,VZV21 20A,YELLOW |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
SV2#,VZV21 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20030 |
SV2#,VZV21..DX,STD |
1 | ||
| 82671-32030 |
SV2#,VZV21 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32160 |
SV2#,VZV21 |
1 | ||
| 82672-32200 |
SV2#,VZV21 |
1 | ||
| 82672-32050 |
SV2#,VZV21 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
SV2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
SV2#,VZV21 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
SV2#,VZV21..5F |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
SV2#,VZV21 MARUKO,TAIL LAMP |
1 | ||
| 90987-02006 |
SV2#,VZV21 HEAD LAMP |
1 | ||
| 90987-02004 |
SV2#,VZV21 NIPPONDENSO,TAIL LAMP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
SV2# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 85926-30020 |
SV2#,VZV21 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 85926-30020 |
SV2#,VZV21 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 88630-32010 |
SV2#,VZV21 |
1 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 90987-02004 |
SV2#,VZV21 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20060 |
SV2# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39145 |
SV21 FLANG TYPE |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39145 |
SV21 FLANG TYPE |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
SV2#,VZV21 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-32010 |
SV2# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-32040 |
SV2# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06495 | ||||
| 90179-08059 | ||||
| 90301-11008 | ||||
| 90430-18007 | ||||
| 90464-00155 | ||||
| 91611-60616 | ||||
| 91611-60816 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 91661-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-32010 |
SV2#,VZV21 |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20011 |
SV2#,VZV21 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-32090 |
SV2#,VZV21 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
SV2#,VZV21 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-32160 |
SV2#,VZV21 W(CRUISE CONTROL) |
1 | ||
| 84332-32180 |
SV2#,VZV21 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-32031 |
SV2#,VZV21 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-32050 |
SV2#,VZV21..DX,STD |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-32080 |
SV2#,VZV21..DX,STD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 81850-32160 |
SV2#,VZV21..DX,STD 12V 1.2W GREEN |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-32150 |
SV2#,VZV21 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-32061 |
SV2#,VZV21 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
SV2#,VZV21 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
SV2#,VZV21 14V 1.4W |
2 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
SV2#,VZV21 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-32010 |
SV2#,VZV21 |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93567-55016 | ||||
ILLUST NO. 4 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
3SFE,2VZFE..SV2#,VZV21..5F |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
SV2#,VZV21 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
SV2#,VZV21 15A |
5 | ||
| 90982-09002 |
SV21..STD..CND 10A |
1 | ||
| 90982-09004 |
VZV21;SV25..LE;SV21..USA;SV25..DX..USA;SV21..(LE,STD)..CND 20A,YELLOW |
3 | ||
| 90982-09004 |
SV2#,VZV21 20A,YELLOW |
3 | ||
| 90982-09005 |
SV2#,VZV21 7.5A |
4 | ||
| 90982-09005 |
SV2#,VZV21 7.5A |
2 | ||
| 90982-09003 |
SV2#,VZV21 15A |
3 | ||
| 90982-09004 |
SV2#,VZV21 20A,YELLOW |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
SV2#,VZV21 15A |
5 | ||
| 90982-09002 |
SV21..STD..CND 10A |
1 | ||
| 90982-09004 |
VZV21;SV25..LE;SV21..USA;SV25..DX..USA;SV21..(LE,STD)..CND 20A,YELLOW |
3 | ||
| 90982-09004 |
SV2#,VZV21 20A,YELLOW |
3 | ||
| 90982-09005 |
SV2#,VZV21 7.5A |
4 | ||
| 90982-09005 |
SV2#,VZV21 7.5A |
2 | ||
| 90982-09003 |
SV2#,VZV21 15A |
3 | ||
| 90982-09004 |
SV2#,VZV21 20A,YELLOW |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
SV2#,VZV21 15A |
5 | ||
| 90982-09002 |
SV21..STD..CND 10A |
1 | ||
| 90982-09004 |
VZV21;SV25..LE;SV21..USA;SV25..DX..USA;SV21..(LE,STD)..CND 20A,YELLOW |
3 | ||
| 90982-09004 |
SV2#,VZV21 20A,YELLOW |
3 | ||
| 90982-09005 |
SV2#,VZV21 7.5A |
4 | ||
| 90982-09005 |
SV2#,VZV21 7.5A |
2 | ||
| 90982-09003 |
SV2#,VZV21 15A |
3 | ||
| 90982-09004 |
SV2#,VZV21 20A,YELLOW |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20020 |
SV2#,VZV21 40A |
1 | ||
| 82650-20011 |
VZV21..CND;SV21..WG..LE..CND;SV2#..SED..(LE,STD);VZV21..SED..LE..USA 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20020 |
SV2#,VZV21 40A |
1 | ||
| 82650-20011 |
VZV21..CND;SV21..WG..LE..CND;SV2#..SED..(LE,STD);VZV21..SED..LE..USA 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20020 |
SV2#,VZV21 40A |
1 | ||
| 82650-20011 |
VZV21..CND;SV21..WG..LE..CND;SV2#..SED..(LE,STD);VZV21..SED..LE..USA 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20020 |
SV2#,VZV21 40A |
1 | ||
| 82650-20011 |
VZV21..CND;SV21..WG..LE..CND;SV2#..SED..(LE,STD);VZV21..SED..LE..USA 30A |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-20030 |
SV2#,VZV21..DX,STD |
1 | ||
| 82671-32030 |
SV2#,VZV21 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32160 |
SV2#,VZV21 |
1 | ||
| 82672-32200 |
SV2#,VZV21 |
1 | ||
| 82672-32050 |
SV2#,VZV21 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-32160 |
SV2#,VZV21 |
1 | ||
| 82672-32200 |
SV2#,VZV21 |
1 | ||
| 82672-32050 |
SV2#,VZV21 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
SV2#,VZV21 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
SV2#,VZV21 NIPPONDENSO |
1 | ||
| 90987-02002 |
SV2#,VZV21 MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
SV2#,VZV21 MARUKO,TAIL LAMP |
1 | ||
| 90987-02006 |
SV2#,VZV21 HEAD LAMP |
1 | ||
| 90987-02004 |
SV2#,VZV21 NIPPONDENSO,TAIL LAMP |
1 | ||
| 85991 - RELAY, SEAT BELT WARNING | ||||
| 85991-32021 |
SV2#,VZV21..CND |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-32021 |
SV2#,VZV21..CND |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
SV2#,VZV21 MARUKO |
1 | ||
| 90987-02004 |
SV2#,VZV21 NIPPONDENSO |
1 | ||
| Common parts | ||||
| 91651-40614 | ||||
| 93560-55014 | ||||
| 93567-55014 | ||||
ILLUST NO. 5 OF 5(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39785 |
SV21,VZV21 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
SV21,VZV21 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32020 |
SV2#,VZV21 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-24010 |
SV2#,VZV21 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20110 |
SV2#,VZV21..SED |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22100 |
SV2#,VZV21 W(CRUISE CONTROL) |
1 | ||
| 84340-30030 |
SV2#,VZV21 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-32020 |
SV2#,VZV21..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
SV2#,VZV21 |
1 | ||
| Common parts | ||||
| 82711-3H140 | ||||
| 90119-06390 | ||||
| 90168-40006 | ||||
| 90463-12570 | ||||
| 91651-60610 | ||||
| 93315-14012 | ||||
| 93315-15010 | ||||
| 93381-15010 | ||||
| 93540-54012 | ||||
| 93567-15012 | ||||
| 94120-41000 | ||||
