SV21L-UEMBKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

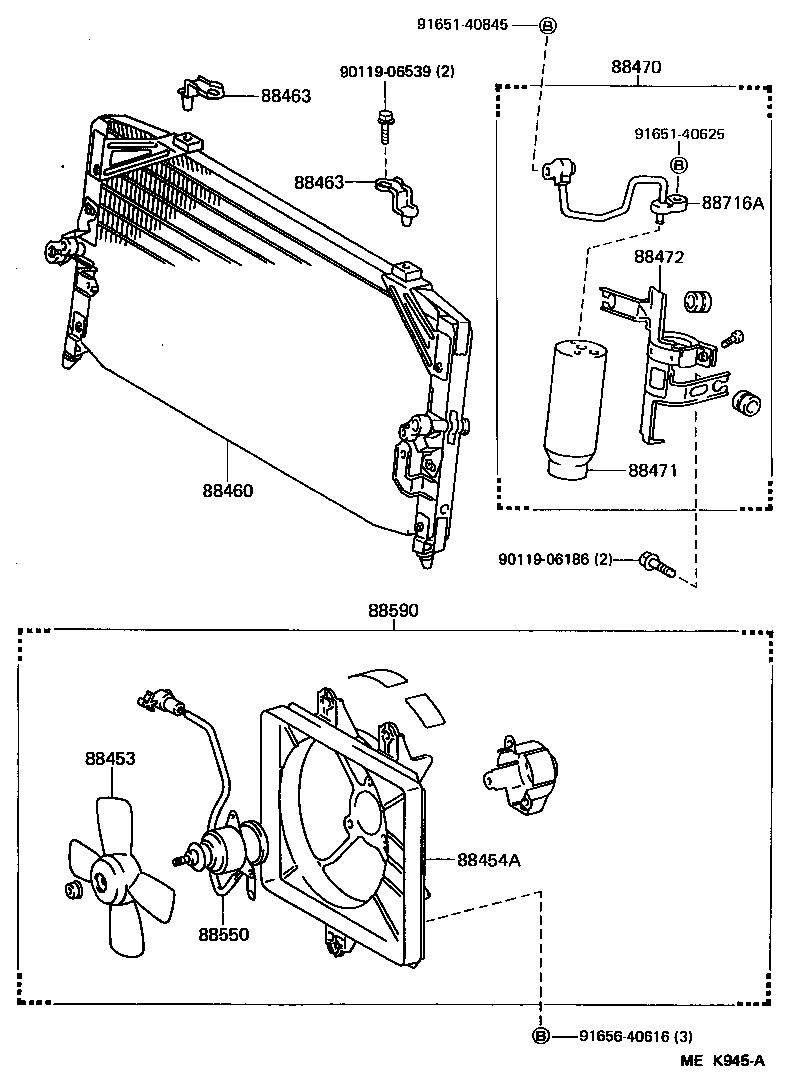

ILLUST NO. 1 OF 2(8808- )SV2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-32030 |
SV2# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-32041 |
SV2# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-32090 |
SV2#;VZV21..DX |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-32021 |
SV2#,VZV21 |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-32021 |
SV2#,VZV21 |
2 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-32010 |
SV2#,VZV21 |
1 | ||
| 88470-32020 |
SV2#,VZV21 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-10030 |
SV2#,VZV21 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-32020 |
SV2#,VZV21 |
1 | ||
| 88473-32030 |
SV2#,VZV21 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-32070 |
SV2# |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-32081 |
SV2# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-32230 |
SV2#,VZV21 |
1 | ||
| Common parts | ||||
| 90119-06186 | ||||
| 90119-06539 | ||||
| 91651-40625 | ||||
| 91651-40845 | ||||
| 91656-40616 | ||||

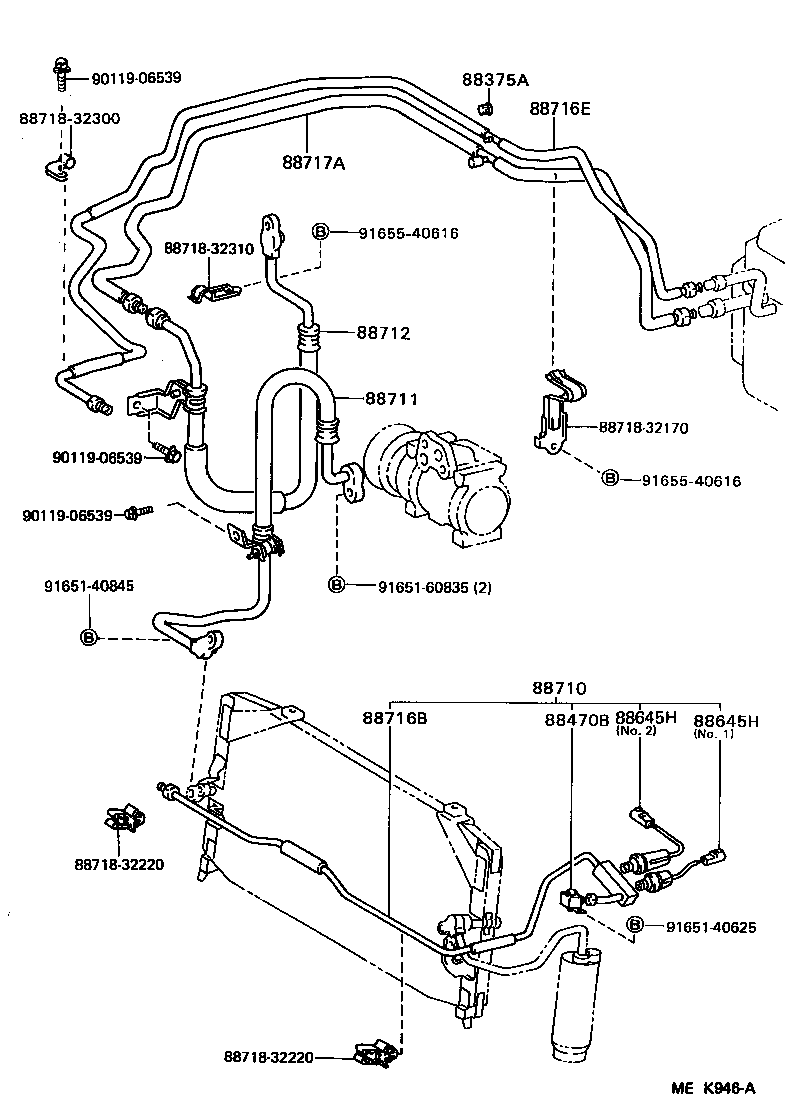

ILLUST NO. 2 OF 2(8808- )SV2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
SV2#,VZV21 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
SV2#,VZV21 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32040 |
SV2#,VZV21 NO.1 |
1 | ||
| 88645-32050 |
SV2#,VZV21 NO.2 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-32040 |
SV2#,VZV21 NO.1 |
1 | ||
| 88645-32050 |
SV2#,VZV21 NO.2 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-32080 |
SV2#,VZV21 |
1 | ||
| 88710-32060 |
SV2#,VZV21 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-32060 |
SV2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-32180 |
SV2# |
1 | ||
| 88712-32181 |
SV2# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-32340 |
SV2#,VZV21 |
1 | ||
| 88716-32350 |
SV2#,VZV21 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-32330 |
SV2#,VZV21 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-32231 |
SV2#,VZV21 |
1 | ||
| 88717-32230 |
SV2# |
1 | ||
| Common parts | ||||
| 88718-32170 | ||||
| 88718-32220 | ||||
| 88718-32300 | ||||
| 88718-32310 | ||||
| 90119-06539 | ||||
| 91651-40625 | ||||
| 91651-40845 | ||||
| 91651-60835 | ||||
| 91655-40616 | ||||
