SV21L-UEMBKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

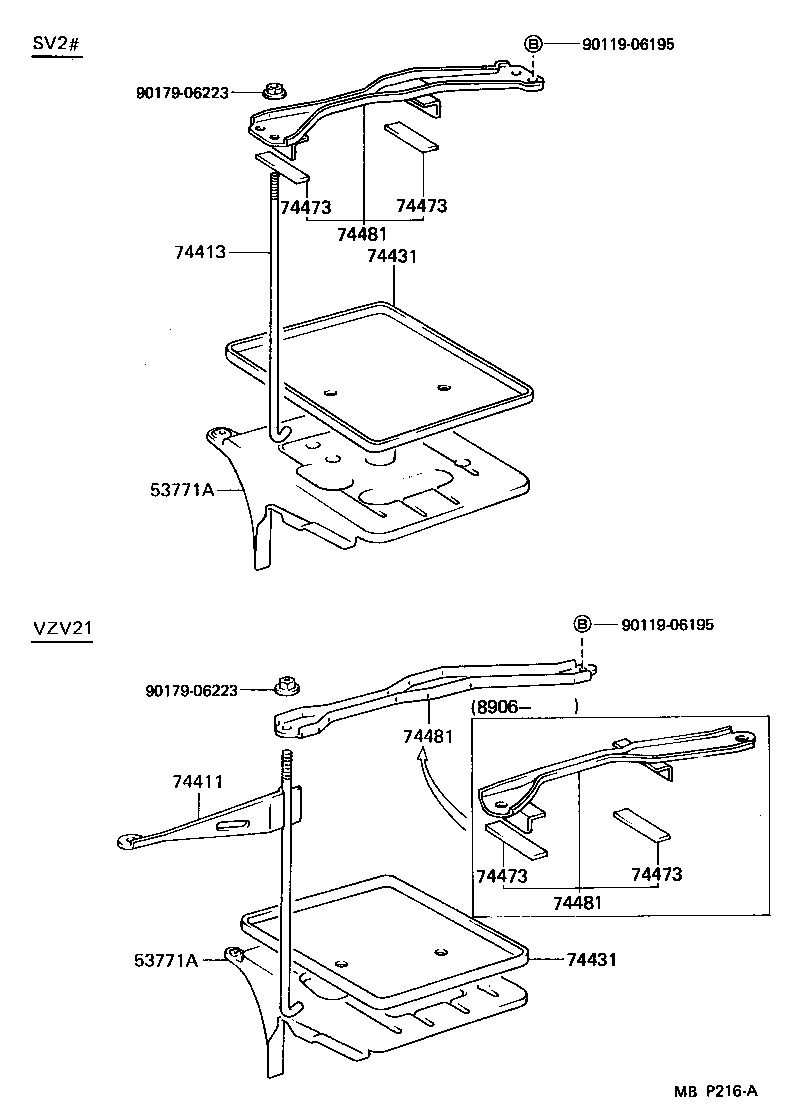

diagram 53771A 53771A 74411 74413 74431 74431 74473 74473 74473 74473 74481 74481 74481 9011906195 9011906195 9017906223 9017906223
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53771-32020

SV2#,VZV21

 1
53771A - SUPPORT, BATTERY CARRIER
53771-32020

SV2#,VZV21

 1
74413 - BOLT, BATTERY CLAMP
74451-32010

SV2#

 1
74431 - TRAY, BATTERY
74431-14030

SV2#,VZV21

 1
74431 - TRAY, BATTERY
74431-14030

SV2#,VZV21

 1
74473 - SPACER, BATTERY
74473-22010

SV2#,VZV21

 2
74473 - SPACER, BATTERY
74473-22010

SV2#,VZV21

 2
74473 - SPACER, BATTERY
74473-22010

SV2#,VZV21

 2
74473 - SPACER, BATTERY
74473-22010

SV2#,VZV21

 2
74481 - CLAMP, BATTERY HOLD DOWN
74404-32080

SV2#,VZV21

 1
74404-32050

SV2#,VZV21

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-32080

SV2#,VZV21

 1
74404-32050

SV2#,VZV21

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-32080

SV2#,VZV21

 1
74404-32050

SV2#,VZV21

 1
Common parts
90119-06195
90179-06223
