SV21L-UEMBKA (1988)

Toyota Camry (Jpp)

Production Aug 1988 - Jun 1991
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SED

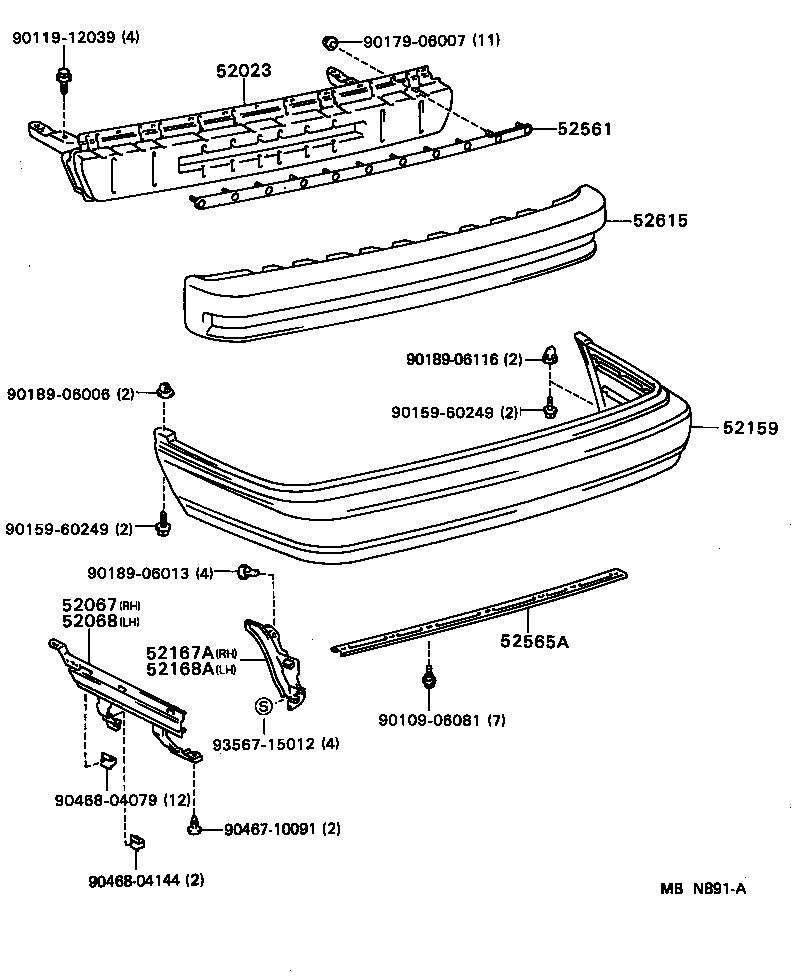

Click highlighted areas on diagram

diagram 52023 52067 52068 52159 52167A 52168A 52561 52565A 52615 9010906081 9011912039 9015960249 9015960249 9017906007 9018906006 9018906013 9018906116 9046710091 9046804079 9046804144 9356715012
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-32060

SV21,VZV21..SED

 1
52067 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH
52067-32040

SV2#,VZV21..SED

 1
52068 - SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH
52068-32040

SV2#,VZV21..SED

 1
52159 - COVER, REAR BUMPER
52159-32160

SV2#,VZV21..SED..(DX,STD)

 1
52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH
52167-32020

SV2#,VZV21..SED

 1
52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH
52168-32020

SV2#,VZV21..SED

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-32030

SV2#,VZV21

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-32030

SV2#,VZV21

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-32060

SV2#,VZV21

 1
Common parts
90109-06081
90119-12039
90159-60249
90179-06007
90189-06006
90189-06013
90189-06116
90467-10091
90468-04079
90468-04144
93567-15012
