SV21L-UEMBKA (1988)
Toyota Camry (Jpp)
Production
Aug 1988
-
Jun 1991
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

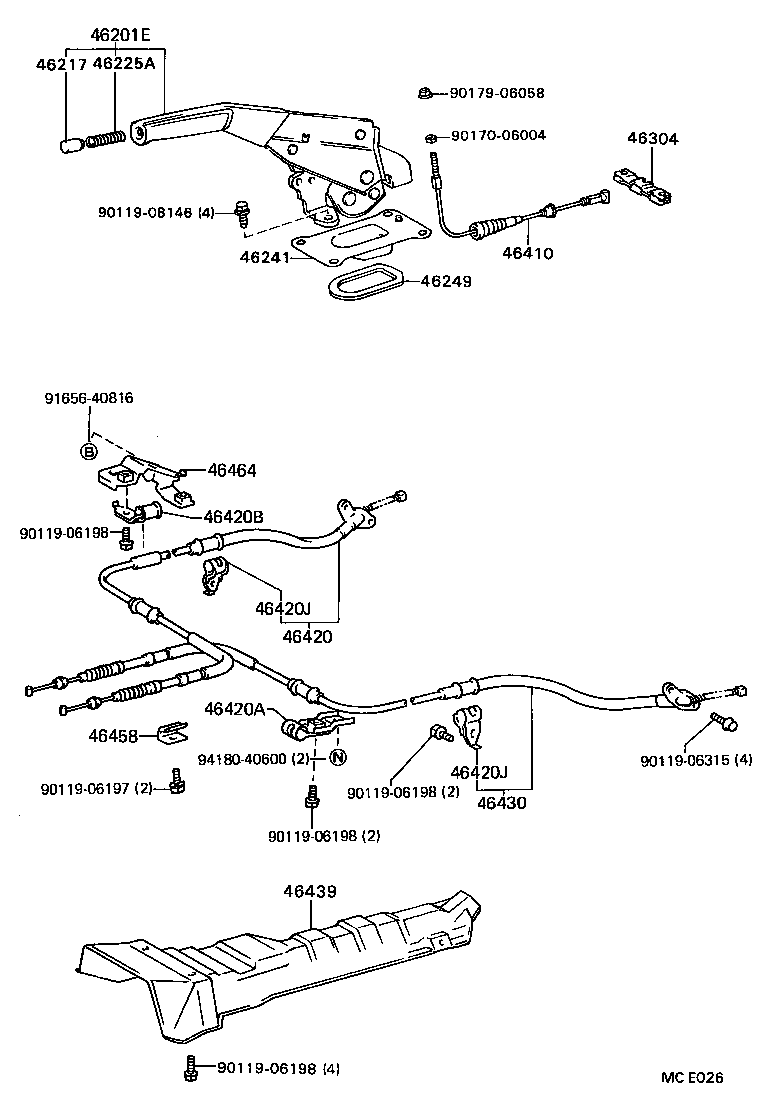

ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-3209103 |
SV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 46201-3209104 |
SV21 DARK BLUE,TRIM8# |
1 | ||
| 46201-3209102 |
SV21..USA MAROON,TRIM3# |
1 | ||
| 46201-3209106 |
SV21 BROWN,TRIM4# |
1 | ||
| 46201-3209102 |
SV21..STD MAROON |
1 | ||
| 46201-3209102 |
SV21..(DX,STD)..USA MAROON |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-12020D0 |
SV2#,VZV21..USA MAROON,TRIM3# |
1 | ||
| 46217-12020E1 |
SV2#,VZV21 BROWN,TRIM4# |
1 | ||
| 46217-12020B0 |
SV2#,VZV21 MEDIUM GRAY,TRIM1# |
1 | ||
| 46217-12020J0 |
SV2#,VZV21 DARK BLUE,TRIM8# |
1 | ||
| 46217-12020B0 |
SV21..STD MEDIUM GRAY |
1 | ||
| 46217-12020B0 |
SV21..DX,STD MEDIUM GRAY |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
SV2#,VZV21 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-32010 |
SV2# |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32010 |
SV2#,VZV21 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-32010 |
SV21,VZV21 |
1 | ||
| 46341-32020 |
SV2#,VZV21 |
1 | ||
| 46341-32010 |
SV2#,VZV21 |
1 | ||
| 46341-32020 |
SV21,VZV21 |
2 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-32030 |
SV21 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-39065 |
SV21 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01331 |
SV21,VZV21 |
2 | ||
| 90949-01605 |
SV21,VZV21 |
4 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01332 |
SV21,VZV21 |
1 | ||
| 90949-01606 |
SV21,VZV21 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01604 |
SV21,VZV21 |
4 | ||
| 90949-01330 |
SV21,VZV21 |
2 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01604 |
SV21,VZV21 |
4 | ||
| 90949-01330 |
SV21,VZV21 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-39065 |
SV21 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
SV2#,VZV21 |
2 | ||
| 46458-50010 |
SV21,VZV21 |
4 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-32020 |
SV21,VZV21 |
2 | ||
| 46464-32010 |
SV21,VZV21 |
1 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 91656-40816 | ||||
| 94180-40600 | ||||
