SXV20R-AEPNKW (1996)
Toyota Camry
(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

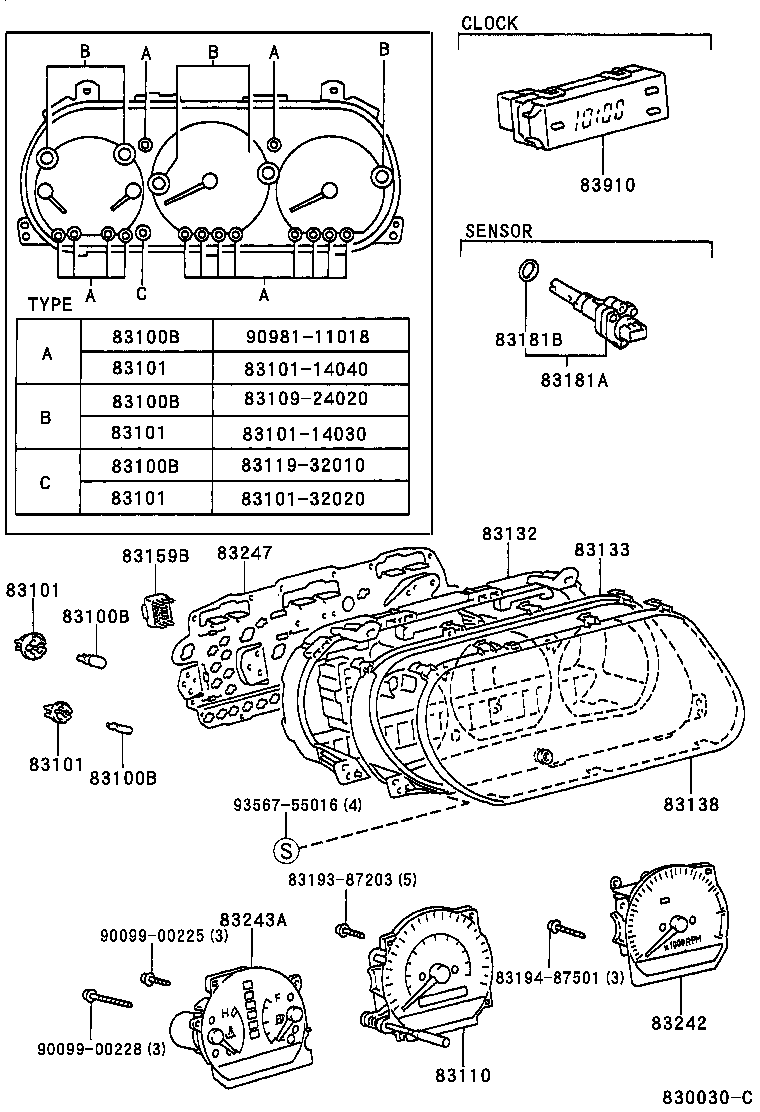

| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
MCV20,SXV20 12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83119-32010 |
MCV20,SXV20 14V 3.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV20,SXV20..ATM 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
21 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
MCV20,SXV20 12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83119-32010 |
MCV20,SXV20 14V 3.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV20,SXV20..ATM 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
21 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
MCV20,SXV20 12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83119-32010 |
MCV20,SXV20 14V 3.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV20,SXV20..ATM 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
21 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
MCV20,SXV20 12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83119-32010 |
MCV20,SXV20 14V 3.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV20,SXV20..ATM 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
21 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
MCV20,SXV20 12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83119-32010 |
MCV20,SXV20 14V 3.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV20,SXV20..ATM 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
21 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV20,SXV20 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
MCV20,SXV20 TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-14030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-14040 |
MCV20,SXV20..ATM TYPE A:REFER TO ILLUSTRATION |
21 | ||
| 83101-32020 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV20,SXV20 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
MCV20,SXV20 TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-14030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-14040 |
MCV20,SXV20..ATM TYPE A:REFER TO ILLUSTRATION |
21 | ||
| 83101-32020 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV20,SXV20 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
MCV20,SXV20 TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-14030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-14040 |
MCV20,SXV20..ATM TYPE A:REFER TO ILLUSTRATION |
21 | ||
| 83101-32020 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV20,SXV20 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
MCV20,SXV20 TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-14030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-14040 |
MCV20,SXV20..ATM TYPE A:REFER TO ILLUSTRATION |
21 | ||
| 83101-32020 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32020 |
MCV20,SXV20 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
MCV20,SXV20 TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-14030 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE B:REFER TO ILLUSTRATION |
5 | ||
| 83101-14040 |
MCV20,SXV20..ATM TYPE A:REFER TO ILLUSTRATION |
21 | ||
| 83101-32020 |
SXV20..LHD..MTM;MCV20,SXV20..ATM TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-33010 |
SXV20..ATM;SXV20..LHD..MTM 220KM/H |
1 | ||
| 83220-33020 |
SXV20..RHD 140MPH(220KM/H) |
1 | ||
| 83220-33011 |
SXV20..ATM;SXV20..LHD..MTM 220KM/H |
1 | ||
| 83220-33021 |
SXV20..RHD 140MPH(220KM/H) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-33030 |
MCV20,SXV20..ATM |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-33030 |
MCV20,SXV20 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-33030 |
MCV20,SXV20 |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22370 |
MCV20,SXV20 |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12040 |
MCV20,SXV20..ATM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
MCV20,SXV20 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-33030 |
SXV20 W/O(THEFT-DETERRENT SYSTEM) |
1 | ||
| 83881-33030 |
SXV20..ATM;SXV20..LHD..MTM W/O(THEFT-DETERRENT SYSTEM) |
1 | ||
| 83881-33400 |
SXV20 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-33030 |
MCV20,SXV20..ATM |
1 | ||
| 83882-33031 |
MCV20,SXV20..ATM |
1 | ||
| 83882-33051 |
SXV20..RHD..ATM W/O(THEFT-DETERRENT SYSTEM) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-33420 |
SXV20..ATM |
1 | ||
| 83861-33030 |
SXV20..ATM W/O(THEFT-DETERRENT SYSTEM) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-33030 |
MCV20,SXV20 |
1 | ||
| Common parts | ||||
| 83193-87203 | ||||
| 83194-87501 | ||||
| 90099-00225 | ||||
| 90099-00228 | ||||
| 93567-55016 | ||||
