SXV20R-AEPNKW (1996)

Toyota Camry

Production Aug 1996 - Sep 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

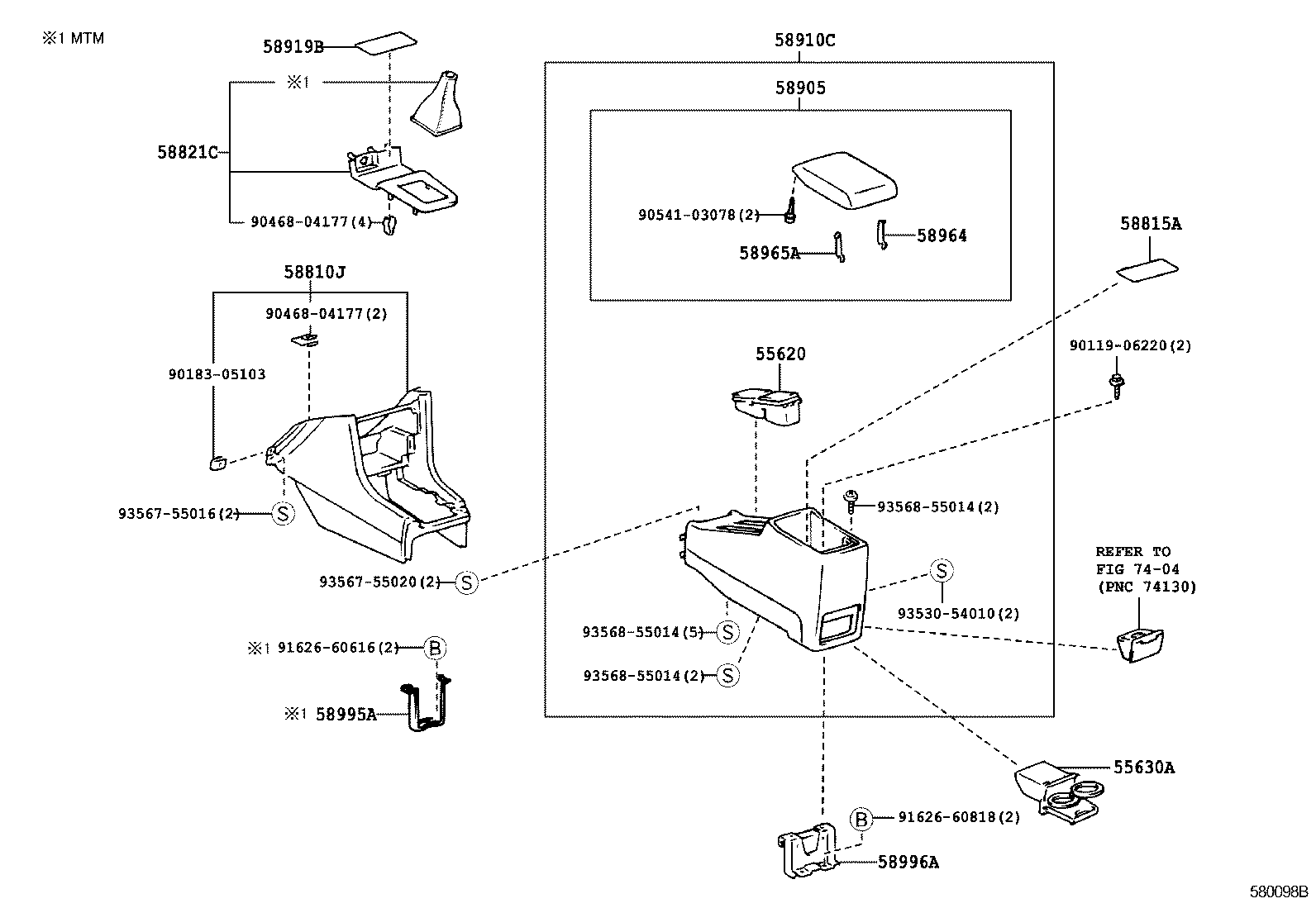

Click highlighted areas on diagram

diagram 55620 55630A 58810J 58815A 58821C 58905 58910C 58919B 58964 58965A 58995A 58996A 7404 9011906220 9018305103 9046804177 9046804177 9054103078 9162660616 9162660818 9353054010 9356755016 9356755020 9356855014 9356855014 9356855014
Part # Description Qty Price
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-33060E0

MCV20,SXV20..RHD

OAK,TRIM4#

 1
55620-33060B0

MCV20,SXV20..RHD

BLUISH GRAY,TRIM1#

 1
55620-33060G0

MCV20,SXV20..RHD

DK.SAGE,TRIM6#

 1
55630A - HOLDER, REAR CONSOLE BOX, CUP
55630-33010B0

MCV20,SXV20

BLUISH GRAY,TRIM1#

 1
55630-33010G0

MCV20,SXV20

DK.SAGE,TRIM6#

 1
55630-33010E0

MCV20,SXV20

OAK,TRIM4#

 1
58810J - BOX ASSY, CONSOLE
58810-33050B0

MCV20,SXV20..RHD

BLUISH GRAY,TRIM1#

 1
58810-33050G0

MCV20,SXV20..RHD

DK.SAGE,TRIM6#

 1
58810-33050E0

MCV20,SXV20..RHD

OAK,TRIM4#

 1
58815A - CARPET, CONSOLE BOX
58815-33060

MCV20,SXV20

 1
58821C - PANEL, CONSOLE, UPPER
58804-33230

MCV20,SXV20..ATM

 1
58804-33120

MCV20,SXV20..ATM

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-33090E0

MCV20,SXV20

OAK,TRIM4#

 1
58905-33090G0

MCV20,SXV20

DK.SAGE,TRIM6#

 1
58905-33090B0

MCV20,SXV20

BLUISH GRAY,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-33110B0

MCV20,SXV20..RHD

BLUISH GRAY,TRIM1#

 1
58910-33110E0

MCV20,SXV20..RHD

OAK,TRIM4#

 1
58910-33110G0

MCV20,SXV20..RHD

DK.SAGE,TRIM6#

 1
58919B - PLATE, CONSOLE BOX
58919-33020

MCV20,SXV20

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-16010

MCV20,SXV20

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-16010

MCV20,SXV20

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-33020

MCV20,SXV20

 1
Common parts
90119-06220
90183-05103
90468-04177
90541-03078
91626-60616
91626-60818
93530-54010
93567-55016
93567-55020
93568-55014
Linked diagrams
7404
