SXV20R-AEPNKW (1996)

Toyota Camry

Production Aug 1996 - Sep 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

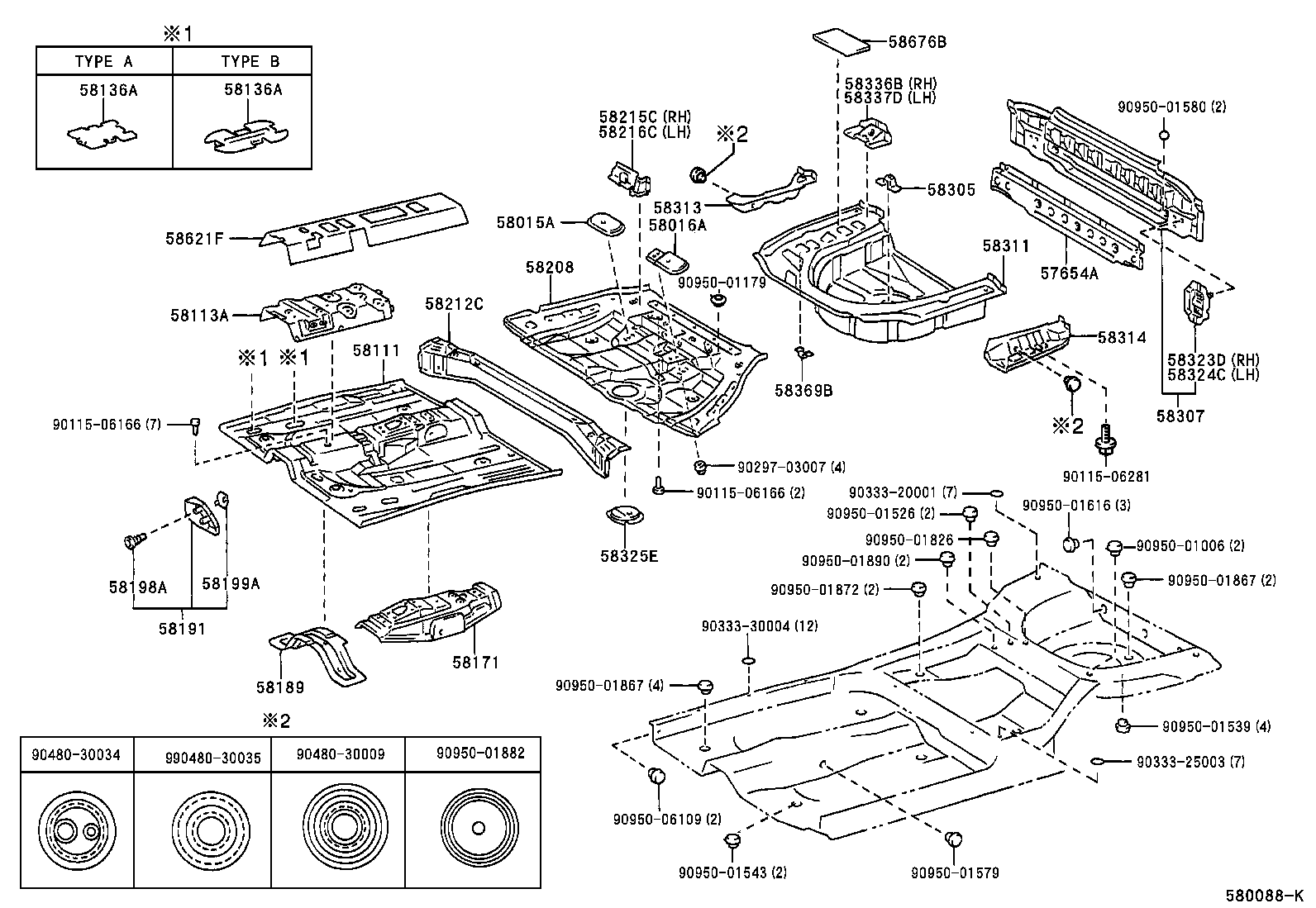

Click highlighted areas on diagram

diagram 57654A 58015A 58016A 58111 58113A 58136A 58136A 58171 58189 58191 58198A 58199A 58208 58212C 58215C 58216C 58305 58307 58311 58313 58314 58323D 58324C 58325E 58336B 58337D 58369B 58621F 58676B 9011506166 9011506166 9011506281 9029703007 9033320001 9033325003 9033330004 9048030009 9048030034 9048030035 9048030035 9095001006 9095001179 9095001526 9095001539 9095001543 9095001579 9095001580 9095001616 9095001826 9095001867 9095001867 9095001872 9095001882 9095001890 9095006109
Part # Description Qty Price
57654A - MEMBER, REAR FLOOR CROSS, NO.3
57654-33010

SXV20

 1
57654-33010

MCV20,SXV20

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-33020

MCV20,SXV20

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-33030

MCV20,SXV20

 1
58111 - PAN, FRONT FLOOR
58111-33030

MCV20,SXV20

 1
58113A - PANEL, FRONT FLOOR, CENTER
58013-33030

MCV20,SXV20

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-12020

MCV20,SXV20

TYPE A:REFER TO ILLUSTRATION

 2
58136-33010

MCV20,SXV20

TYPE B:REFER TO ILLUSTRATION

 2
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-12020

MCV20,SXV20

TYPE A:REFER TO ILLUSTRATION

 2
58136-33010

MCV20,SXV20

TYPE B:REFER TO ILLUSTRATION

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-33020

MCV20,SXV20

 1
58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58189-33020

MCV20,SXV20

 1
58191 - FOOTREST, FRONT FLOOR
58191-33030

MCV20,SXV20..RHD

 1
58198A - CLIP, FOOTREST, NO.1
58198-33010

MCV20,SXV20

 2
58199A - CLIP, FOOTREST, NO.2
58199-33010

MCV20,SXV20..RHD

LOWER

 1
58199-33020

MCV20,SXV20..RHD

UPPER

 1
58208 - PAN, CENTER FLOOR
58211-33060

MCV20,SXV20

 1
58211-33090

MCV20,SXV20

 1
58211-33091

MCV20,SXV20

 1
58212C - PAN, CENTER FLOOR, FRONT
58212-33010

MCV20,SXV20

 1
58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58215-33020

MCV20,SXV20

 1
58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58216-33020

MCV20,SXV20

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-33010

MCV20,SXV20

 1
58351-33010

SXV20..LHD..MTM;MCV20,SXV20..RHD

 1
58351-33010

MCV20,SXV20

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-33070

MCV20,SXV20

 1
58311 - PAN, REAR FLOOR
58311-33030

MCV20,SXV20

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58305-33020

MCV20,SXV20

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-33021

MCV20,SXV20

 1
58314-33020

MCV20,SXV20

 1
58323D - REINFORCEMENT, REAR BUMPER ARM SUPPORT
58323-AA010

MCV20,SXV20

 1
58324C - REINFORCE, REAR BUMPER ARM SUPPORT, LH
58324-AA010

MCV20,SXV20

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-33020

MCV20,SXV20

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-33010

MCV20,SXV20

 1
58337D - REINFORCEMENT, REAR FLOOR PAN, LH
58337-33020

MCV20,SXV20

 1
58369B - BRACKET, FUEL TUBE, NO.3
58369-32010

MCV20,SXV20

 2
58621F - SILENCER, CENTER CONSOLE, NO.1
58621-33030

MCV20,SXV20

 1
58676B - PAD, REAR FLOOR SILENCER, NO.1 RH
58676-33010

MCV20,SXV20

 1
Common parts
90115-06166
90115-06281
90297-03007
90333-20001
90333-25003
90333-30004
90480-30009
90480-30034
90480-30035
90950-01006
90950-01179
90950-01526
90950-01539
90950-01543
90950-01579
90950-01580
90950-01616
90950-01826
90950-01867
90950-01872
90950-01882
90950-01890
90950-06109
